Shifting to N from R
WARNING: This page is about a different variant/trim than selected.

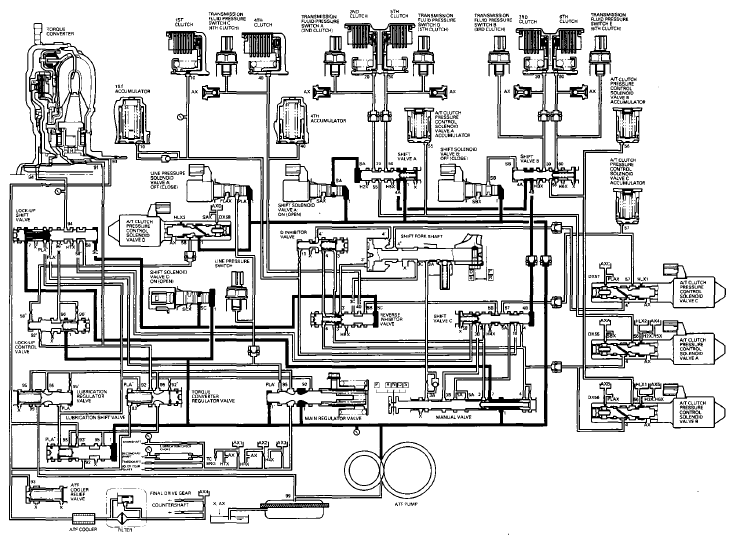

Line pressure (1) regulated by the main regulator valve flows to the shift solenoid valves. The PCM switches the shift solenoid valves ON and OFF. The conditions of the shift solenoid valves and the positions of the shift valves are as follows:
- Shift solenoid valve A is ON, and opens shift solenoid valve A pressure port (SA); shift valve A is moved to the right side by hydraulic pressure (SA) from shift solenoid valve A.
- When shifting to N from R, shift solenoid valve B is OFF, and closes shift solenoid valve B pressure port (SB); shift valve B remains on the left side under a spring force, and shift valve C is moved to the left side by hydraulic pressure (4B) that is applied from shift valve A through shift valve B.
- When shifting to N from R, shift solenoid valve C is ON, and opens shift solenoid valve C pressure port (SC); the reverse inhibitor valve is moved to the left side by hydraulic pressure (SC) from shift solenoid valve C.
- The manual valve covers the ports leading pressure to the clutches in N, and hydraulic pressure is not applied to the clutches.
NOTE:
When used, "left" or "right" indicates direction on the hydraulic circuit.
