Regulator Valve Body
WARNING: This page is about a different variant/trim than selected.

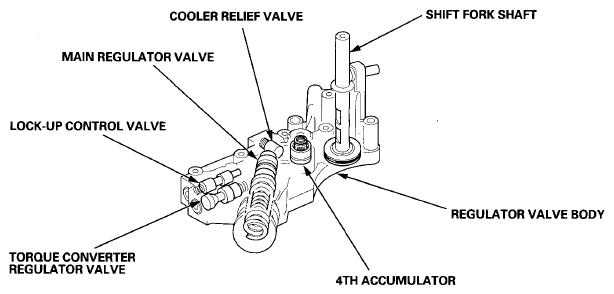

The regulator valve body is located on the main valve body. The regulator valve body contains the main regulator valve, the cooler relief valve, the torque converter regulator valve, the lock-up control valve, the shift fork shaft, and the 4th accumulator.
