Transmission Cutaway View

WARNING: This page is about a different variant/trim than selected.

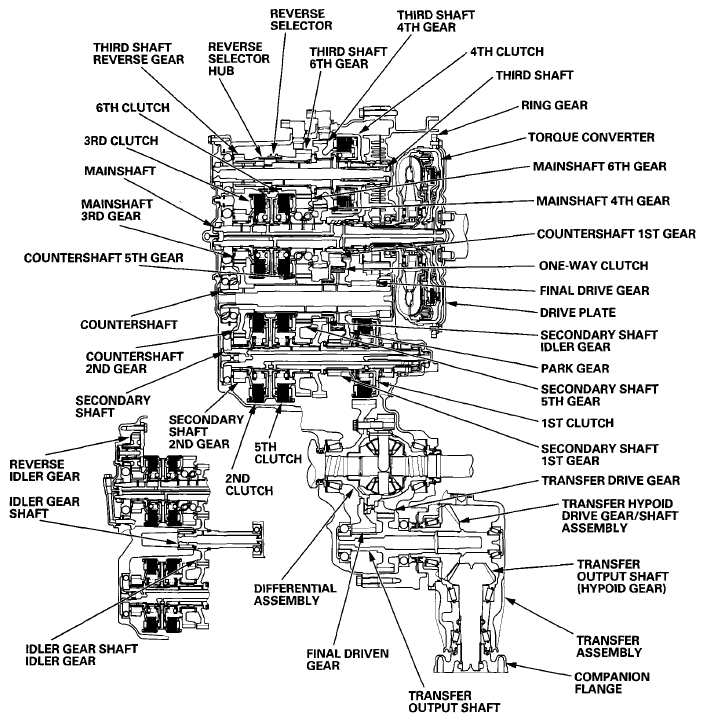

Fig 1: Transmission Cutaway View
G08066297Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: This illustration shows the SH-AWD transfer assembly that is not available on all models.
