Section 1 (Automatic Transmission)
>>
Special Tools
Special Tools
WARNING:
This page is about a different variant/trim than selected.

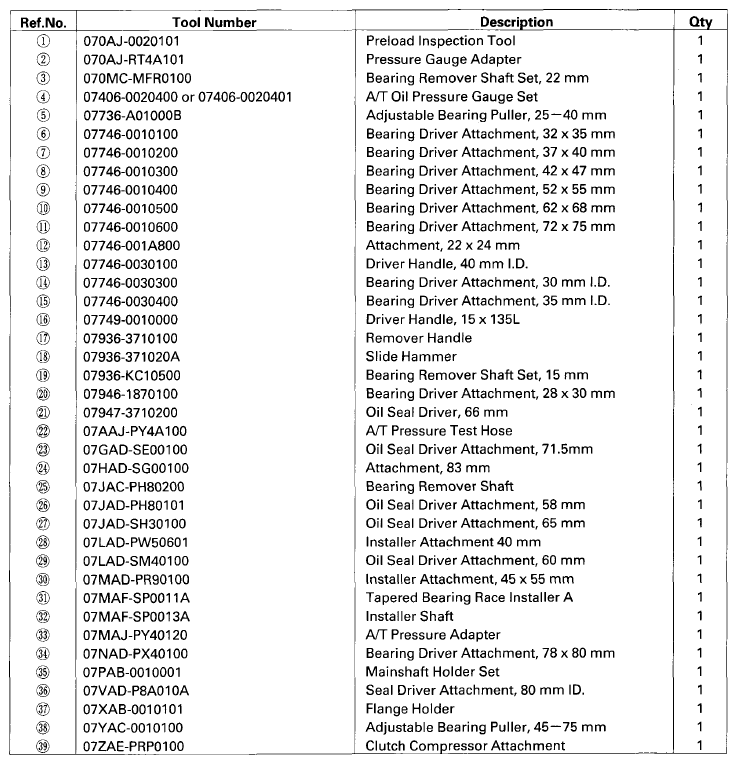

Fig 1: Automatic Transmission Special Tools Description Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

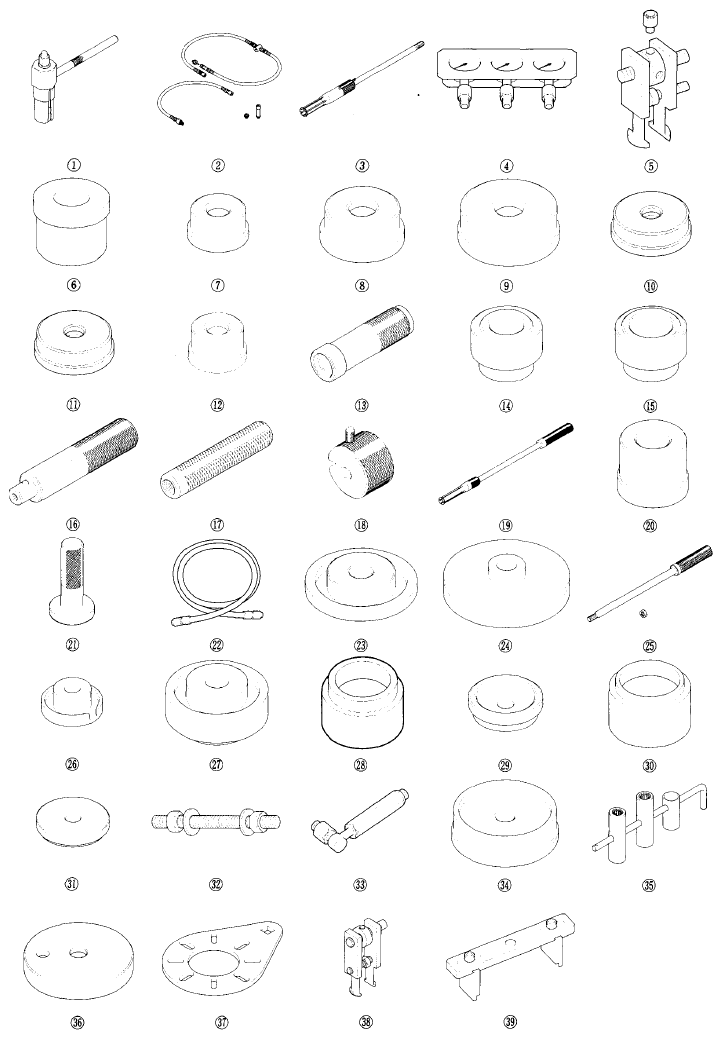

Fig 2: Identifying Automatic Transmission Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
