Idler Gear Shaft Installation Height Inspection/Adjustment
WARNING: This page is about a different variant/trim than selected.
- Install the idler gear shaft (A) in the torque converter housing, and install the 27.5 x 41 x 2.5 mm thrust needle bearing (B) and the 41.5 mm washer (C) on the idler gear shaft.
Idler Gear Shaft Installation Height:
Standard:
116.24 - 116.30 mm (4.5764 - 4.5787 in)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

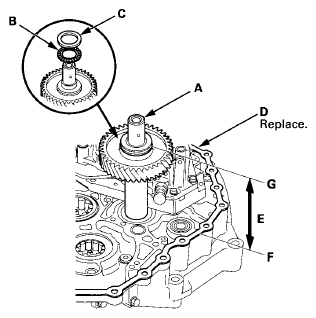

Idler Gear Shaft Cutaway View
- Install a new gasket (D) on the torque converter housing.
- Measure the installation height (E) of the idler gear shaft between the surface (F) of the gasket and the surface (G) of the 41.5 mm washer.
- If the measurement is out of the standard, remove the 41.5 mm washer and measure its thickness.
- Select and install a new 41.5 mm washer, then recheck the installation height.WASHER, 41.5 MM
No. Thickness A 1.26 mm (0.0496 in) B 1.30 mm (0.0512 in) C 1.34 mm (0.0528 in) D 1.38 mm (0.0543 in) E 1.42 mm (0.0559 in) F 1.46 mm (0.0575 in) G 1.50 mm (0.0591 in) H 1.54 mm (0.0606 in) I 1.58 mm (0.0622 in) J 1.62 mm (0.0638 in) K 1.66 mm (0.0654 in) L 1.70 mm (0.0669 in) M 1.74 mm (0.0685 in) N 1.78 mm (0.0701 in) O 1.82 mm (0.0717 in) P 1.86 mm (0.0732 in) Q 1.90 mm (0.0748 in) R 1.94 mm (0.0764 in) S 1.98 mm (0.0780 in) T 2.02 mm (0.0795 in) U 2.06 mm (0.0811 in)
