Without SH-AWD

WARNING: This page is about a different variant/trim than selected.

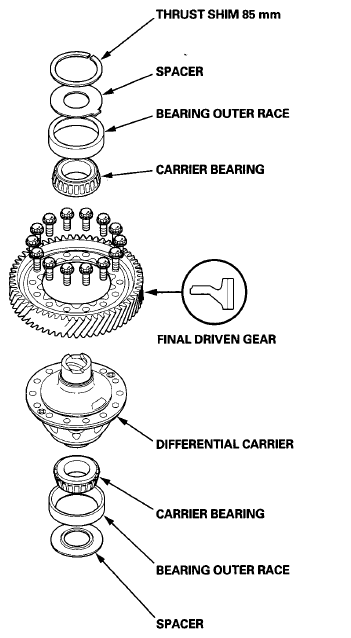

Fig 1: Identifying A/T Differential And Related Components (Without SH-AWD)
G08066857Courtesy of AMERICAN HONDA MOTOR CO., INC.
