Section 1 (Automatic Transmission)
>>
Component Location Index
>>
With SH-AWD
With SH-AWD
WARNING:
This page is about a different variant/trim than selected.

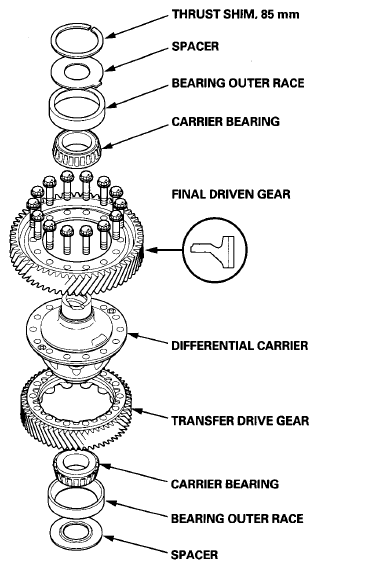

Fig 1: Identifying A/T Differential And Related Components (With SH-AWD)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
