TL SH-AWD, Standard Trans
>>
Repair and Diagnosis
>>
External Pages
>>
Different variant/trim
>>
Section 1 (Automatic Transmission)
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Fig 1: A/T Gear Position Indicator - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

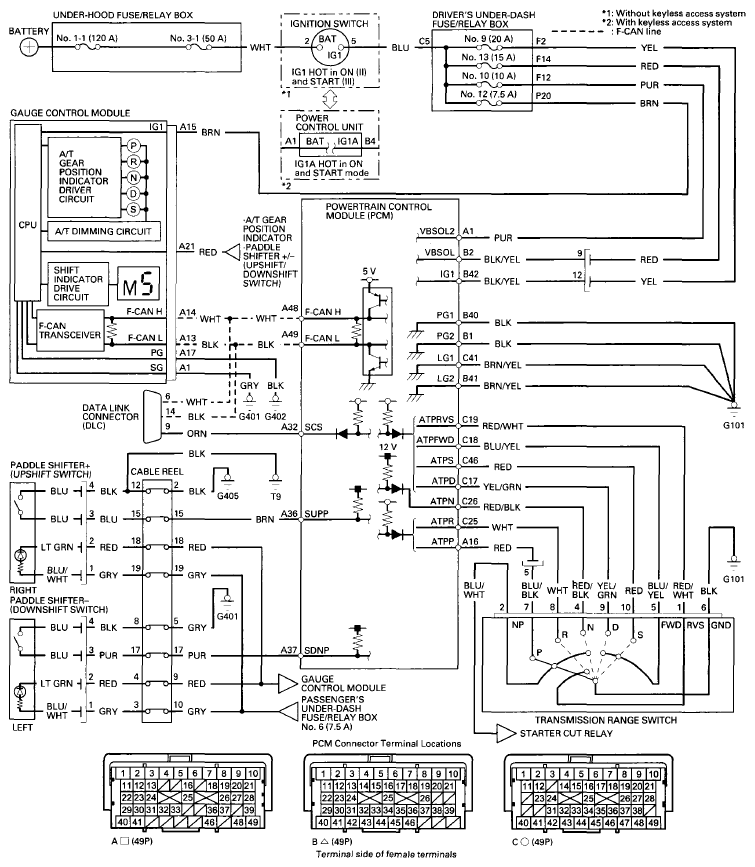

Fig 1: A/T Inter Lock System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
