Carrier Bearing Outer Race Replacement

Special Tools Required

• Driver Handle, 15 x 135L 07749-0010000
• Attachment, 83 mm 07HAD-SG00100

1. Remove the bearing outer race (A), the spacer (B), and the 85 mm thrust shim (C) from the transmission housing (D) by heating the transmission housing to about 212°F (100°C) with a heat gun (E). Do not heat the transmission housing more than 212°F (100°C).
   Fig 1: Removing Bearing Outer Race, Spacer And Thrust Shim From Transmission Housing By Heating With Heat Gun

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the 85 mm thrust shim (A) in the transmission housing (B).
   Fig 2: Identifying Thrust Shim, Transmission Housing, Spacer, Tab, Groove And Bearing Outer Race

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the spacer (C) by aligning the tab (D) with the groove (E), and install the bearing outer race (F) in the transmission housing.
4. Drive the outer race securely into the transmission housing using the 15 x 135L driver handle and the 83 mm attachment so there is no clearance between the outer race, the spacer, the 85 mm thrust shim, and the transmission housing.

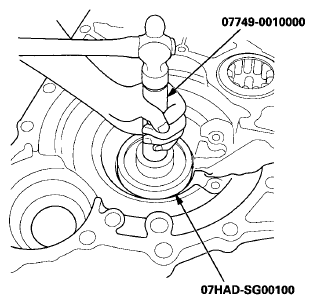

   Fig 3: Driving Outer Race Securely Into Transmission Housing Using Driver Handle And Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the bearing outer race (A) and the spacer (B) from the torque converter housing (C).
   Fig 4: Identifying Bearing Outer Race, Spacer, Tab And Groove

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install the spacer by aligning the tab (D) with the groove (E), and install a new bearing outer race in the torque converter housing.
7. Drive the bearing outer race securely in the torque converter housing using the 15 x 135L driver handle and the 83 mm attachment.
   Fig 5: Driving Bearing Outer Race Securely In Torque Converter Housing Using Driver Handle And Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
