VTEC Rocker Arm Test

Special Tools Required

• VTEC Air Stop Tool B 07AAJ-R70A200
• VCM Air Adapter 070AJ-001A101
• Air Pressure Regulator 07AAJ-PNAA101
• VTEC Air Stop Tool A 07AAJ-R70A100

1. Remove the six ignition coils and the six spark plugs, (see IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION )
2. Remove the cylinder head covers .
3. Rotate the crankshaft pulley clockwise. Make sure that the intake primary rocker arm (A) and the intake secondary rocker arm (B) are separated and that the intake primary rocker arm should move independently:
   • If the intake primary rocker arm and the intake secondary rocker arm move together, remove the intake primary rocker arm and the intake secondary rocker arm as an assembly, and check that the pistons in the rocker arms move smoothly. If any intake rocker arm needs replacing, replace the primary and secondary rocker arms as an assembly, then retest.
   • If the intake primary rocker arm and the intake secondary rocker arm move independently, go to step 4.

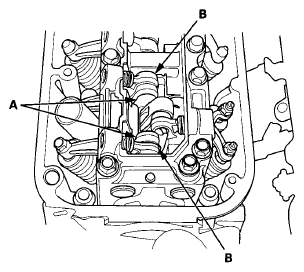

   Fig 1: Identifying Intake Primary And Secondary Rocker Arm

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Rotate the crankshaft pulley clockwise, and visually check all the exhaust primary rocker arms (A) and the exhaust secondary rocker arms (B) move independently:
   • If the exhaust primary rocker arm and the exhaust primary rocker arm move together, remove the exhaust primary rocker arm and the exhaust secondary rocker arm as an assembly, and check that the pistons in the rocker arms move smoothly. If any exhaust rocker arm needs replacing, replace the primary and secondary rocker arms as an assembly, then retest.
   • If the exhaust primary rocker arm and the exhaust secondary rocker arm move independently, go to step 5.
   Fig 2: Identifying Exhaust Primary And Secondary Rocker Arm

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Check that the air pressure on the shop air compressor gauge indicates over 981 kPa (10.00 kgf/cm² , 142.3 psi).
6. Inspect the valve clearance .
7. Remove the sealing bolts, then install VTEC air stop tool B (A) and the VCM air adapter (B) to the inspection hole, then connect the air pressure regulator (C) as shown.

   FRONT

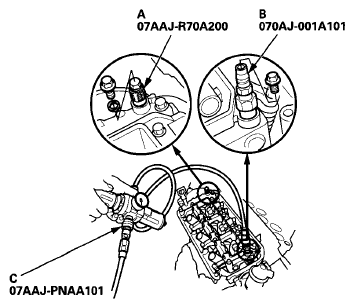

   Fig 3: Identifying Air Pressure Regulator Connection With VCM Air Adapter (Front)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Remove the sealing bolts, then install VTEC air stop tool A (A) and the VCM air adapter (B) to the inspection hole, then connect the air pressure regulator (C) as shown.

   REAR

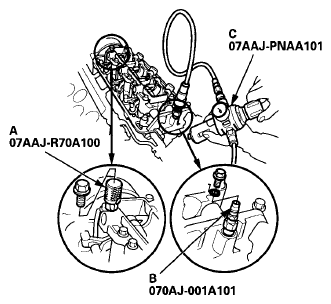

   Fig 4: Identifying Air Pressure Regulator Connection With VCM Air Adapter (Rear)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Loosen the valve on the regulator, and apply the specified air pressure.

   Specified Air Pressure:

   550-690 kPa (5.61-7.04 kgf/cm ²  , 79.8-100.1 psi)

10. With the specified air pressure applied, rotate the crankshaft pulley clockwise. The intake primary rocker arm (A) should move together with the intake secondary rocker arm (B):
    • If the intake primary rocker arm and the intake secondary rocker arm move independently, remove the intake primary rocker arm and the intake secondary rocker arm as an assembly, and check that the pistons in the rocker arms move smoothly. If any intake rocker arm needs replacing, replace the primary and secondary rocker arms as an assembly, then retest.
    • If the intake primary rocker arm and the intake secondary rocker arm move together, go to step 11.

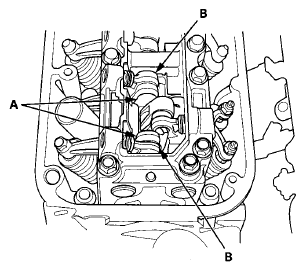

    Fig 5: Identifying Intake Primary And Secondary Rocker Arm

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. With the specified air pressure applied, rotate the crankshaft pulley clockwise. The exhaust primary rocker arm (A) should move together with the exhaust secondary rocker arm (B):
    • If the exhaust primary rocker arm and the exhaust secondary rocker arm move independently, remove the exhaust primary rocker arm and the exhaust secondary rocker arm as an assembly, and check that the pistons in the rocker arms move smoothly. If any exhaust rocker arm needs replacing, replace the primary and secondary rocker arms as an assembly, then retest.
    • If the exhaust primary rocker arm and the exhaust secondary rocker arm move together, go to step 12.
    Fig 6: Identifying Exhaust Primary And Secondary Rocker Arm

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Remove the air pressure regulator, the VCM air adapter, VTEC air stop tool A, and VTEC air stop tool B.
13. Torque the sealing bolts to 22 N.m (2.2 kgf.m, 16 lbf.ft).
14. Install the cylinder head covers .
15. Install the six spark plugs.
