Timing Belt Installation

NOTE: The following procedure is for installation of a used timing belt. If you are installing a new belt, refer to the TIMING BELT REPLACEMENT PROCEDURE .
  1. Clean the timing belt pulleys, the timing belt guide plate, and the upper and lower covers.
  2. Set the timing belt drive pulley to top dead center (TDC) by aligning the TDC mark (A) on the tooth of the timing belt drive pulley with the pointer (B) on the oil pump.
    Fig 1: Identifying TDC Mark And Pointer On Oil Pump
    G08068801Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Set the camshaft pulleys to TDC by aligning the TDC marks (A) on the camshaft pulleys with the pointers (B) on the back covers.

    FRONT

    Fig 2: Identifying TDC Marks And Pointers On Camshaft Pulley - Front
    G08068802Courtesy of AMERICAN HONDA MOTOR CO., INC.

    REAR

    Fig 3: Identifying TDC Marks And Pointers On Camshaft Pulley - Rear
    G08068803Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Loosely install the idler pulley with a new idler pulley bolt so the pulley can move but does not come off.
  5. If the auto-tensioner has extended and the timing belt cannot be installed, do the timing belt replacement procedure (see TIMING BELT REPLACEMENT  ).
  6. Install the timing belt in a counterclockwise sequence starting with the drive pulley. Take care not to damage the timing belt during installation:
    1. Drive pulley (A)
    2. Idler pulley (B)
    3. Front camshaft pulley (C)
    4. Water pump pulley (D)
    5. Rear camshaft pulley (E)
    6. Adjusting pulley (F)
      Fig 4: Identifying Timing Belt And Related Components
      G08068804Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Tighten the idler pulley bolt.
    Fig 5: Idler Pulley Bolt With Torque Specifications
    G08068805Courtesy of AMERICAN HONDA MOTOR CO., INC.

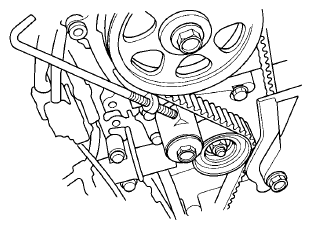

  8. Remove the battery clamp bolt from the back cover.
    Fig 6: Identifying Battery Clamp Bolt
    G08068806Courtesy of AMERICAN HONDA MOTOR CO., INC.

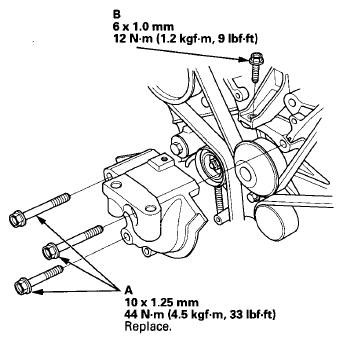

  9. Install the lower half of the side engine mount bracket using new bolts (A) and the bolt (B).
    Fig 7: Engine Mount Bracket Bolts With Torque Specifications
    G08068807Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install the timing belt guide plate (A) as shown.
    Fig 8: Identifying Timing Belt Guide Plate
    G08068808Courtesy of AMERICAN HONDA MOTOR CO., INC.

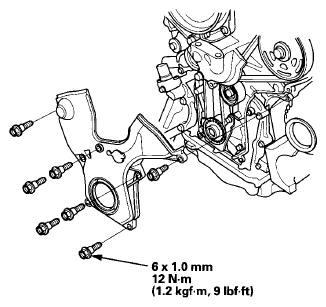

  11. Install the lower cover.
    Fig 9: Lower Cover And Bolts With Torque Specifications
    G08068809Courtesy of AMERICAN HONDA MOTOR CO., INC.

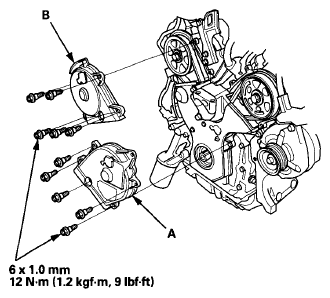

  12. Install the front upper cover (A) and the rear upper cover (B).
    Fig 10: Front And Rear Upper Cover With Torque Specifications
    G08068810Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Install the crankshaft pulley (see CRANKSHAFT PULLEY REMOVAL AND INSTALLATION  ).
  14. Rotate the crankshaft pulley about six turns clockwise so the timing belt positions itself on the pulleys.

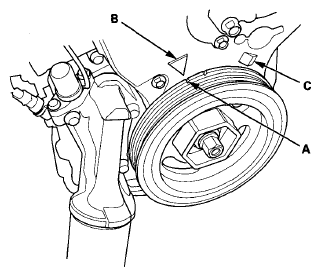

  15. Turn the crankshaft pulley so its white mark (A) lines up with the pointer (B).
    NOTE: The other pointer (C) is not used.
    Fig 11: Identifying White Marks And Pointers On Crankshaft Pulley
    G08068811Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Check the camshaft pulley marks.
    NOTE: If the marks are not aligned, rotate the crankshaft 360 degrees, and recheck the camshaft pulley mark:
    • If the camshaft pulley marks are at TDC, go to step 17.
    • If the camshaft pulley marks are not at TDC, remove the timing belt and repeat steps  2 through  16.

    FRONT

    Fig 12: Identifying Camshaft Pulley Marks - Front
    G08068812Courtesy of AMERICAN HONDA MOTOR CO., INC.

    REAR

    Fig 13: Identifying Camshaft Pulley Marks - Rear
    G08068813Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Loosely install the upper half of the side engine mount bracket (A) using new bolts, then install the ground cable (B).
    Fig 14: Engine Mount Bracket, Bolts And Cable With Torque Specifications
    G08068814Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Remove the jack and the wood block.
  19. Tighten the mounting bolts in the numbered sequence shown.
  20. Install the drive belt auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT ).
  21. Install the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
  22. Install the right front wheel.
  23. Install the engine compartment covers (see ENGINE COMPARTMENT COVER REPLACEMENT ).
  24. Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
