Component Location Index

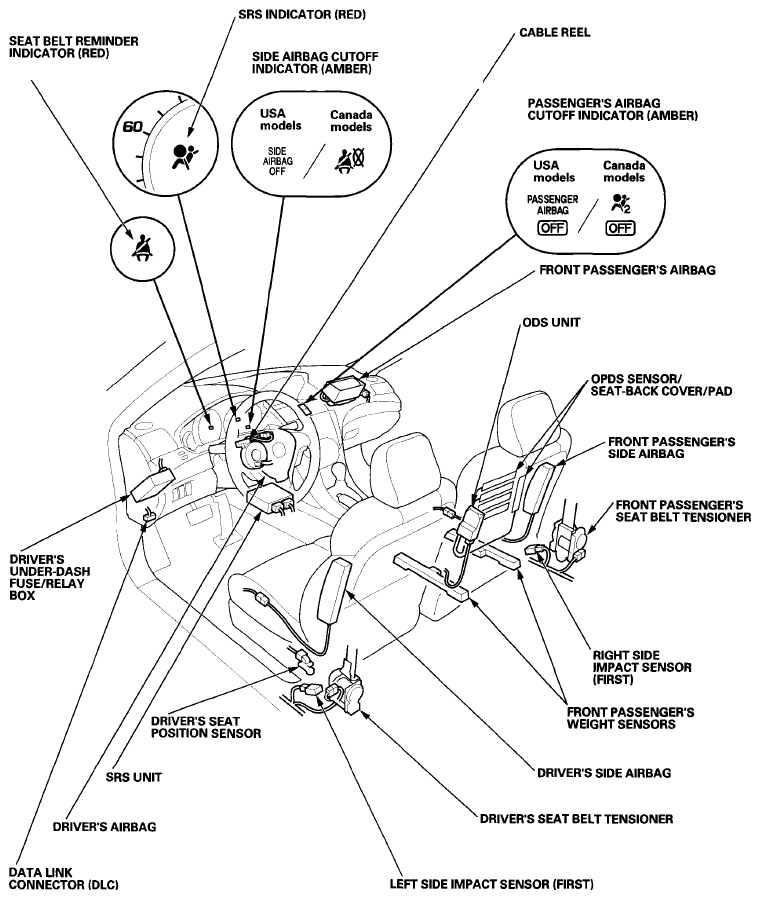

Fig 1: Supplemental Restraint System Components Location (1 Of 2)
G08068119Courtesy of AMERICAN HONDA MOTOR CO., INC.

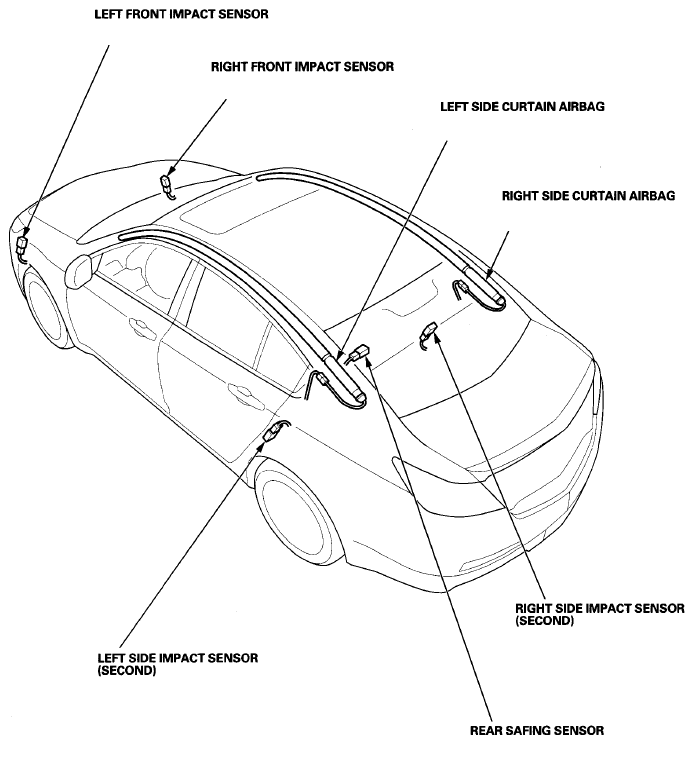

Fig 2: Supplemental Restraint System Components Location (2 Of 2)
G08068120Courtesy of AMERICAN HONDA MOTOR CO., INC.
