How to Check for DTCs With the HDS

NOTE:
  • There are three methods used to check for DTCs. The recommended method is to use the Honda Diagnostic System (HDS) with the appropriate software, plugged into the data link connector (DLC).
  • The second method is to run the self-diagnostic function built into the HVAC control unit.
  • The third method is to use B-CAN system diagnosis test mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  1. Make sure the ignition switch is in LOCK(0), or the vehicle ignition is in the OFF mode.
  2. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (A) located under the driver's side of the dashboard.

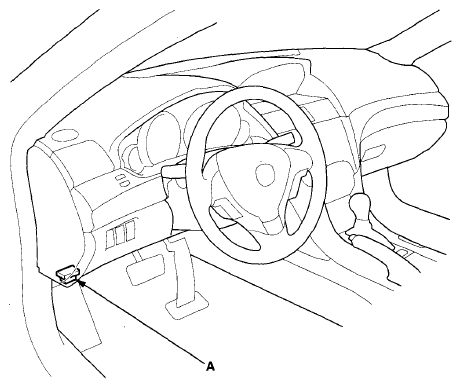

    Fig 1: Identifying Data Link Connector (DLC)
    G08070935Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
  4. Make sure the HDS communicates with the vehicle and the climate control unit. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  5. Select HVAC/CLIMATE CONTROL in the BODY ELECTRICAL menu.
  6. Select DTCs in the HVAC/CLIMATE CONTROL menu.
  7. Check for DTCs. If any DTCs are indicated, write down the DTCs, then go to the indicated DTC TROUBLESHOOTING . If no DTCs are indicated, do all system scan, then refer to symptom troubleshooting.
NOTE:
  • After troubleshooting, clear the DTCs with the HDS.
  • For specific operations, refer to the user's manual that came with the HDS.
