Shift Lever Housing Replacement

WARNING: This page is about a different variant/trim than selected.

NOTE: Take care not to scratch the center console, the dashboard, and the related parts.

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Remove the harness clamps.

Fig 1: Identifying Shift Lever Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cotter pin (A), the washer (B), and the bolts.

Fig 2: Identifying Cotter Pin And Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Unlock the retainer (A).

Fig 3: Unlocking Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rotate the socket holder retainer (B) counterclockwise (C) until it stops, and push the retainer lock (D) into the socket holder retainer to lock the retainer.
Slide the socket holder (E) and the shift cable (F) out of the shift cable bracket (G). Do not remove the shift cable by pulling the shift cable guide (H).
Remove the clip (A), and disconnect the shift cable ends (B) from the shift lever, then remove the shift lever housing (C).

Fig 4: Identifying Shift Cable Ends, Shift Lever Housing And Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the clip (A).

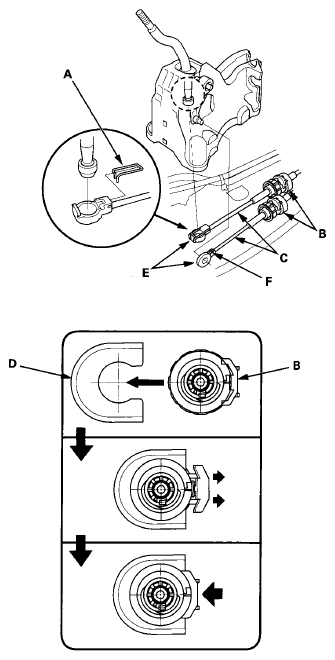

Fig 5: Aligning Socket Holder On Shift Cables With Slot In Bracket Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the socket holder (B) on the shift cables (C) with the slot in the bracket base (D), then slide the holder into the base. Install the shift cable ends (E) to the shift lever then install the shift lever housing.
NOTE: When installing the shift cable, position the serrated side (F) facing up.
Install the bolts, the washer (A), and a new cotter pin (B), then bend the cotter pin ends.
NOTE: You can install the cotter pin from either direction.

Fig 6: Cotter Pin And Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the harness clamps.

Fig 7: Identifying Shift Lever Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
