Headlight Washer

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the tube, mounting bolts and washer nozzles.

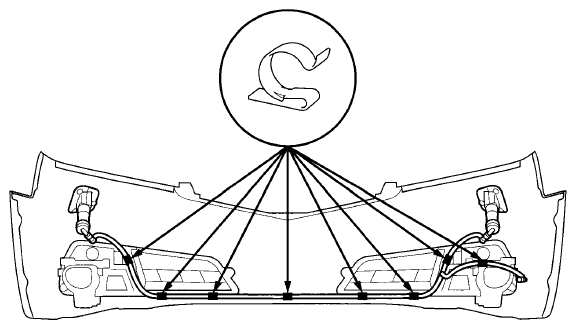

    Fig 1: Identifying Headlight Washer Tubes
    G08071525Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the parts in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
