Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

1. Remove the air cleaner Service and Repair.

2. Remove the intake air duct.

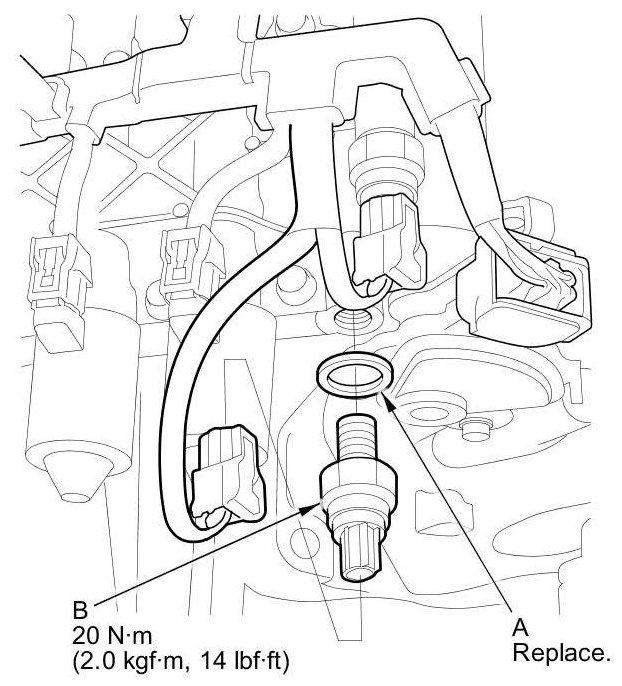

3. Disconnect the transmission fluid pressure switch B (3rd clutch) connector, and remove transmission fluid pressure switch B (3rd clutch) and the sealing washer (A).





4. Install a new transmission fluid pressure switch B (3rd clutch) with a new sealing washer, and tighten the switch.

5. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

6. Install the intake air duct.

7. Install the air cleaner Service and Repair.
