Water Pump

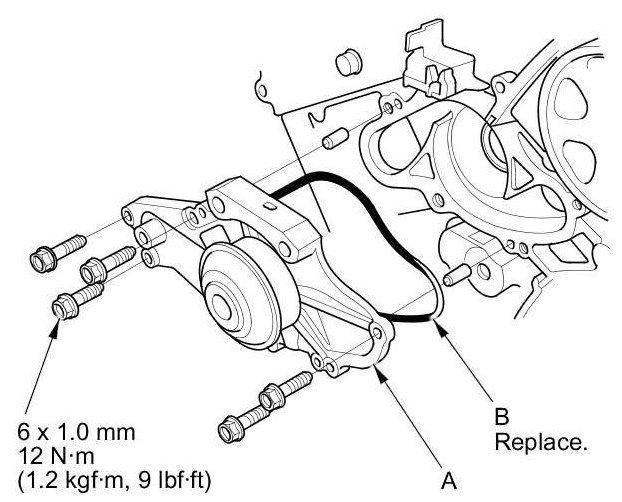

Water Pump
Water Pump Bolts 6 X 1.0 mm
12 Nm (1.2 kg-m, 9 lb-ft)
(A) - Water Pump
(B) - O-Ring
