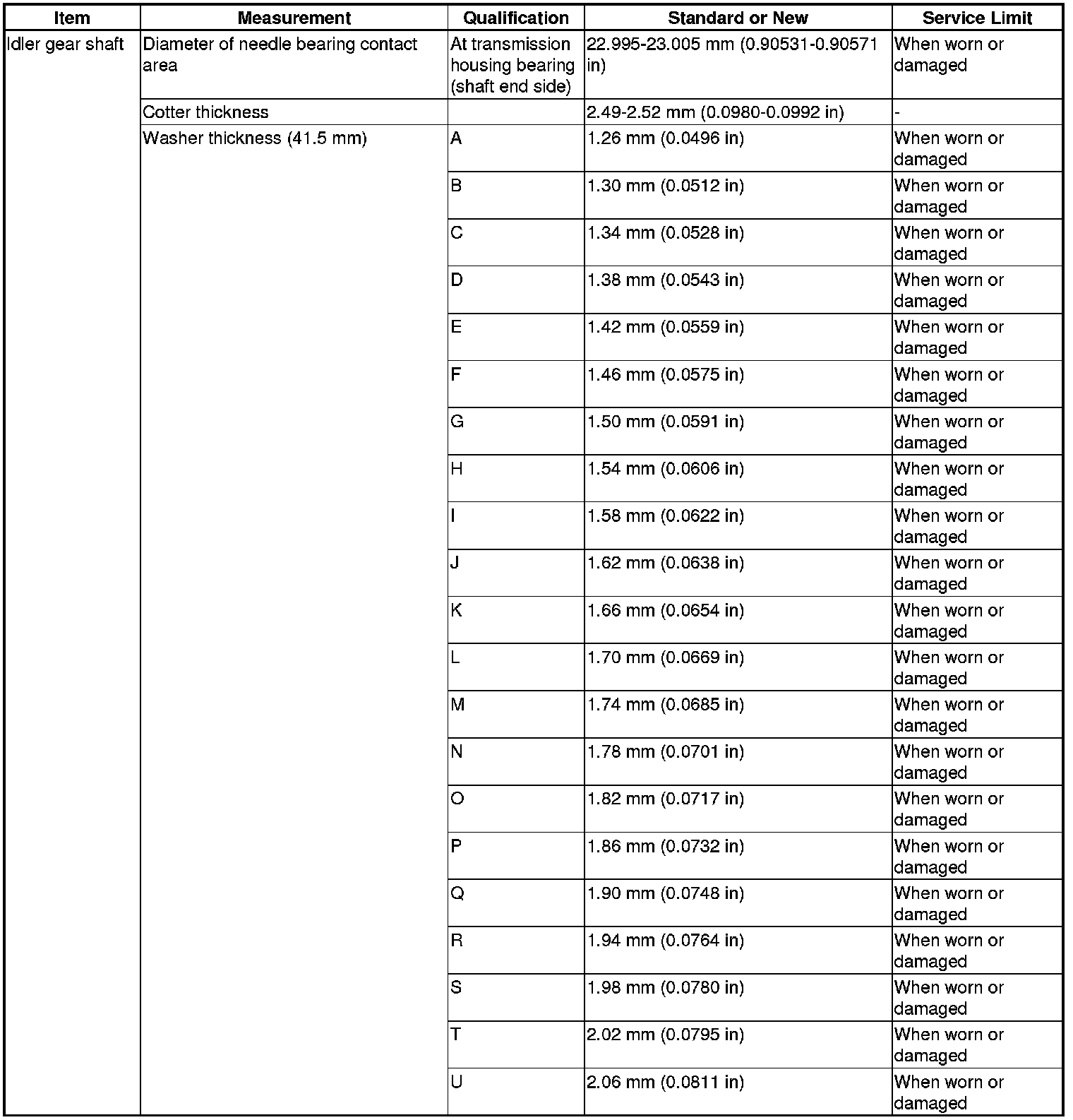

Idler Gear Shaft Specification(s) (A/T)
Idler Gear Shaft Specification(s) (A/T)
Idler gear shaft
Idler gear shaft
