Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor Replacement

1. Remove the driver's dashboard undercover Passenger's Dashboard Undercover Removal / Installation.

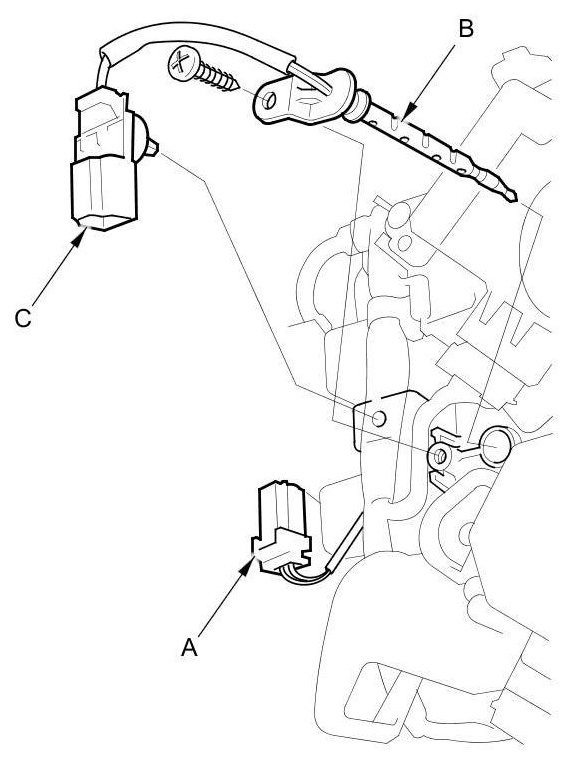

2. Disconnect the 2P connector (A) from the evaporator temperature sensor (B) by pressing the lock tab toward the evaporator housing, and remove the connector clip (C). Remove the self-tapping screw and the evaporator temperature sensor.





3. Install the sensor in the reverse order of removal.
