Acura
>>
2012
>>
TL AWD V6-3.7L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>

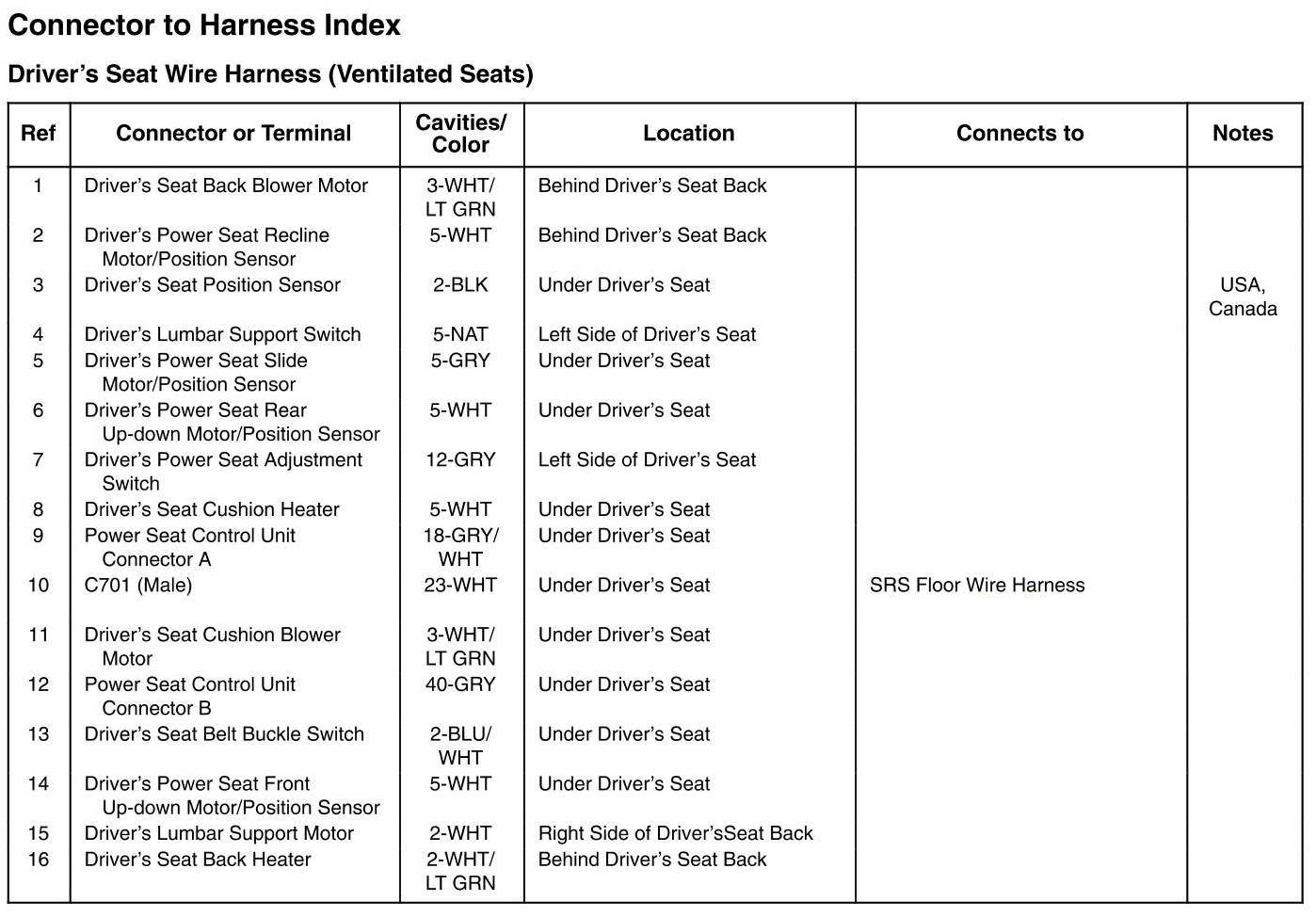

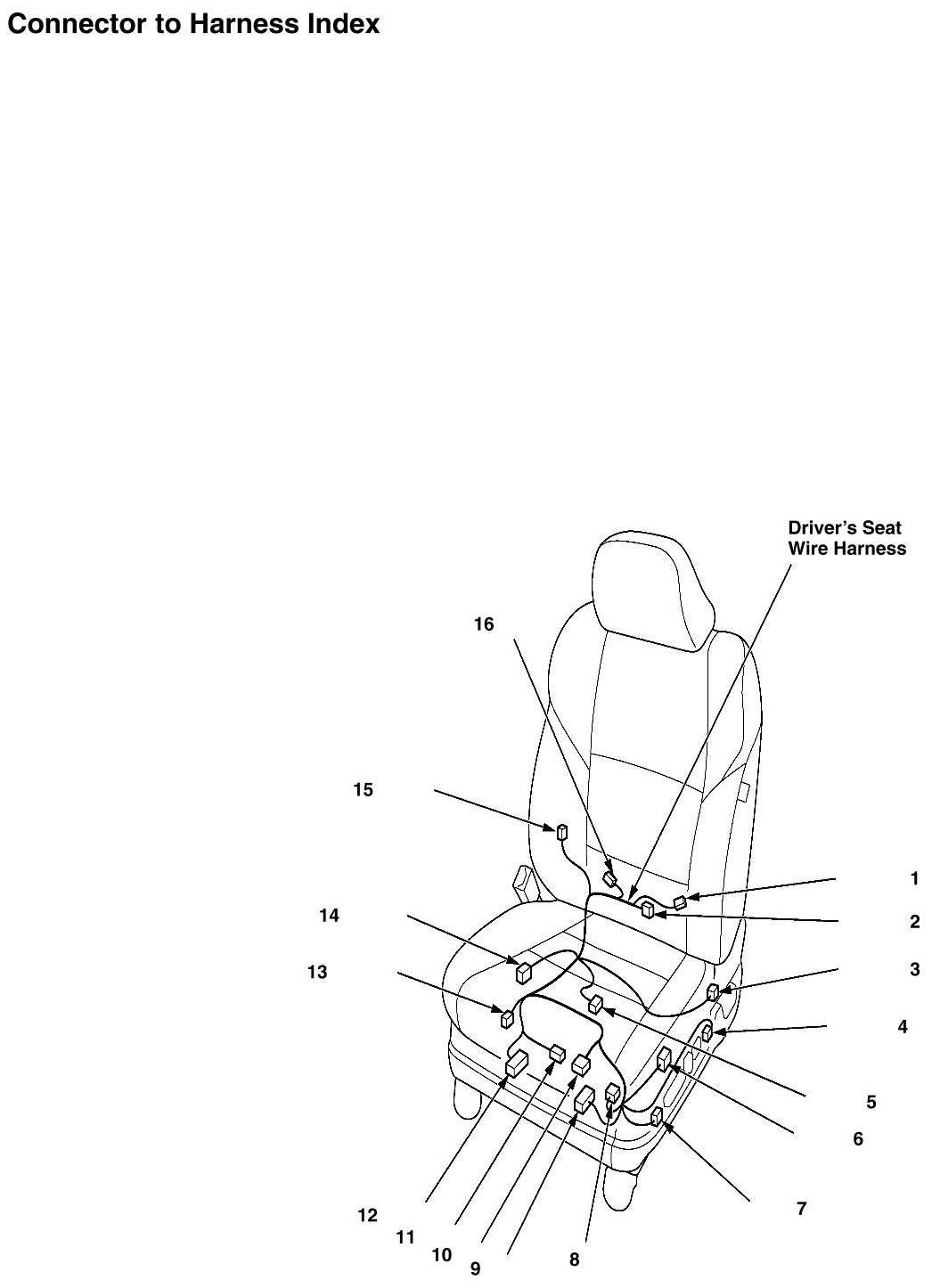

Driver's Seat Wire Harness Connector And Harness Locations (Ventilated Seats)
Driver's Seat Wire Harness Connector And Harness Locations (Ventilated Seats)
