Powertrain Management




Fuel and Emissions System Description - Fuel and Emissions Systems Diagram

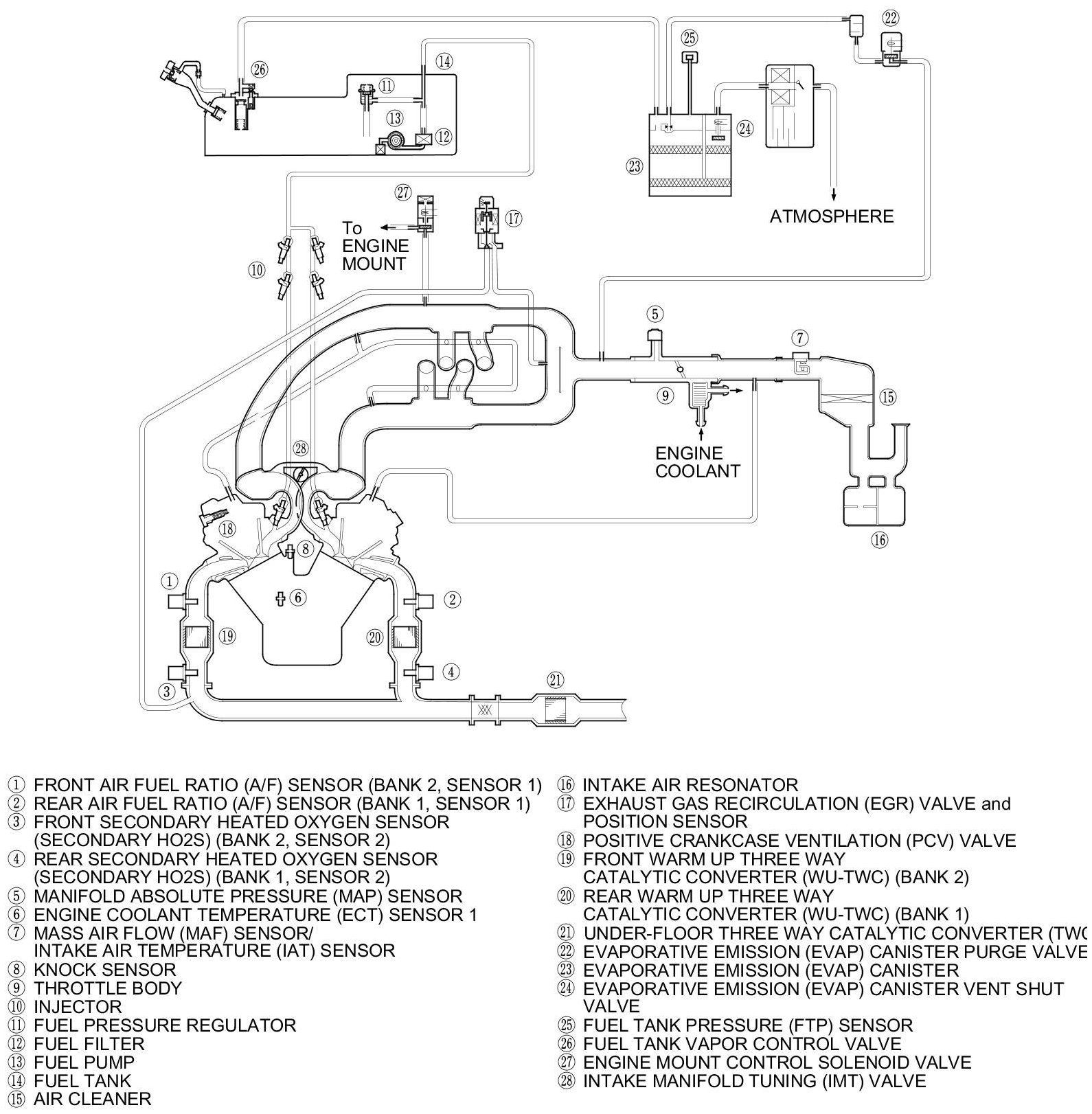

Fuel and Emissions Systems Diagram

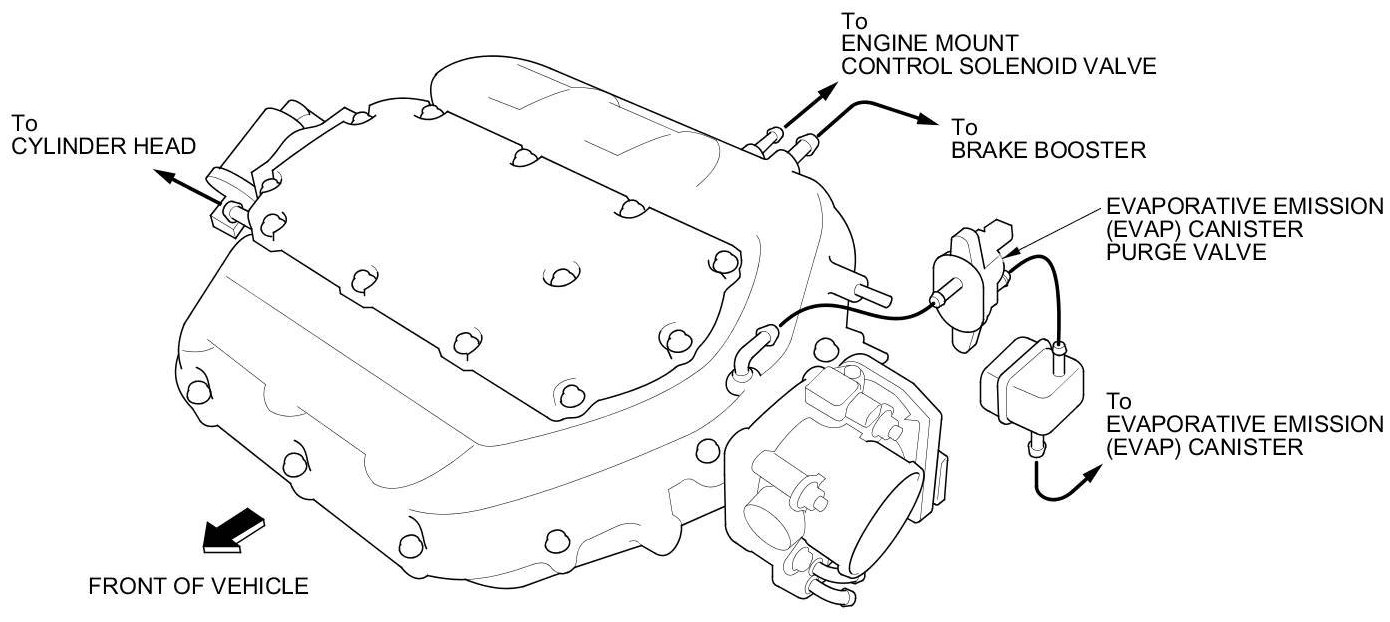

Vacuum Hose Routing
