Side Wire Harness
Side Wire Harness
Connector and Harness Locations

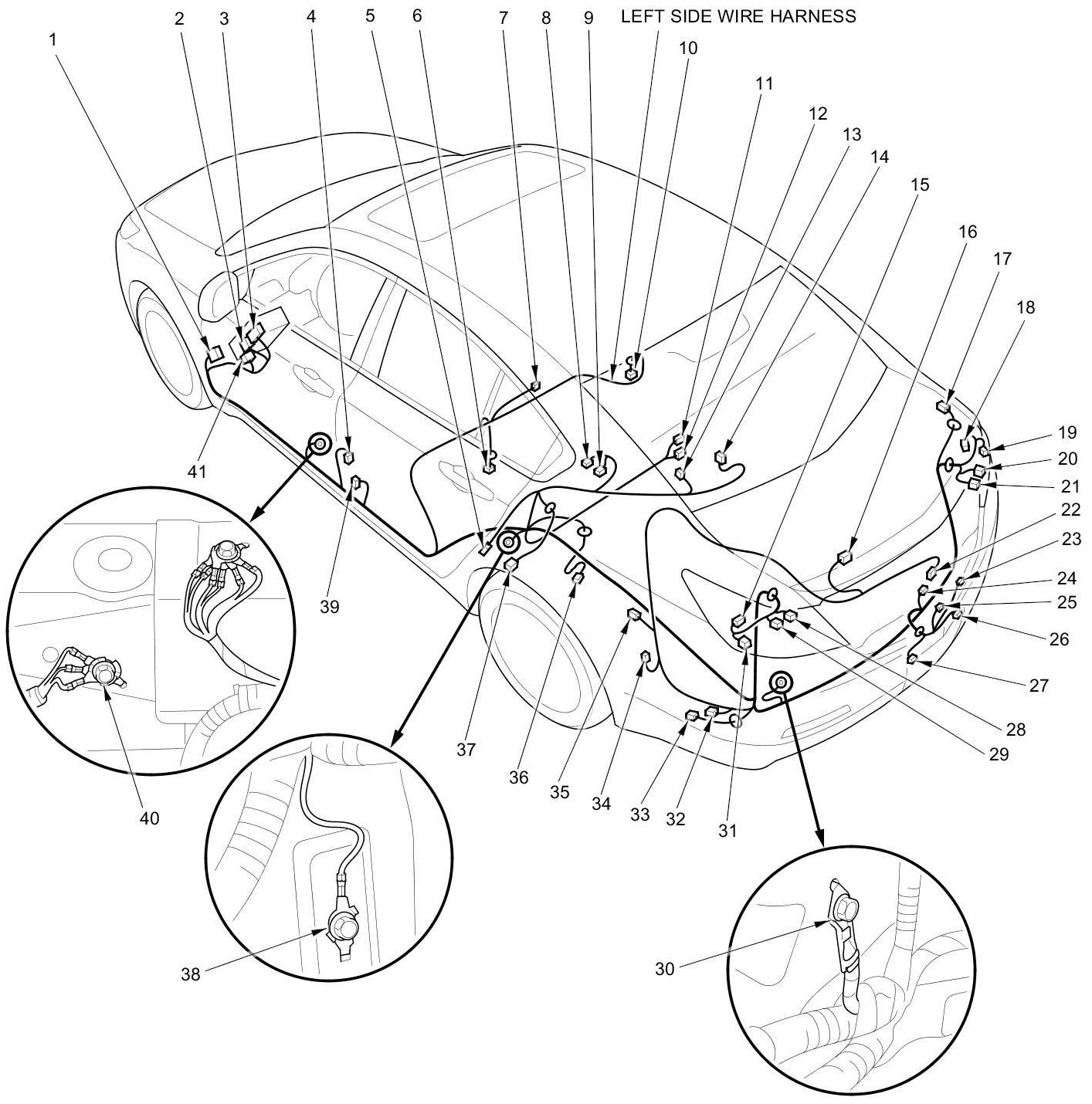

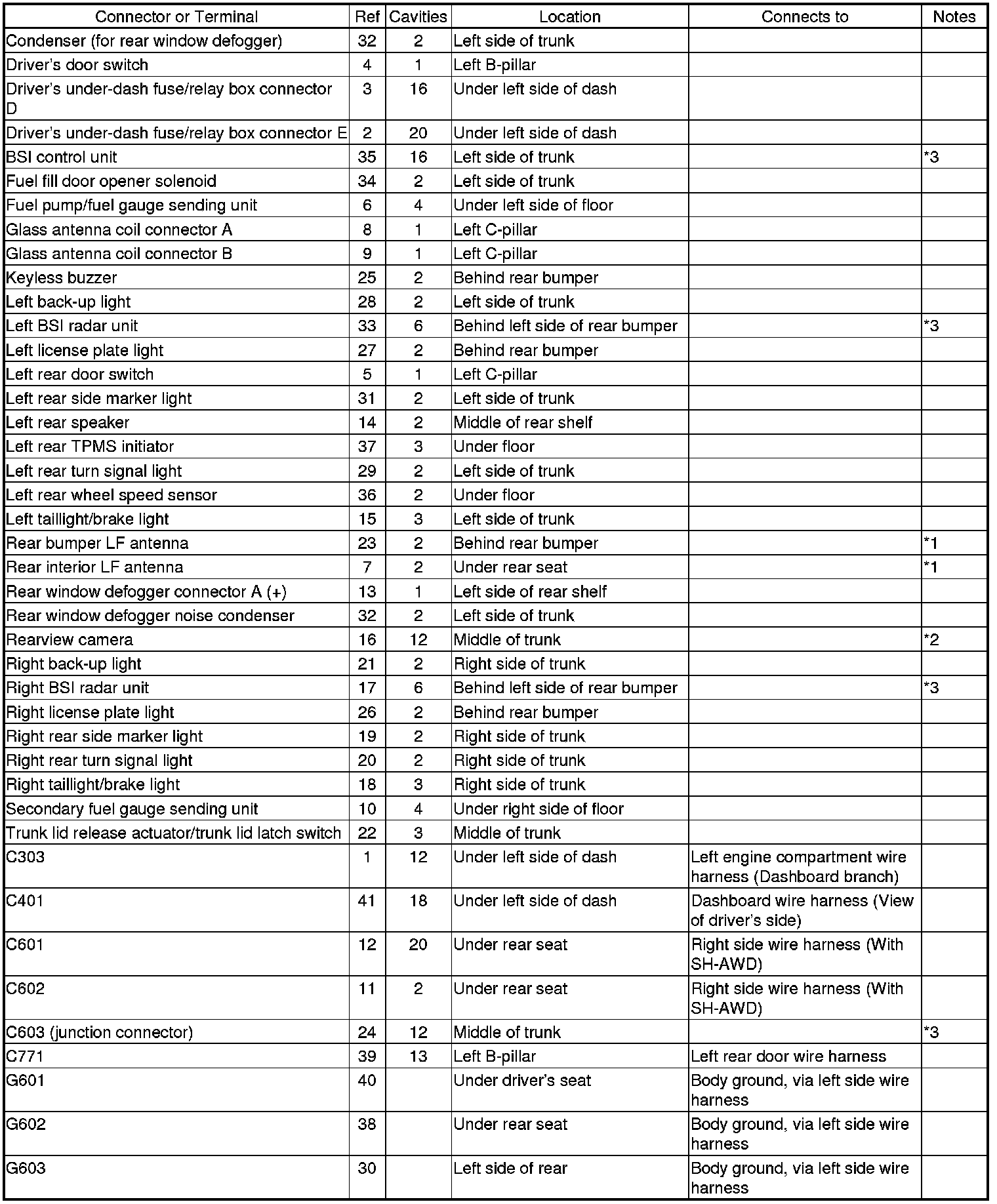

Left Side Wire Harness (With SH-AWD)

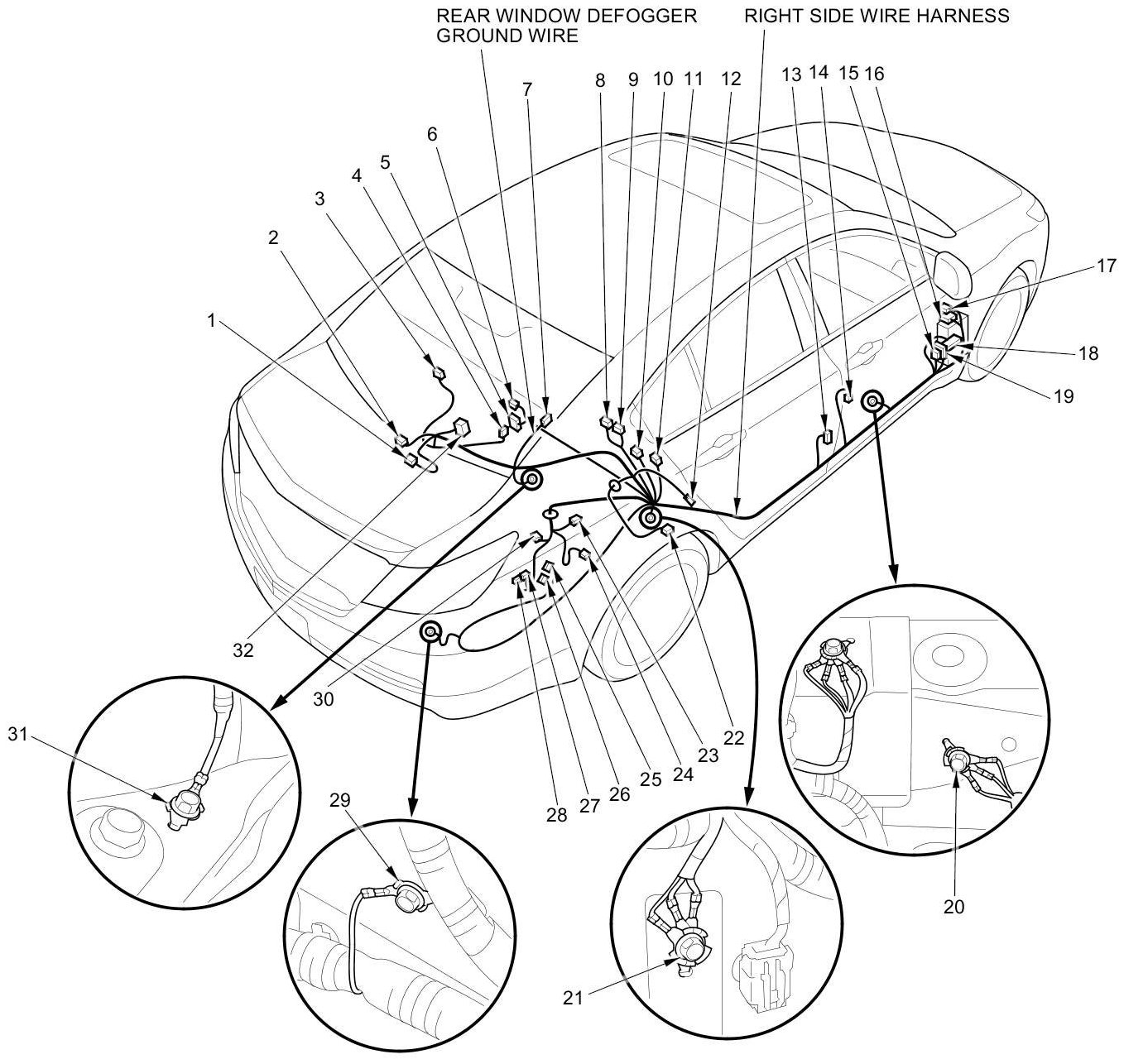

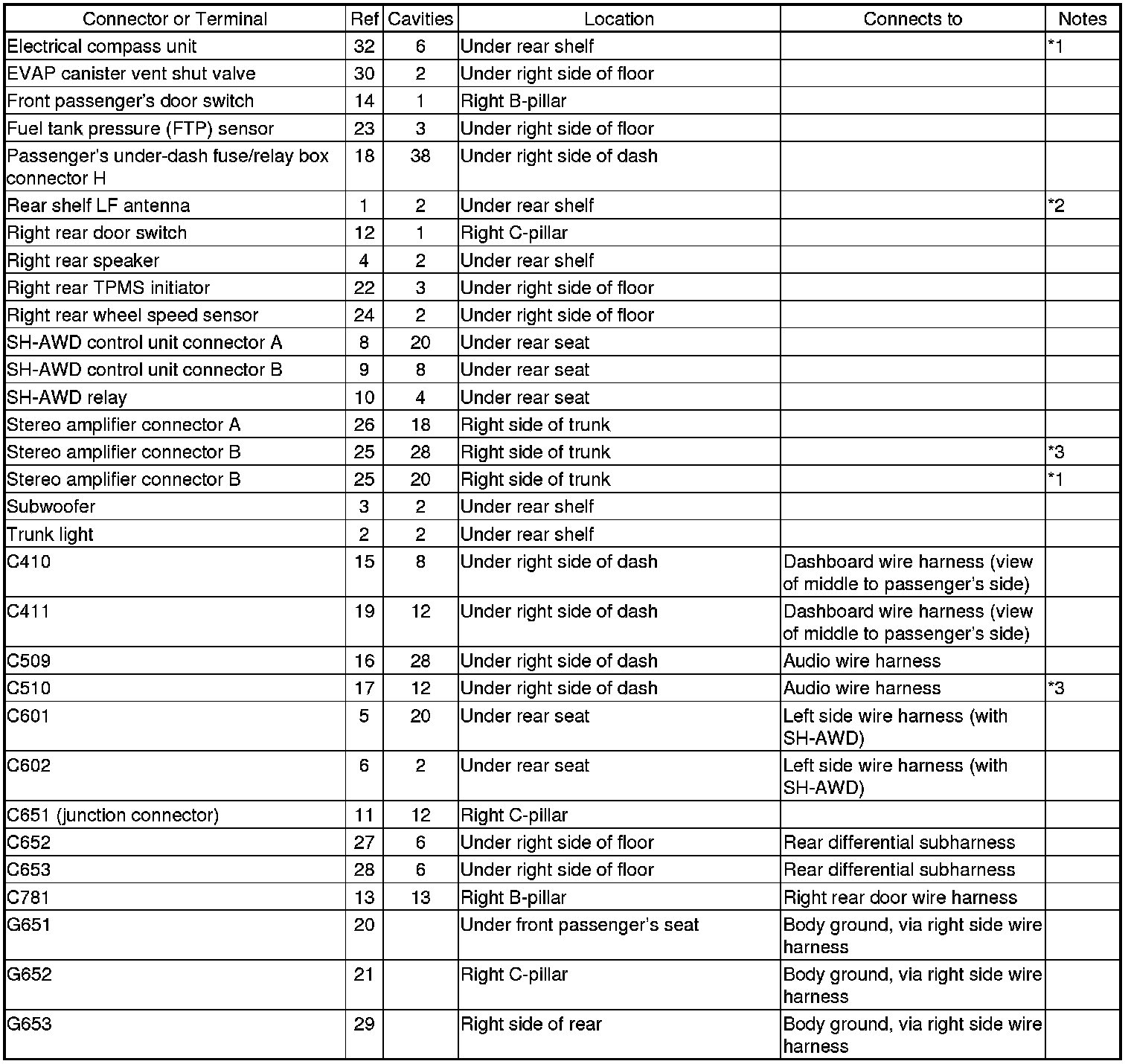

Right Side Wire Harness (With SH-AWD)
