SRS Floor Wire Harness
SRS Floor Wire Harness

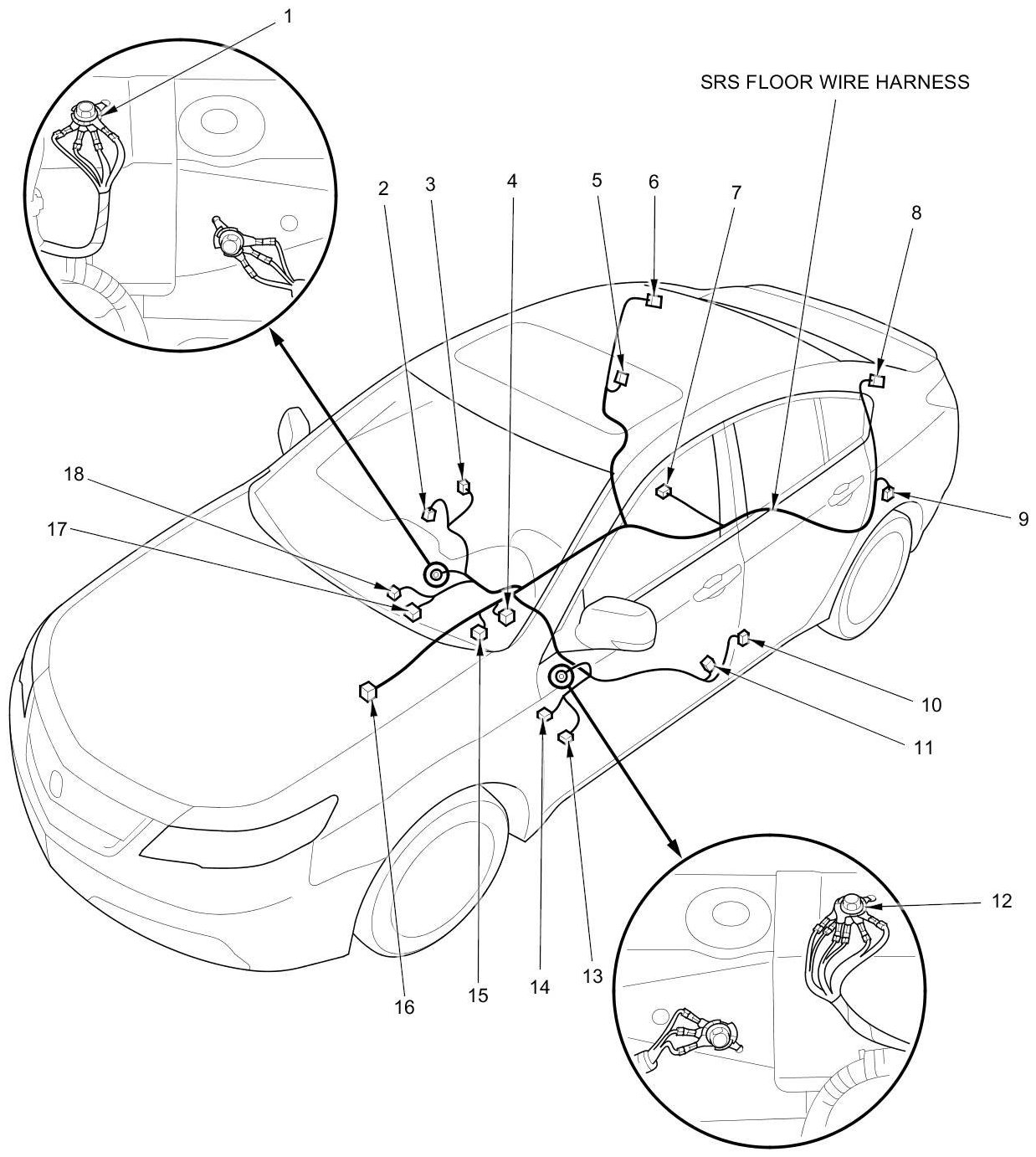

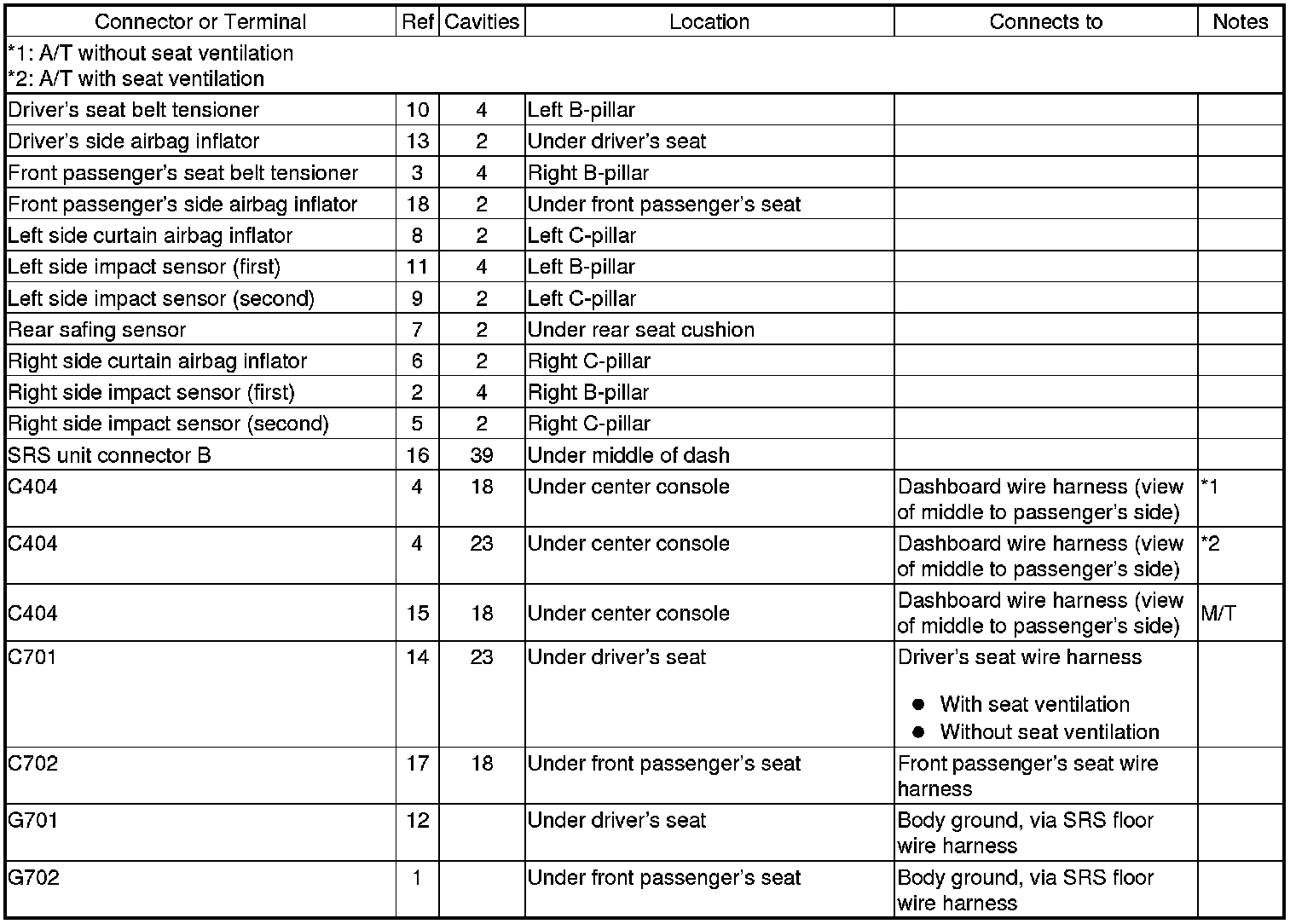

Connector and Harness Locations
SRS Floor Wire Harness
