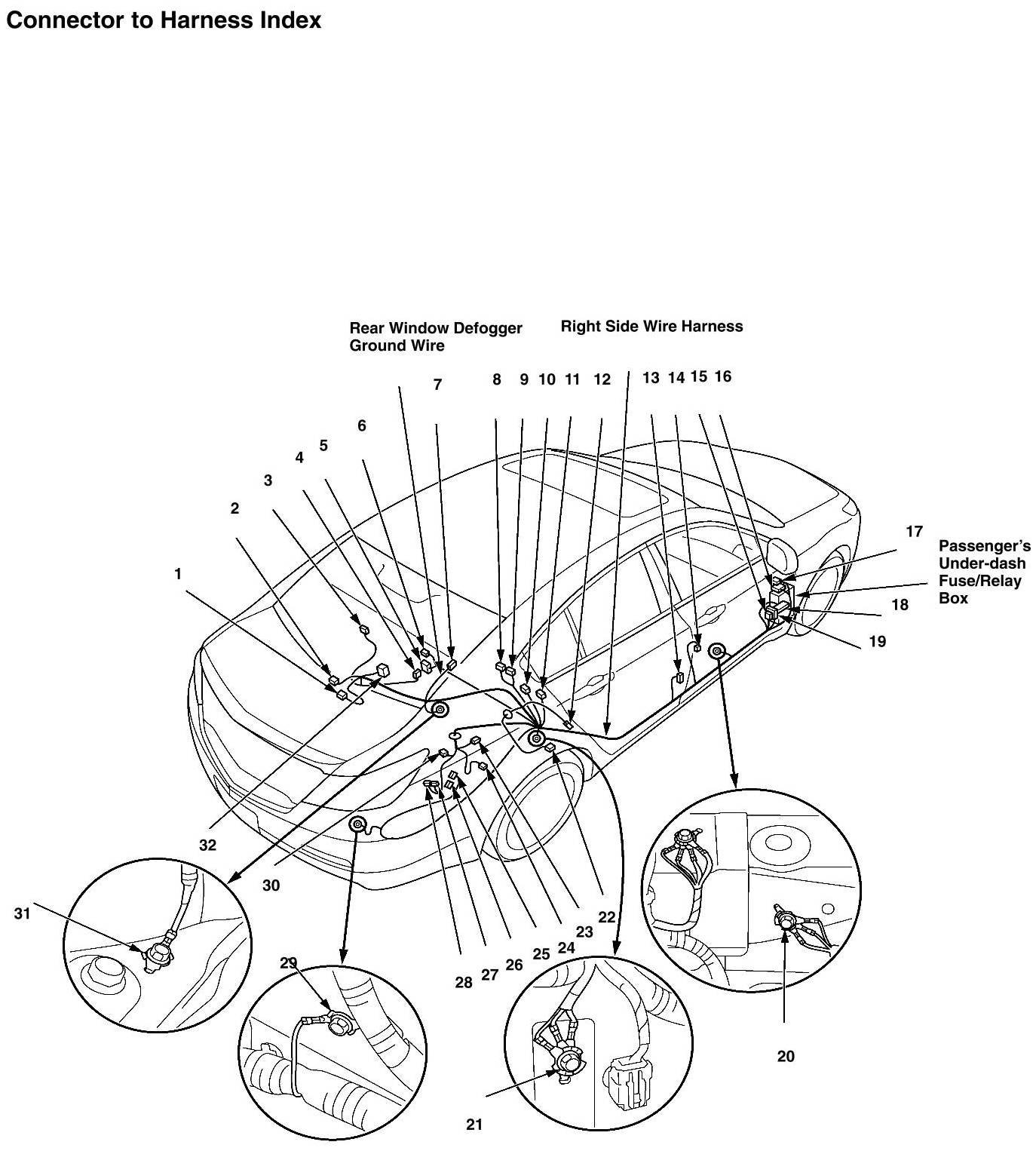

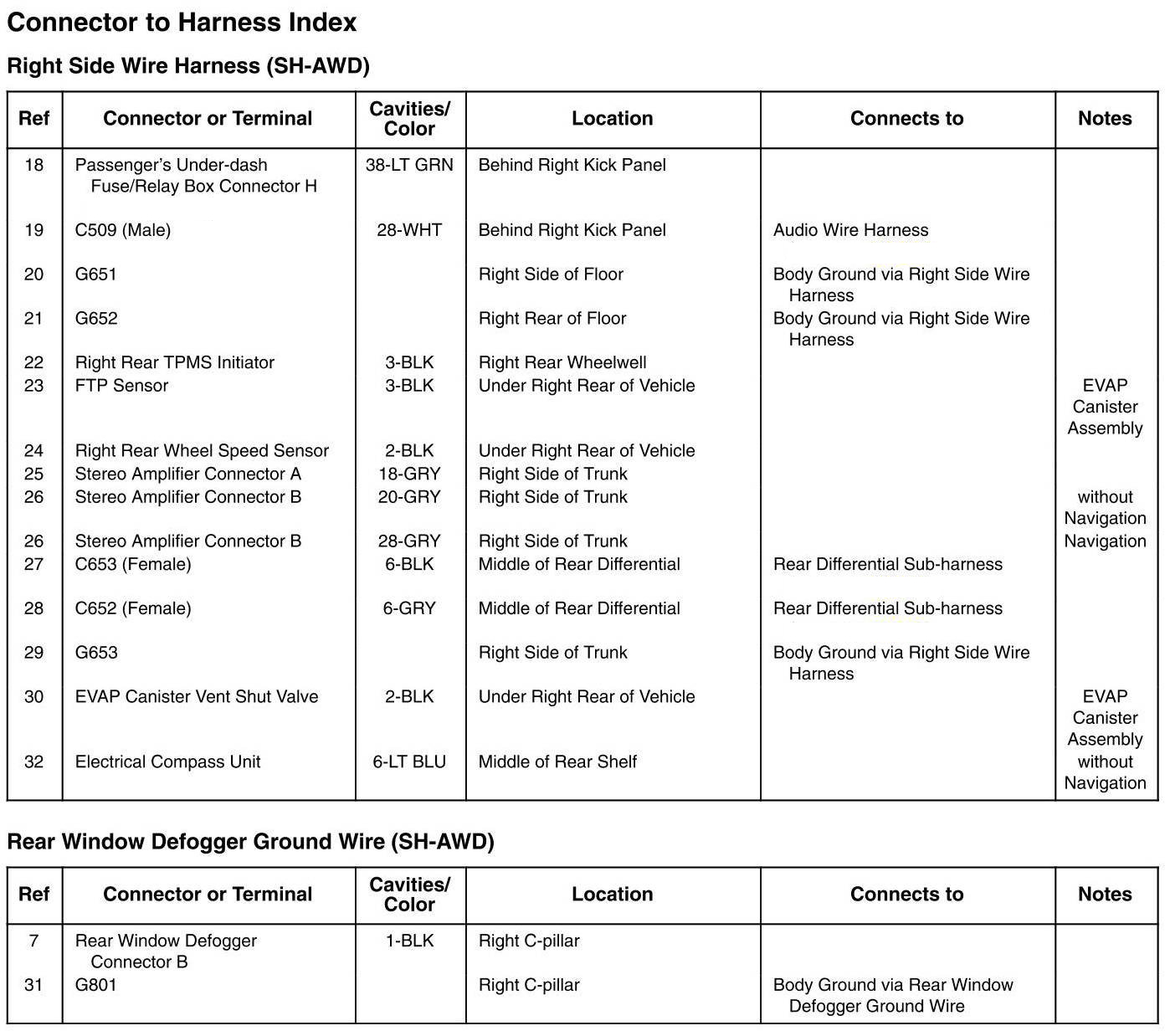

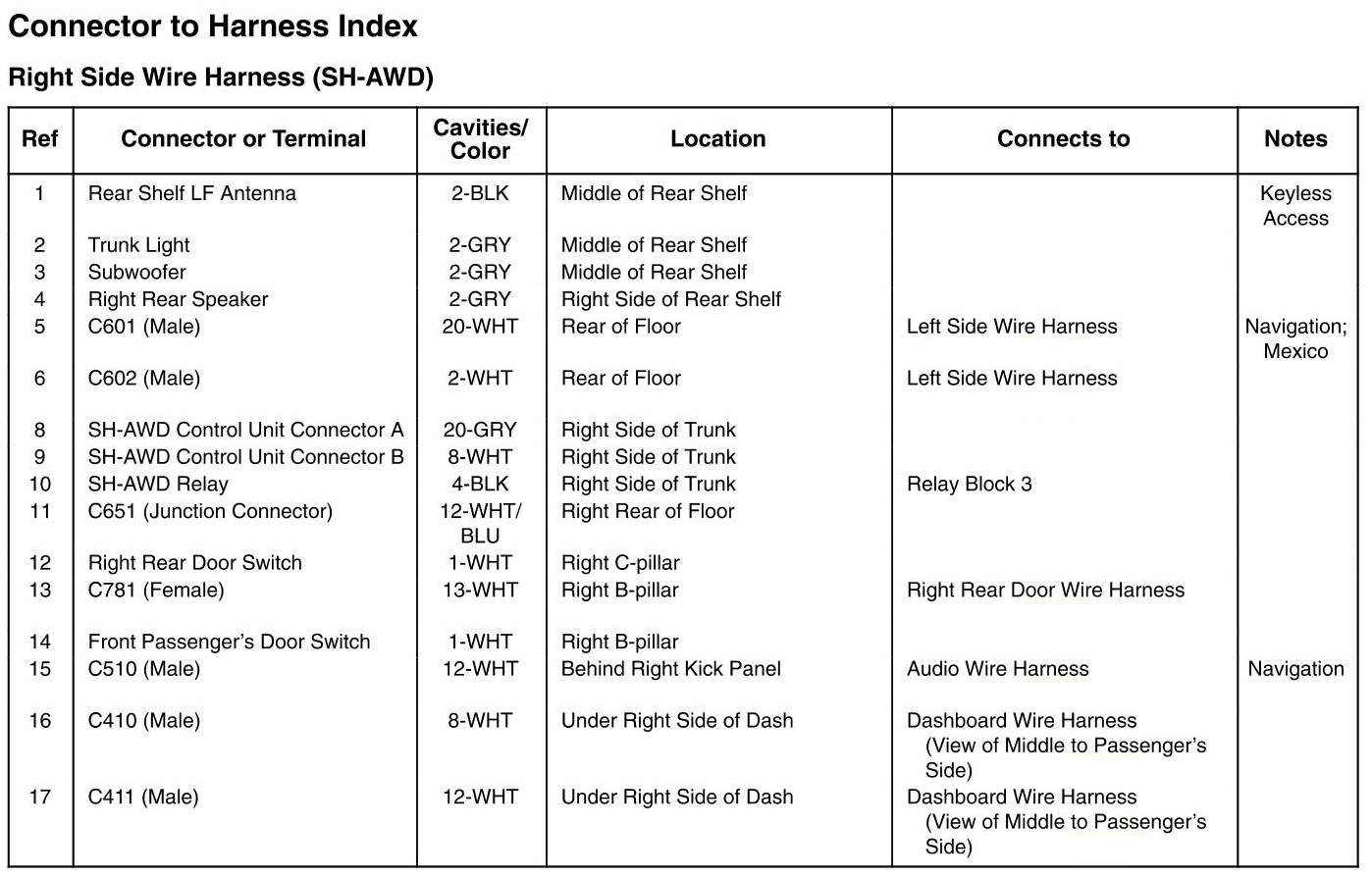

Right Side Wire Harness And Rear Window Defogger Ground Wire Connector And Harness Locations (SH-AWD)
Right Side Wire Harness And Rear Window Defogger Ground Wire Connector And Harness Locations (SH-AWD)
