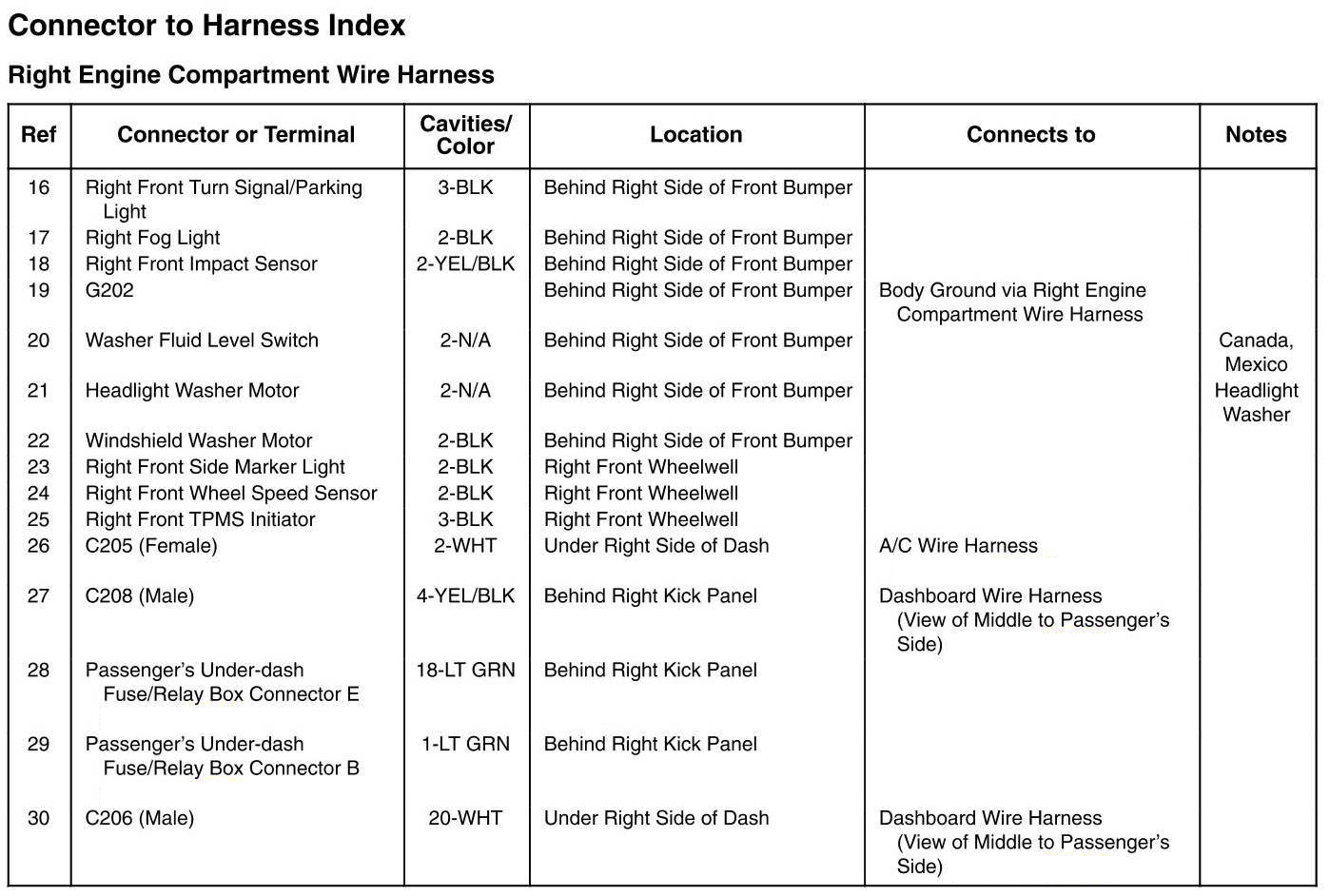

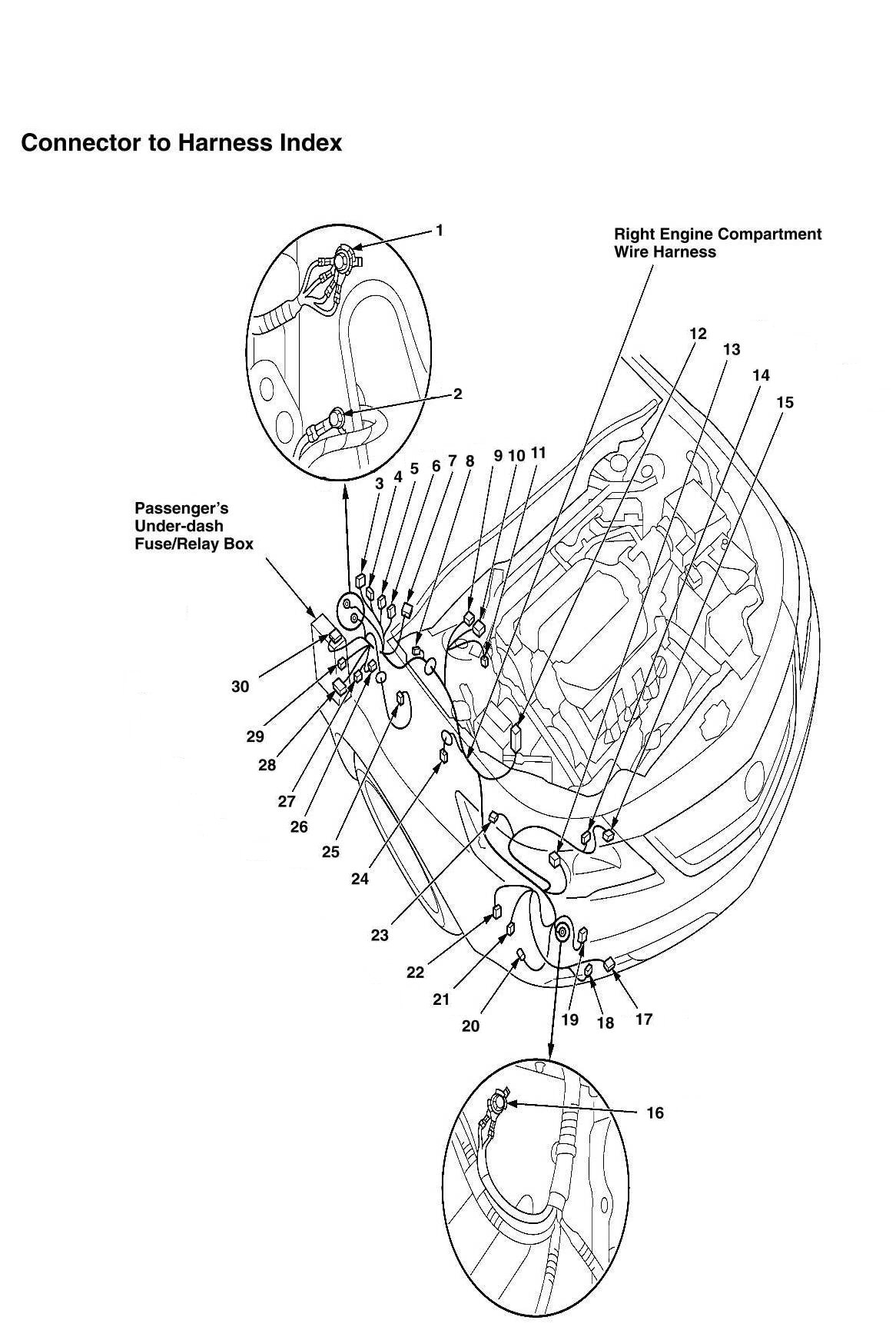

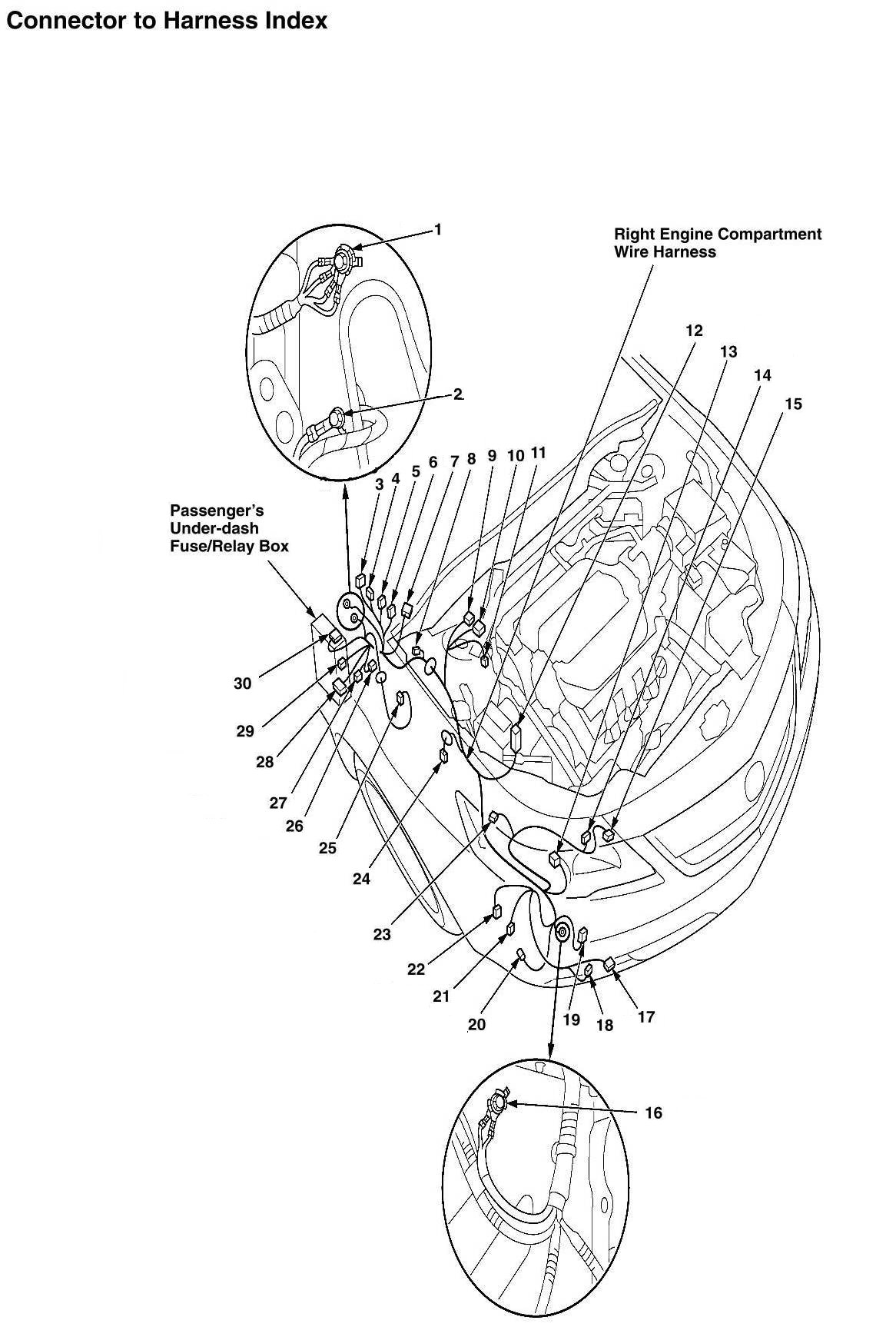

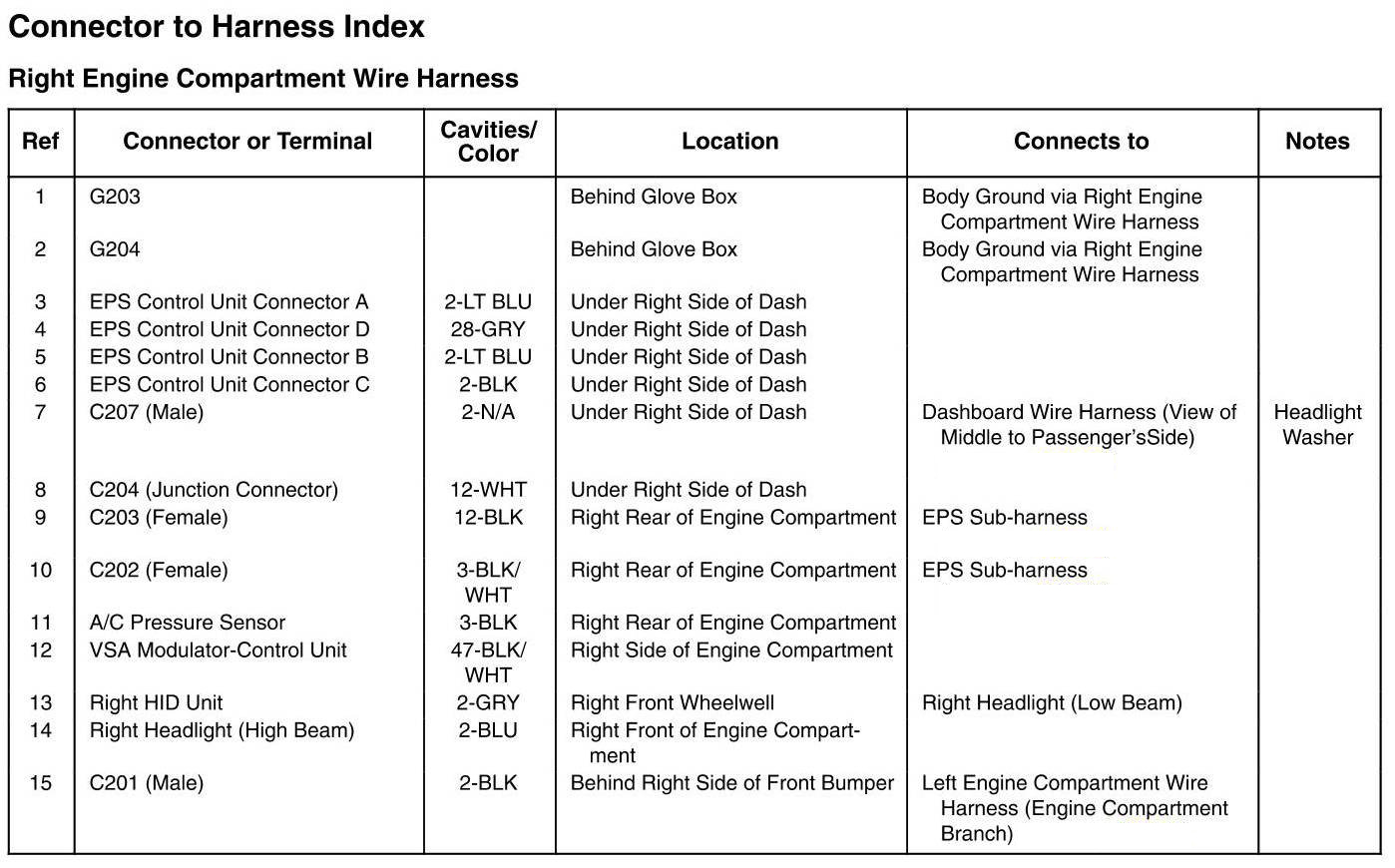

Right Engine Compartment Wire Harness Connector And Harness Locations
Right Engine Compartment Wire Harness Connector And Harness Locations
