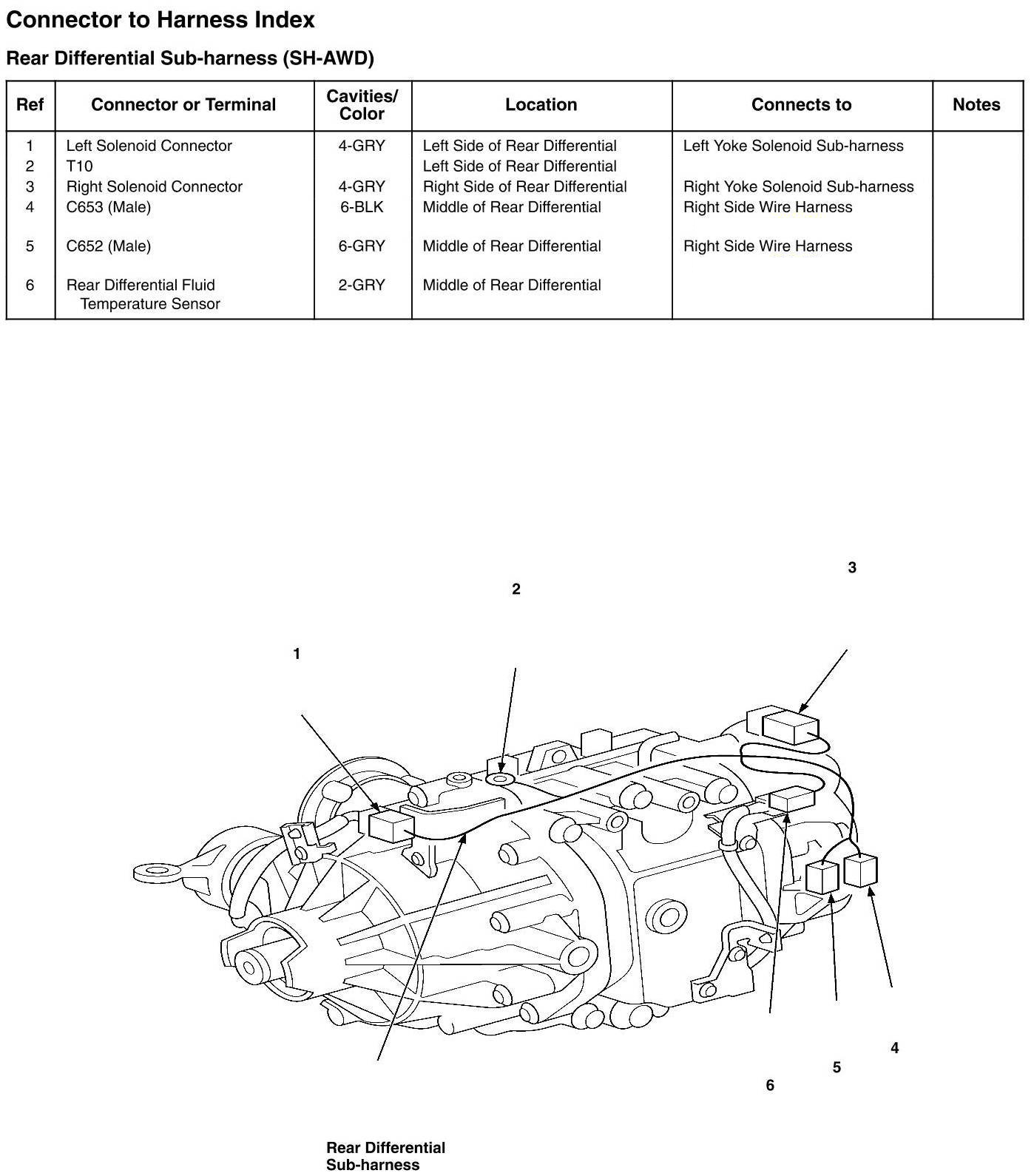

Rear Differential Subharness Connector And Harness Locations (SH-AWD)
Rear Differential Subharness Connector And Harness Locations (SH-AWD)
