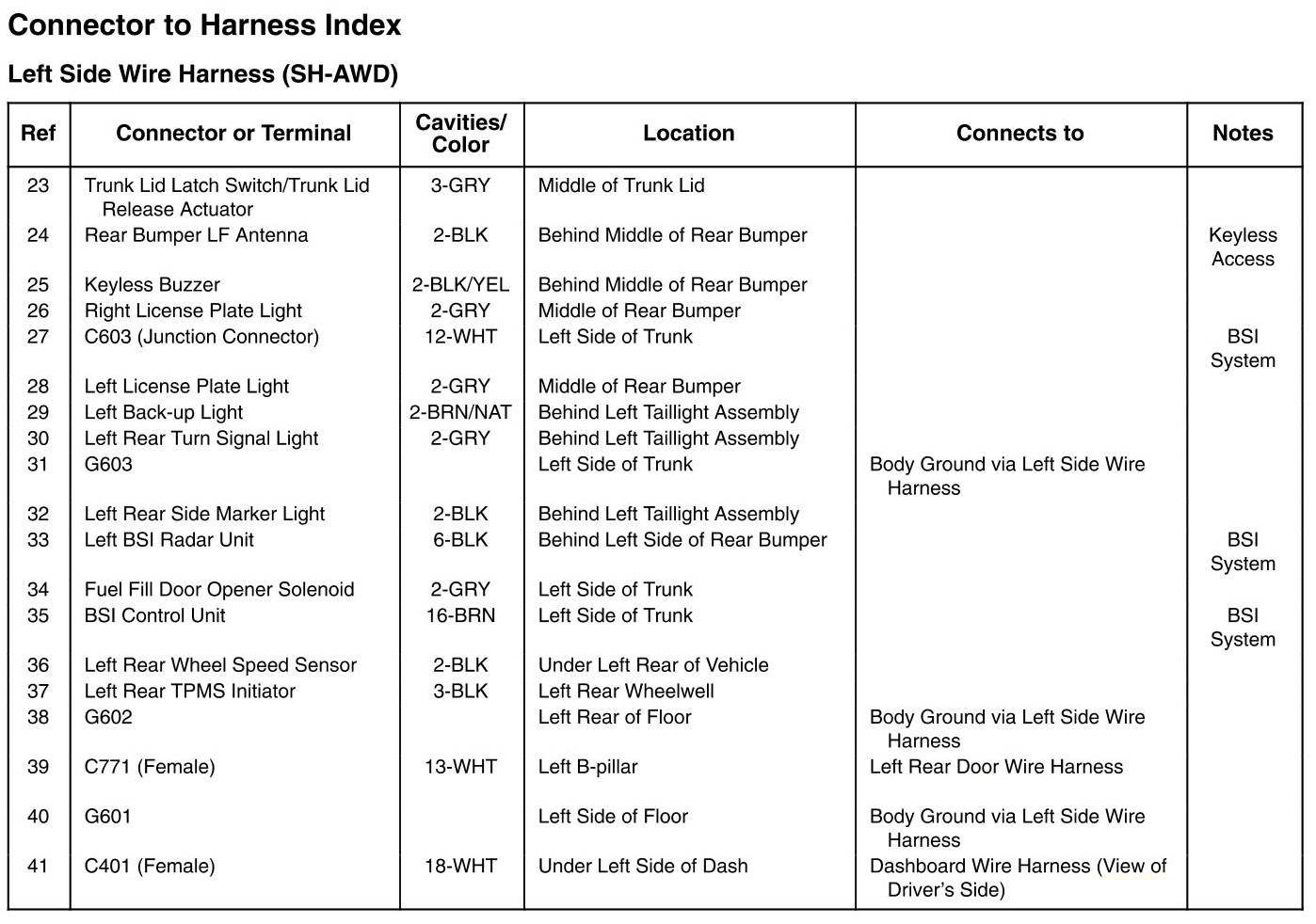

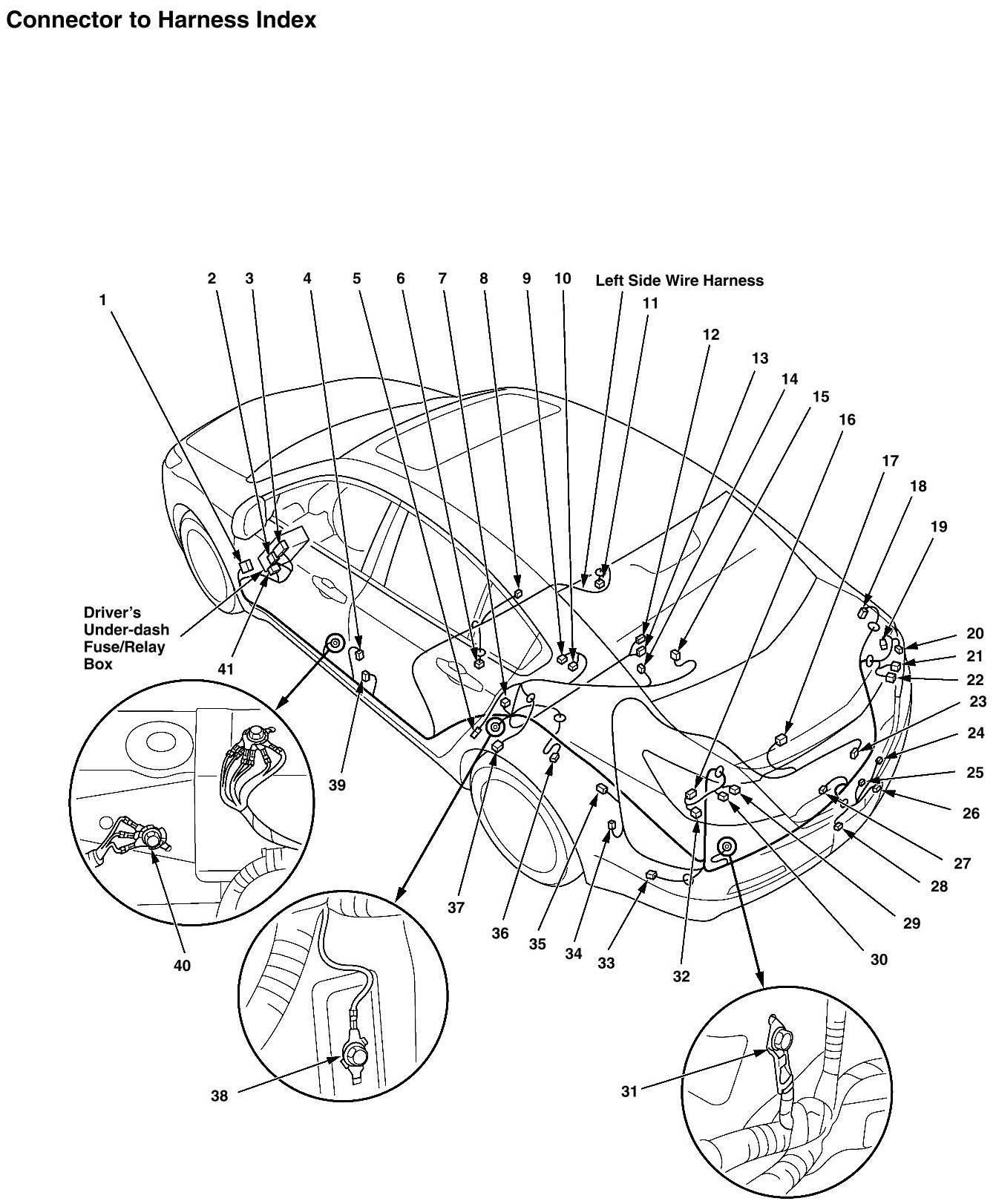

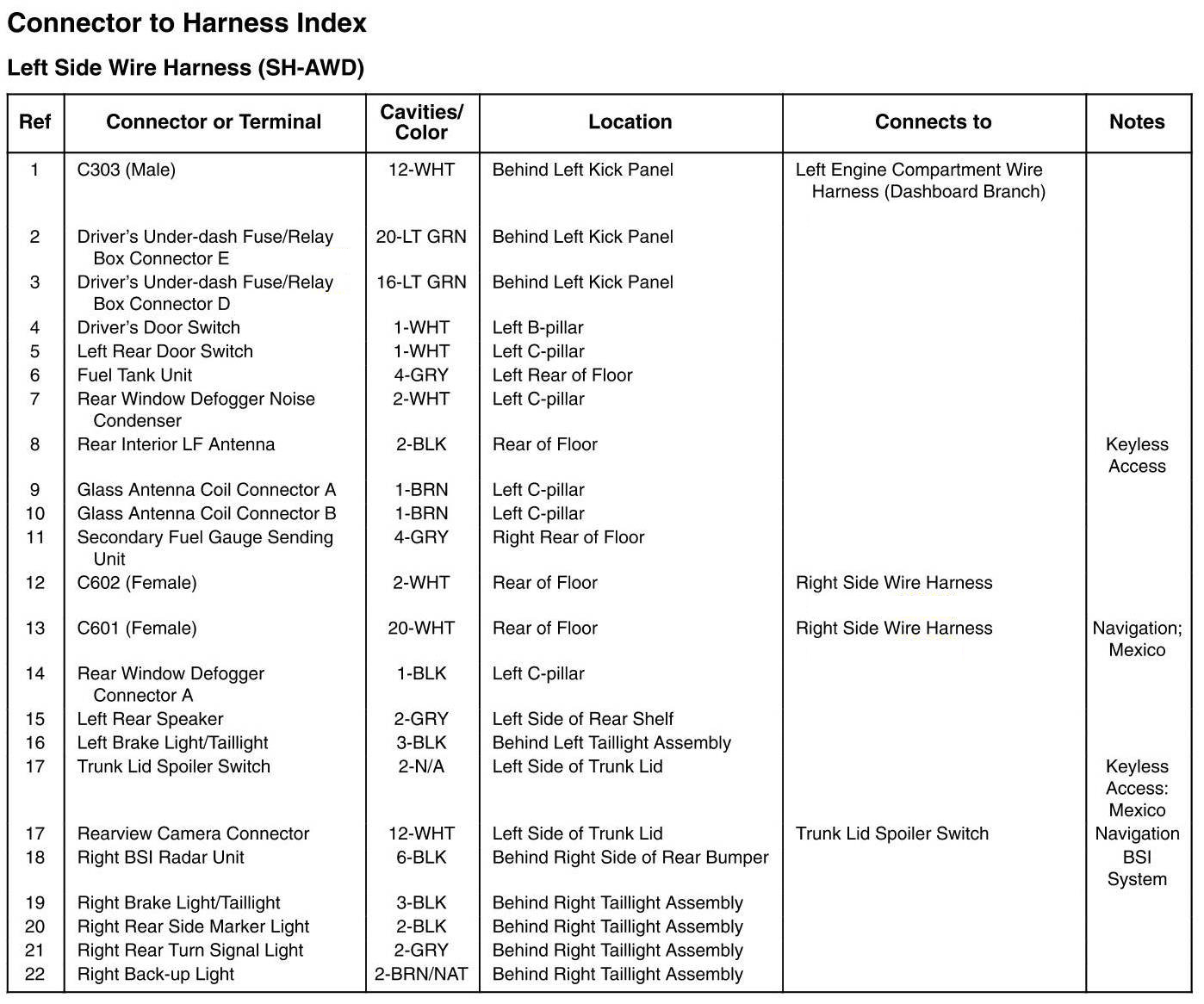

Left Side Wire Harness Connector And Harness Locations (SH-AWD)
Left Side Wire Harness Connector And Harness Locations (SH-AWD)
