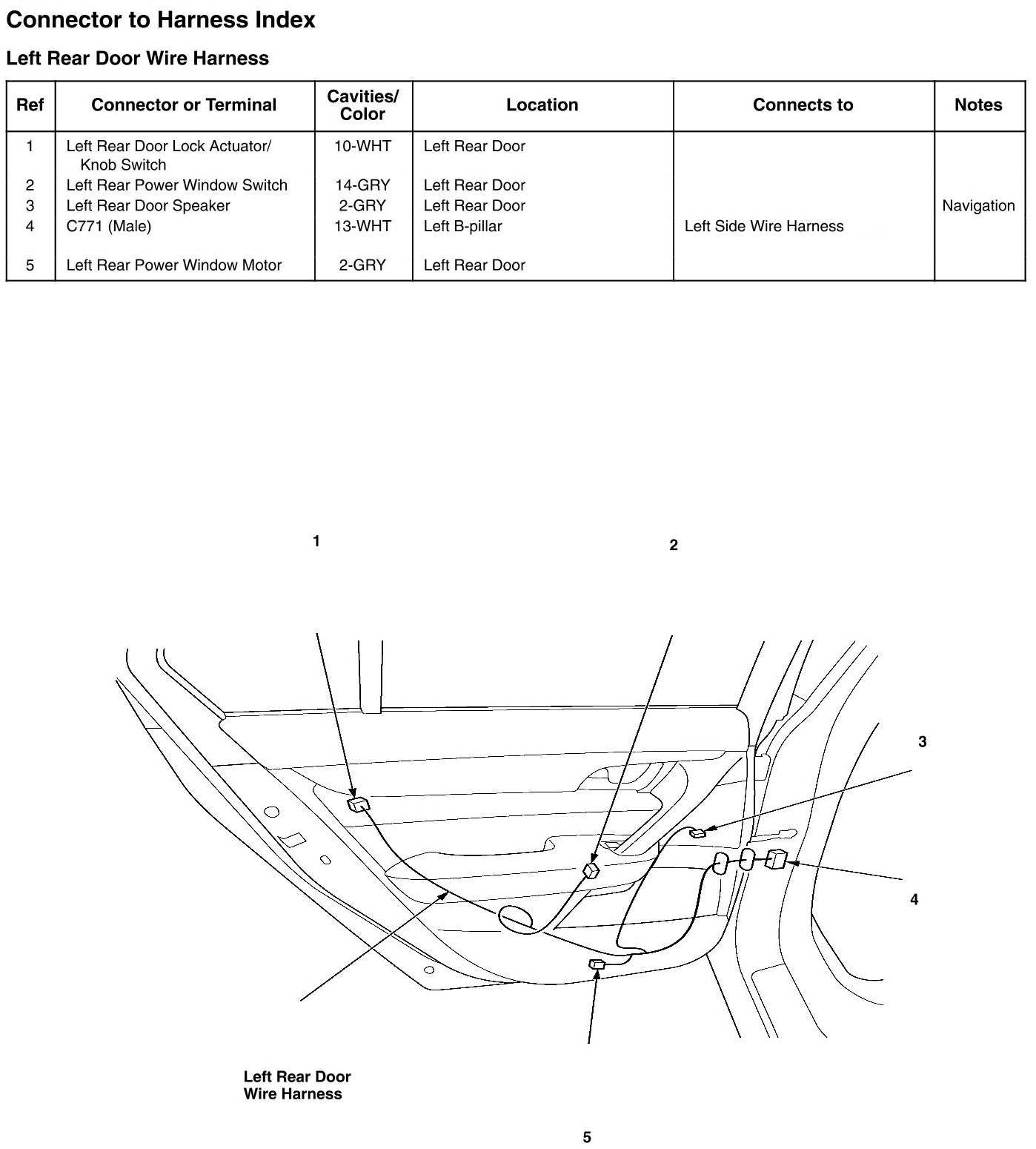

Left Rear Door Wire Harness Connector And Harness Locations
Left Rear Door Wire Harness Connector And Harness Locations
