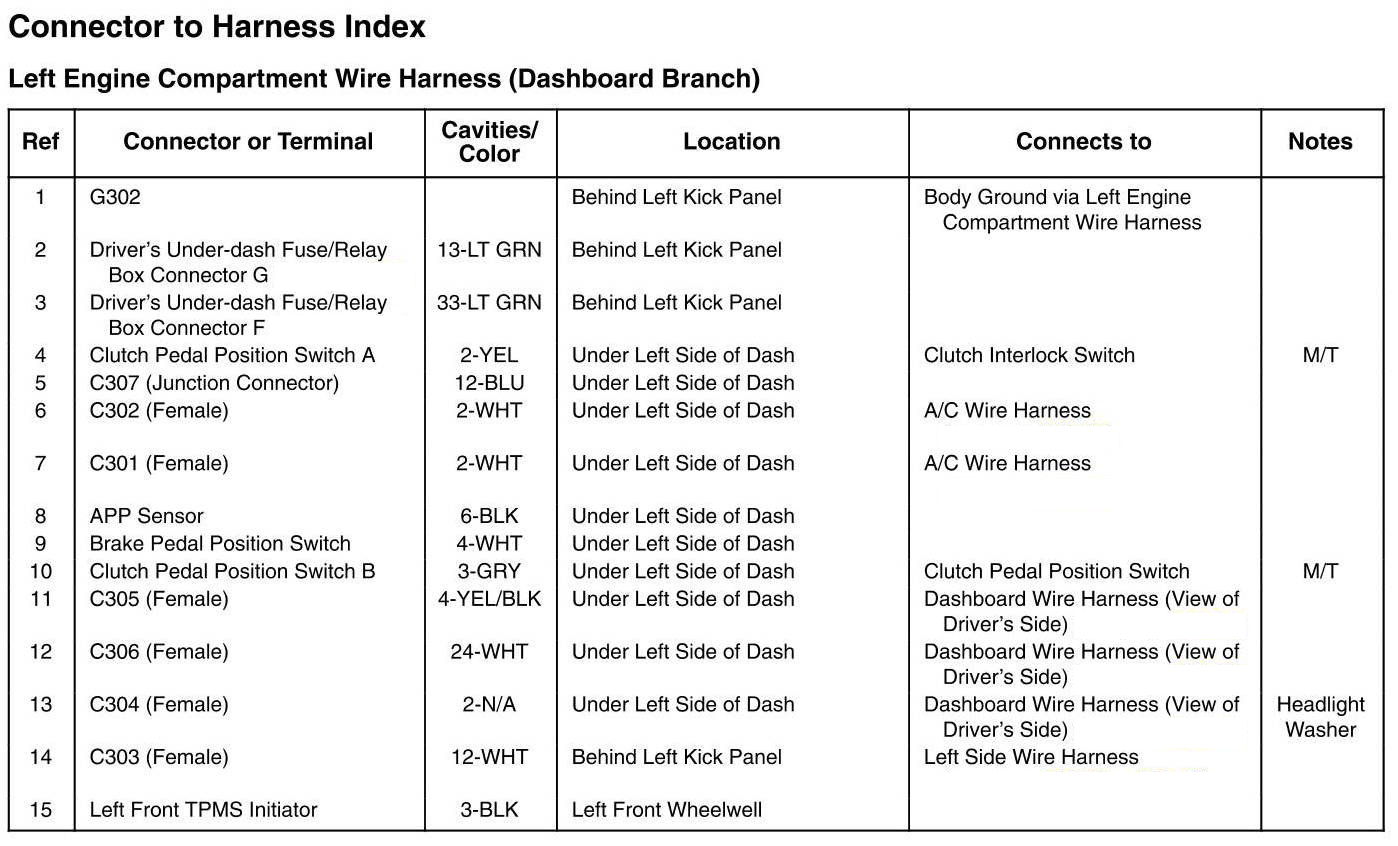

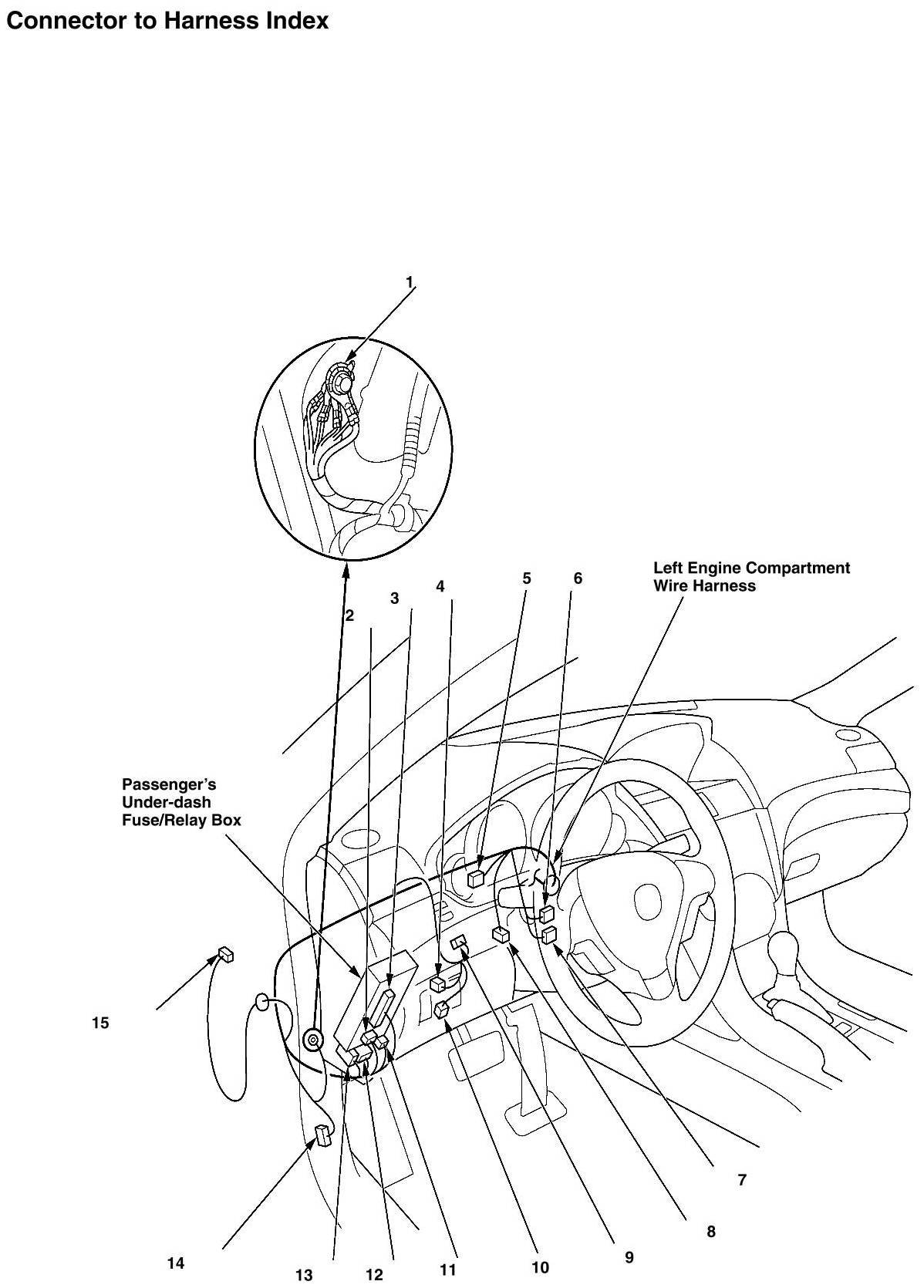

Left Engine Compartment Wire Harness (Dashboard Branch) Connector And Harness Locations
Left Engine Compartment Wire Harness (Dashboard Branch) Connector And Harness Locations
