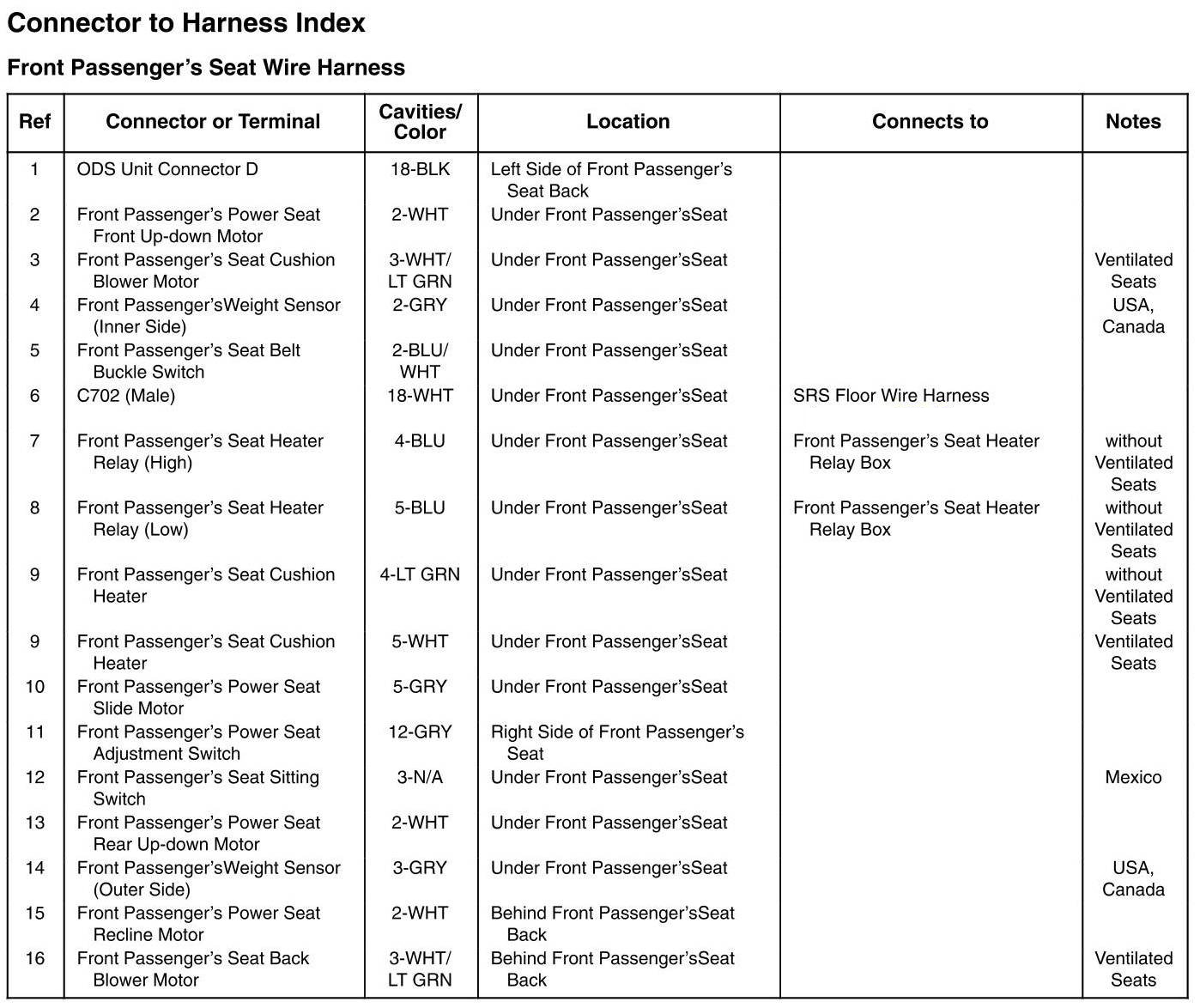

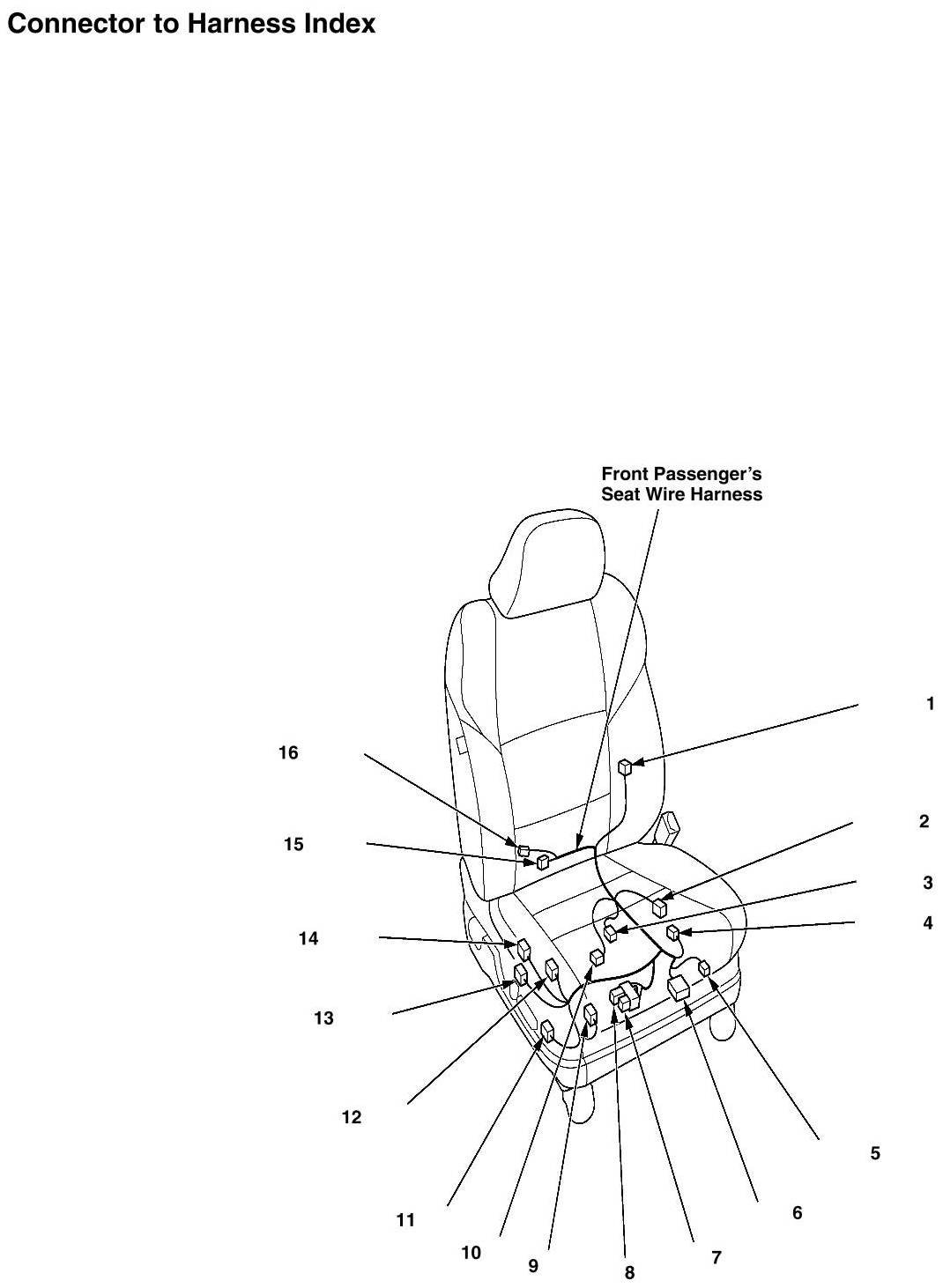

Front Passenger's Seat Wire Harness Connector And Harness Locations
Front Passenger's Seat Wire Harness Connector And Harness Locations
