Engine Wire Harness




Connector and Harness Locations

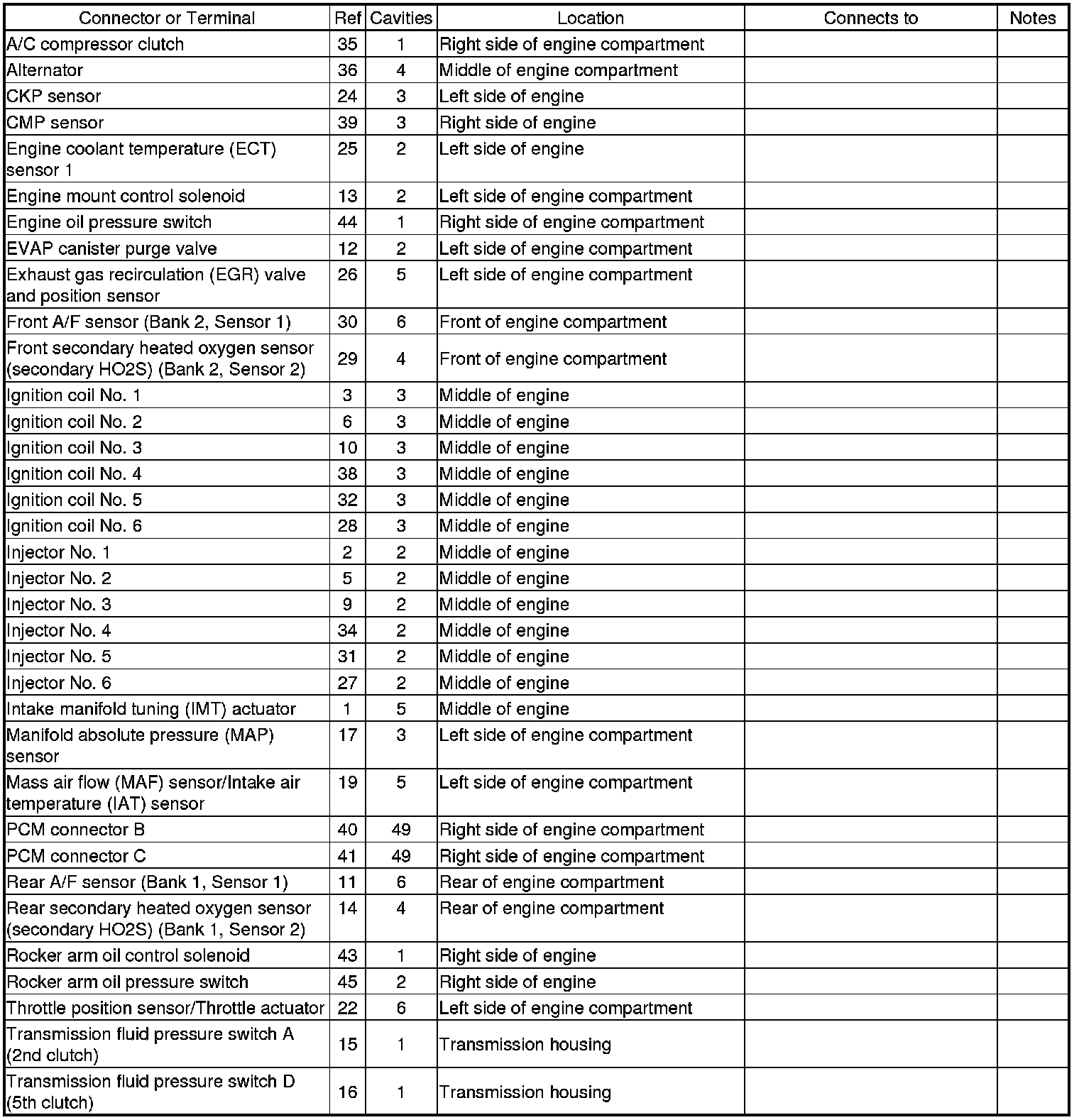

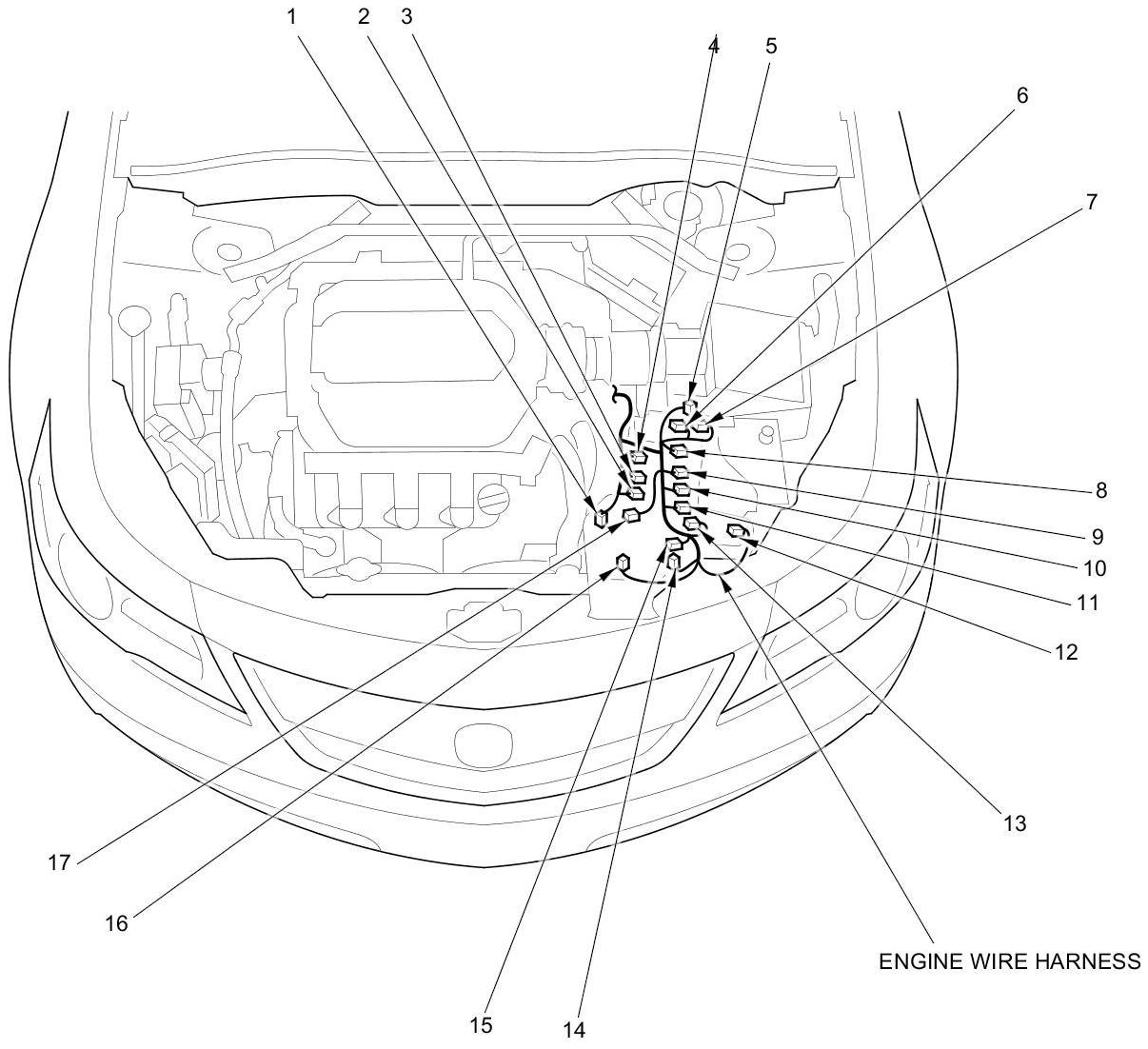

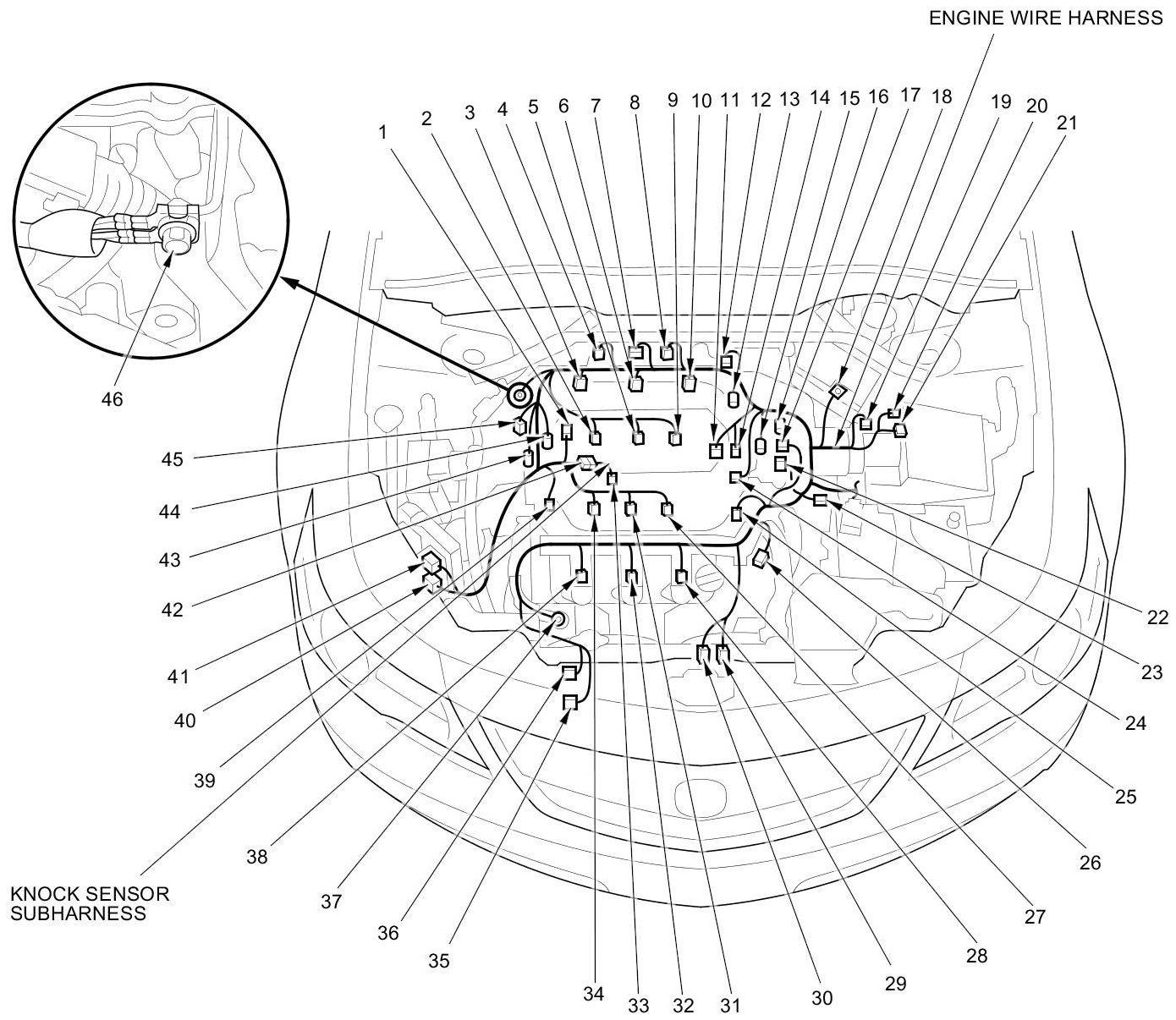

Engine Wire Harness (Engine Section) (A/T)

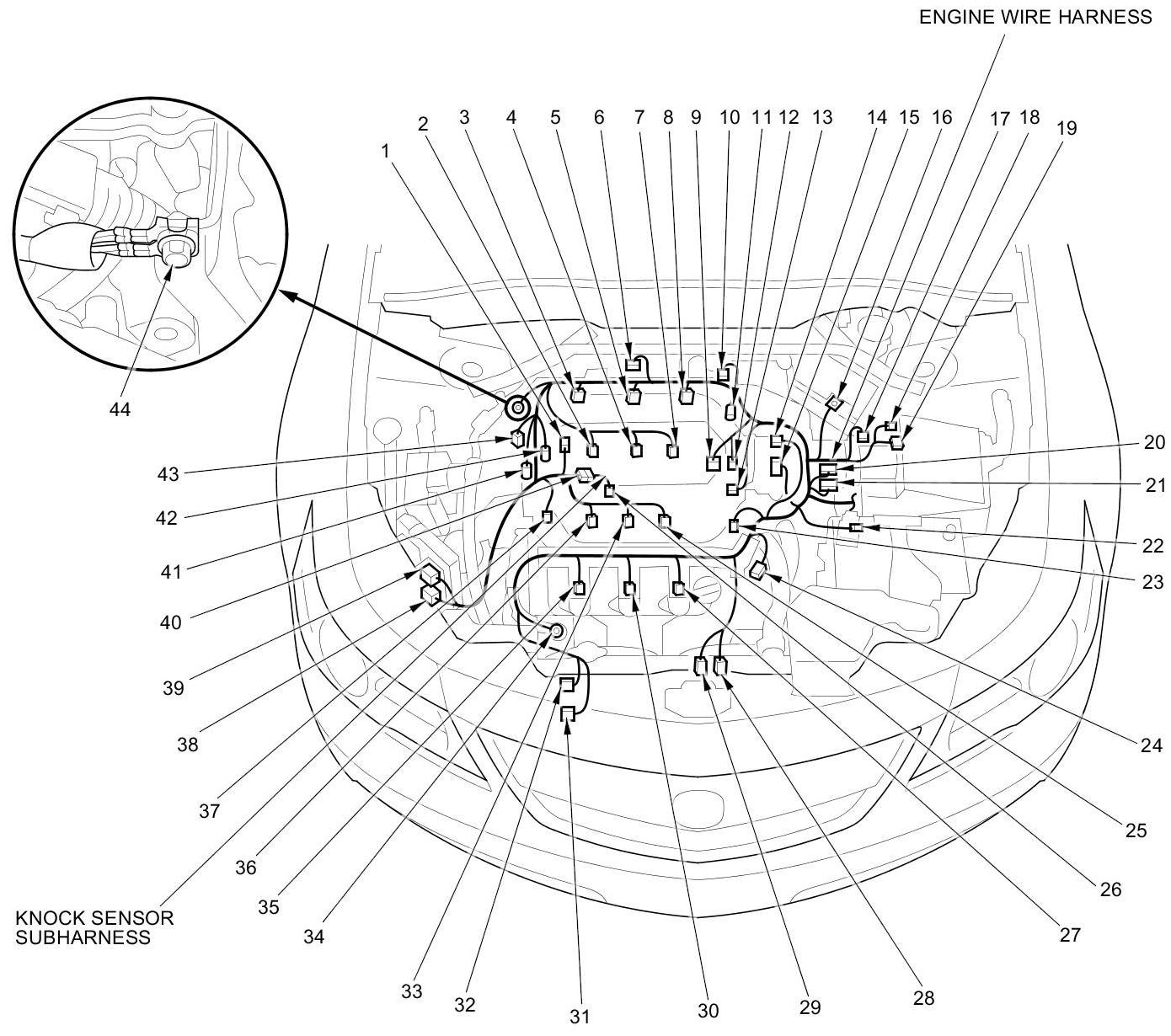

Engine Wire Harness (Engine Section) (A/T) (cont'd)

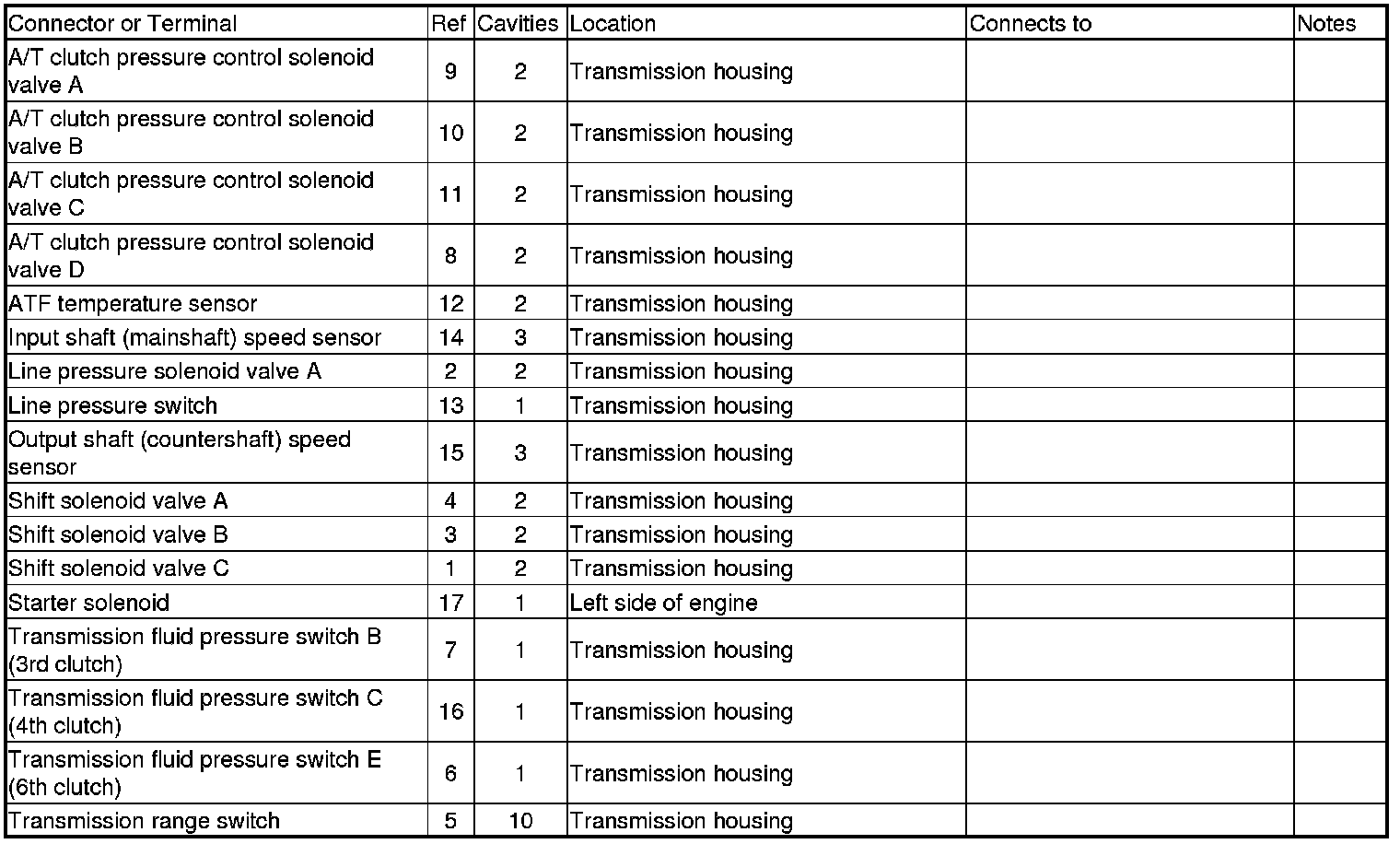

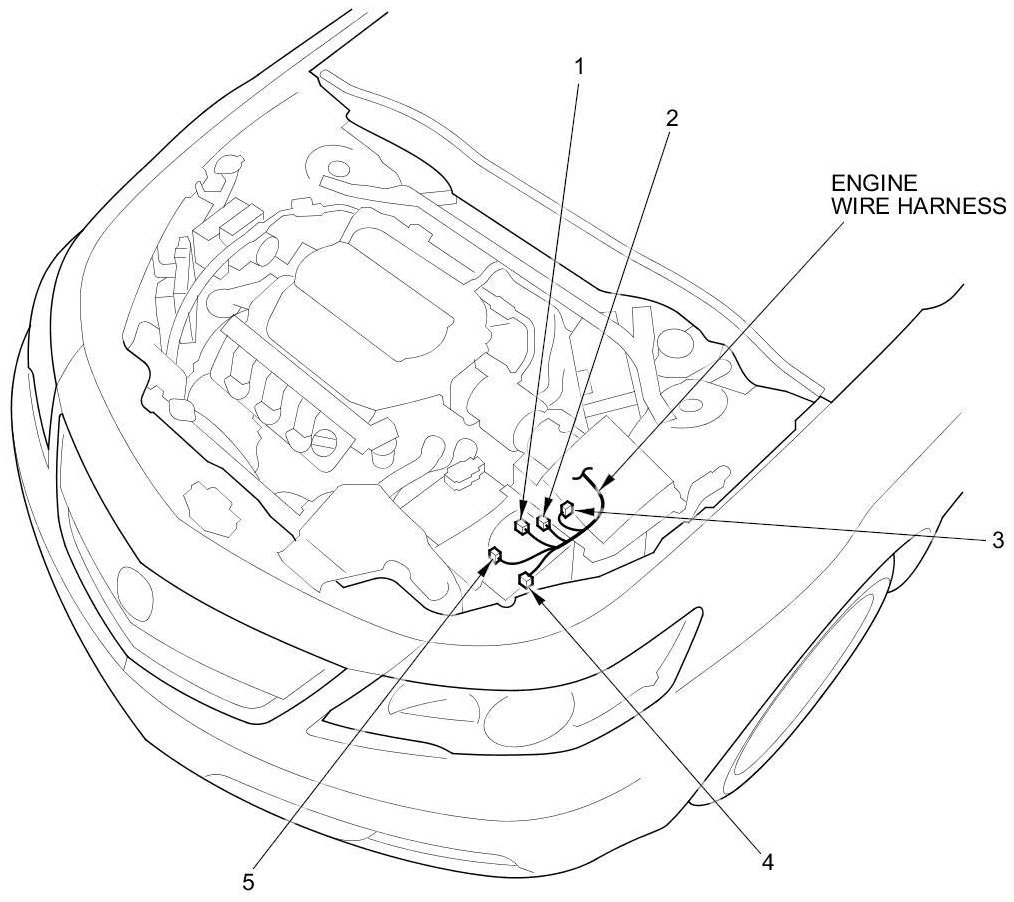

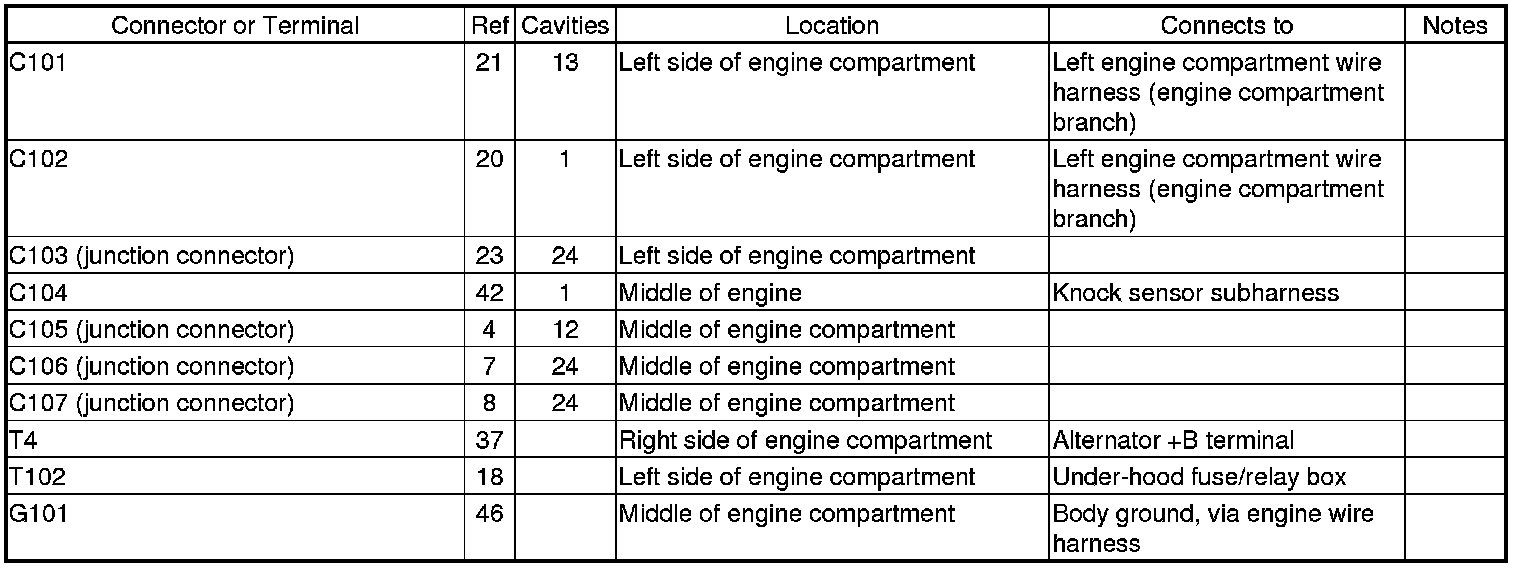

Engine Wire Harness (Transmission Section) (A/T)









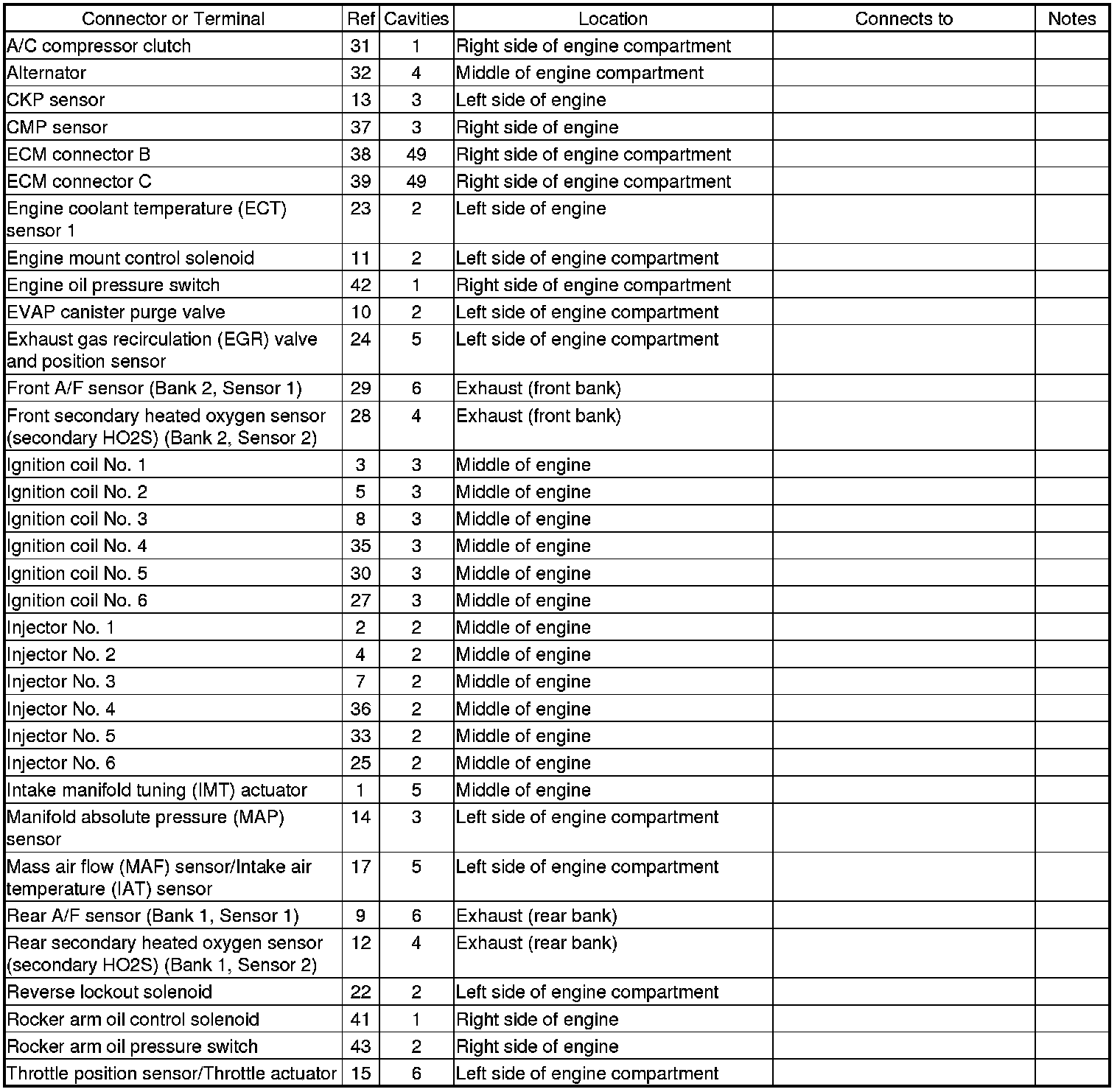

Engine Wire Harness (Engine Section) (M/T)










Engine Wire Harness (Engine Section) (M/T) (cont'd)






Engine Wire Harness (Transmission Section) (M/T)
