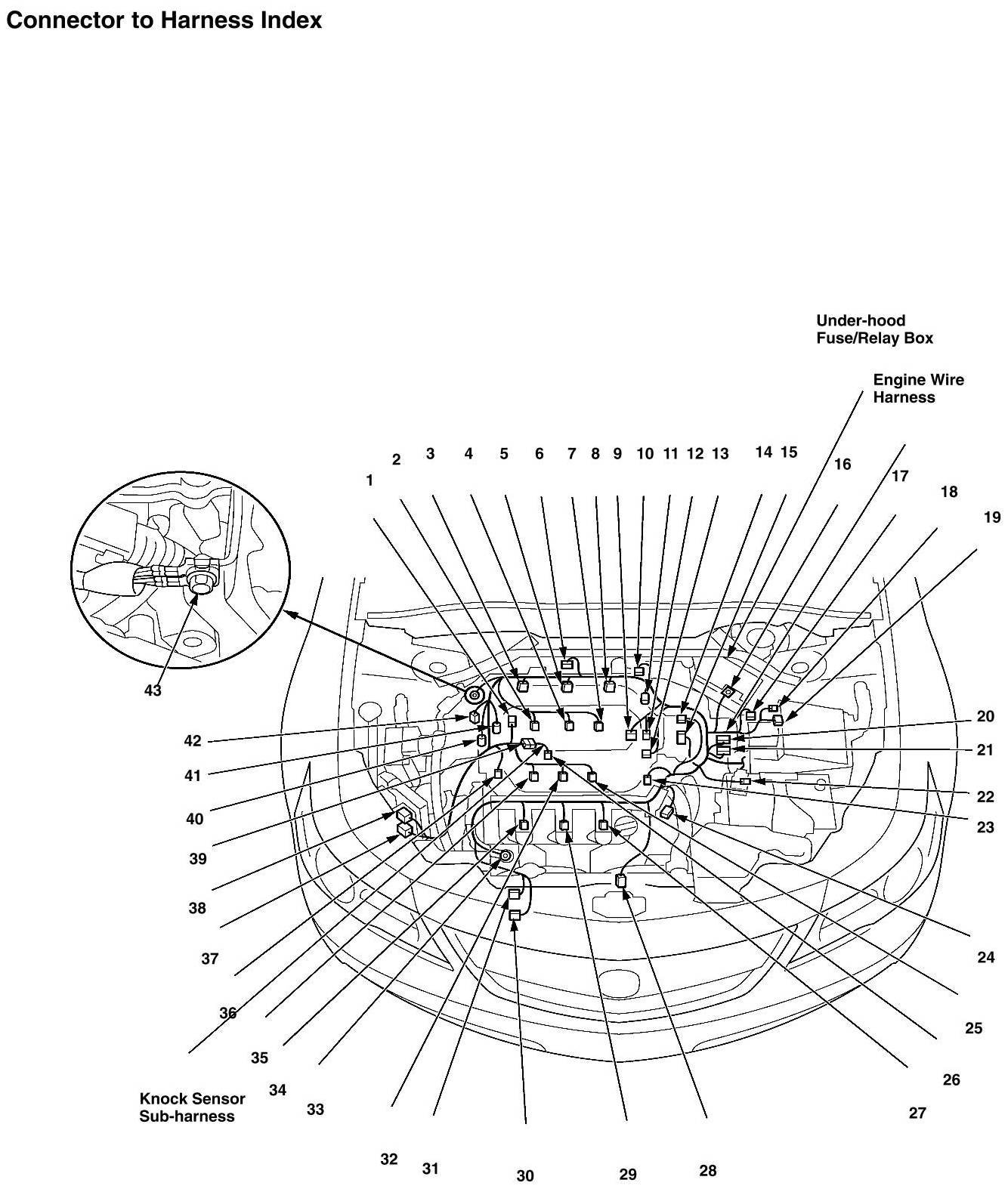

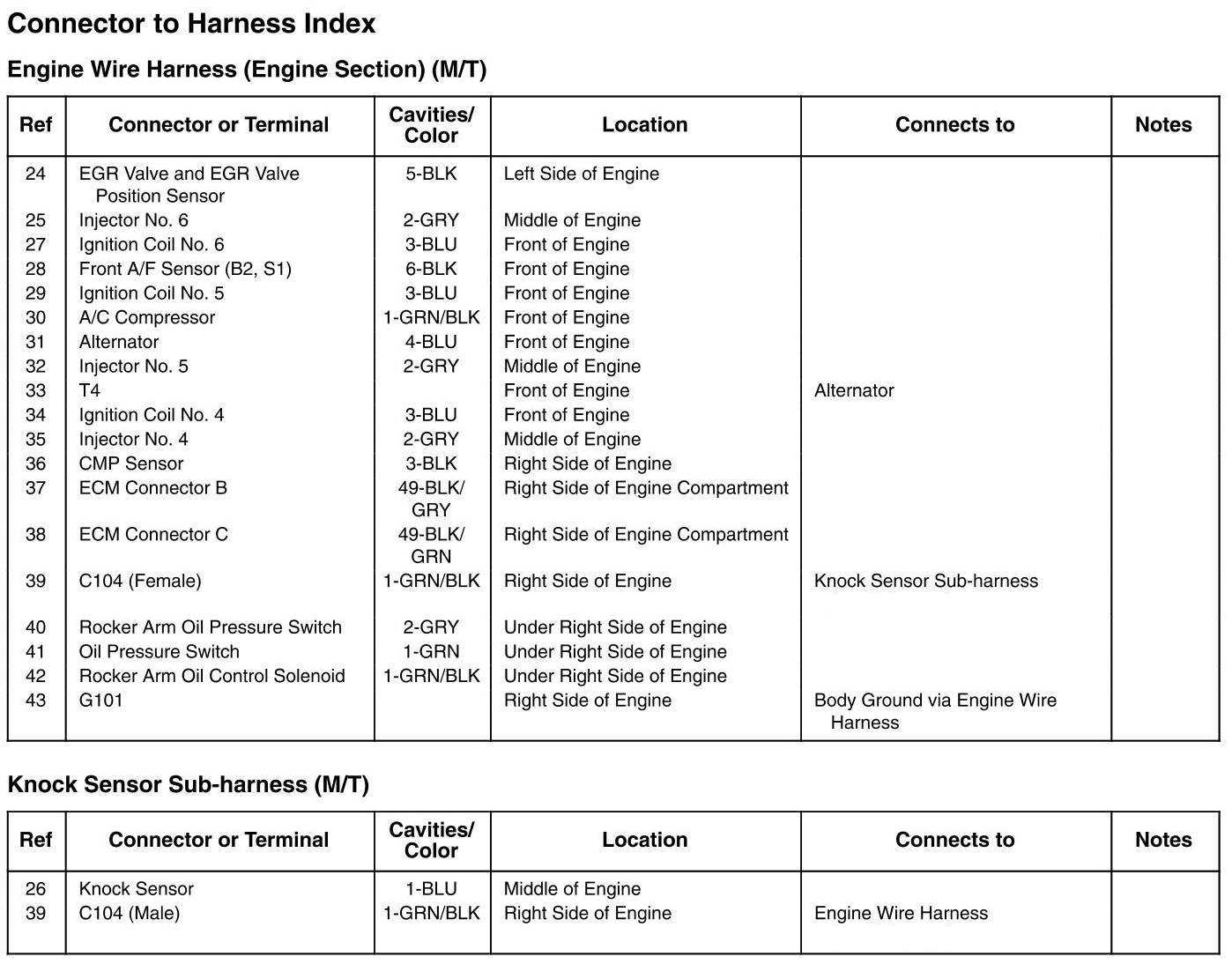

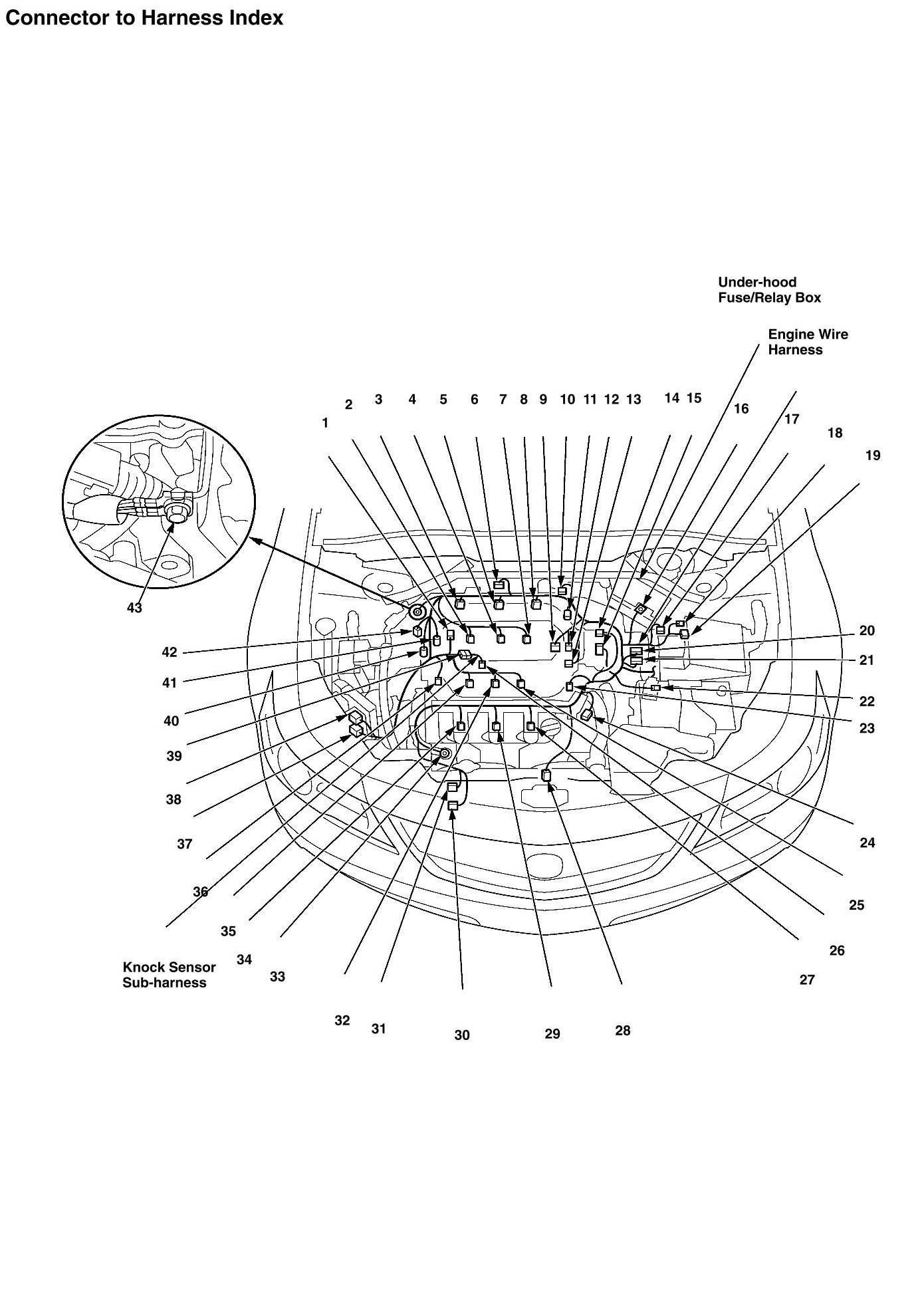

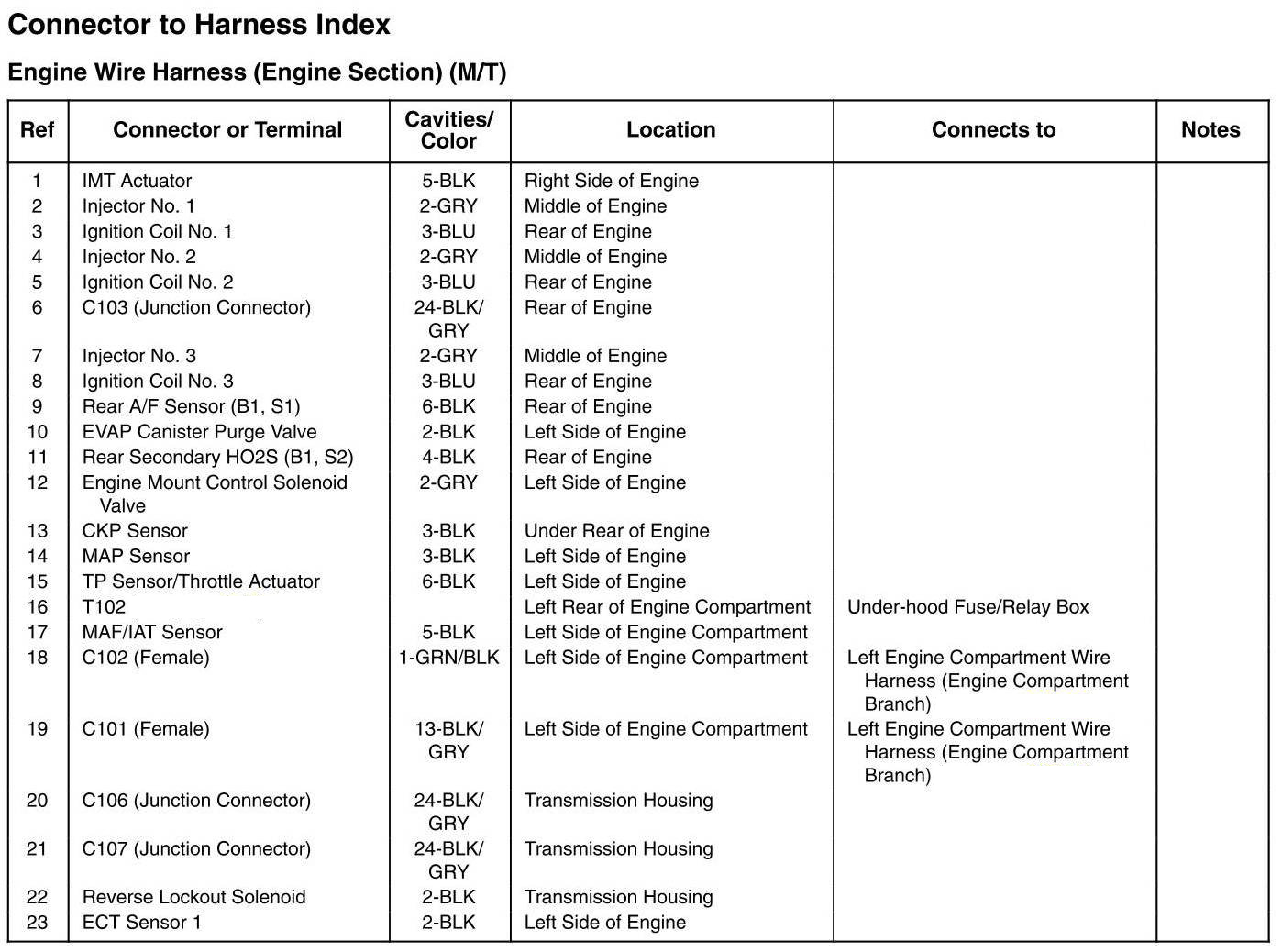

Engine Wire Harness (Engine Section) And Knock Sensor Sub-harness Connector And Harness Locations (M/T)
Engine Wire Harness (Engine Section) And Knock Sensor Sub-harness Connector And Harness Locations (M/T)
