Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Driver's Door Wire Harness And Driver's Door Sub-harness Connector And Harness Locations

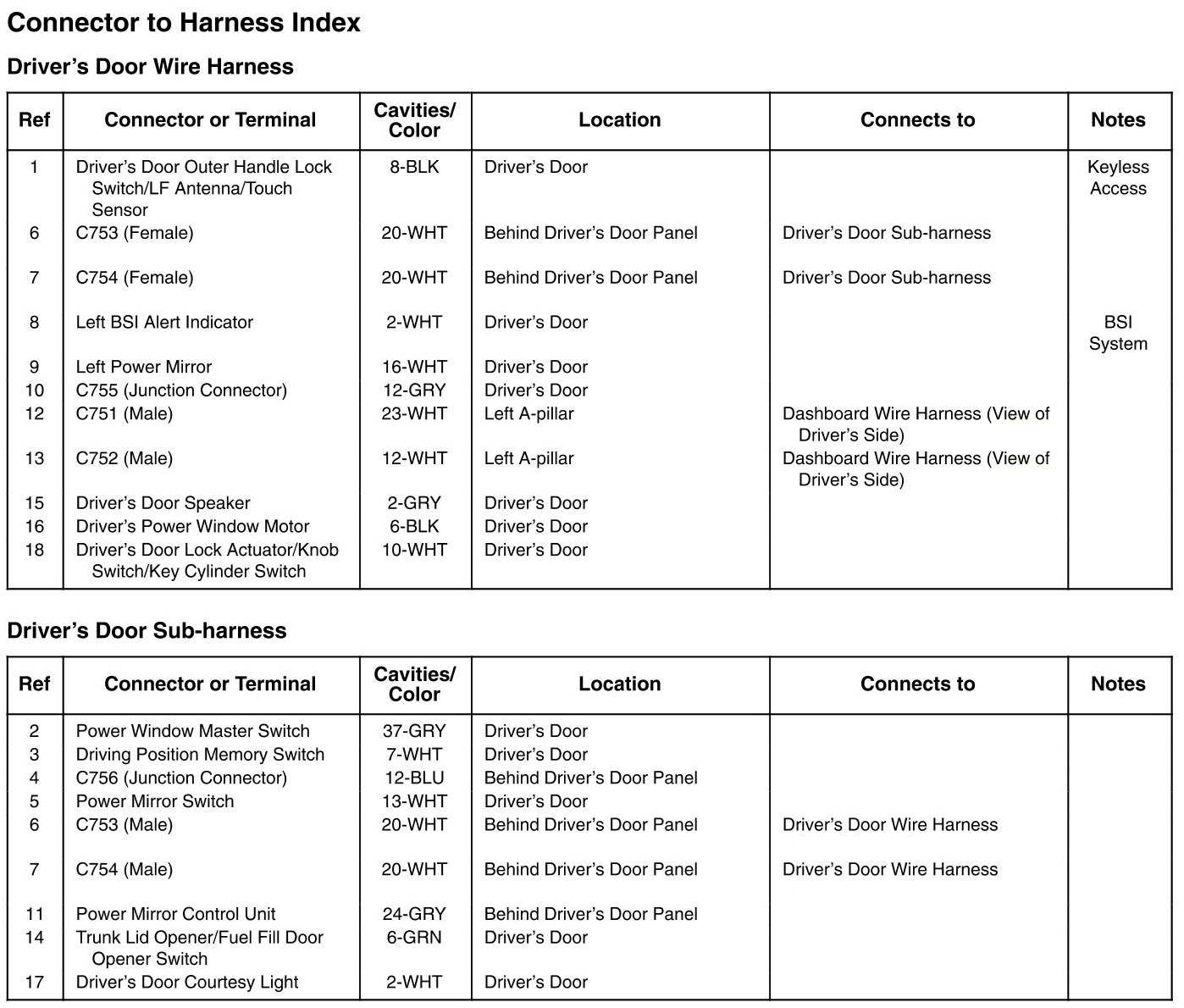

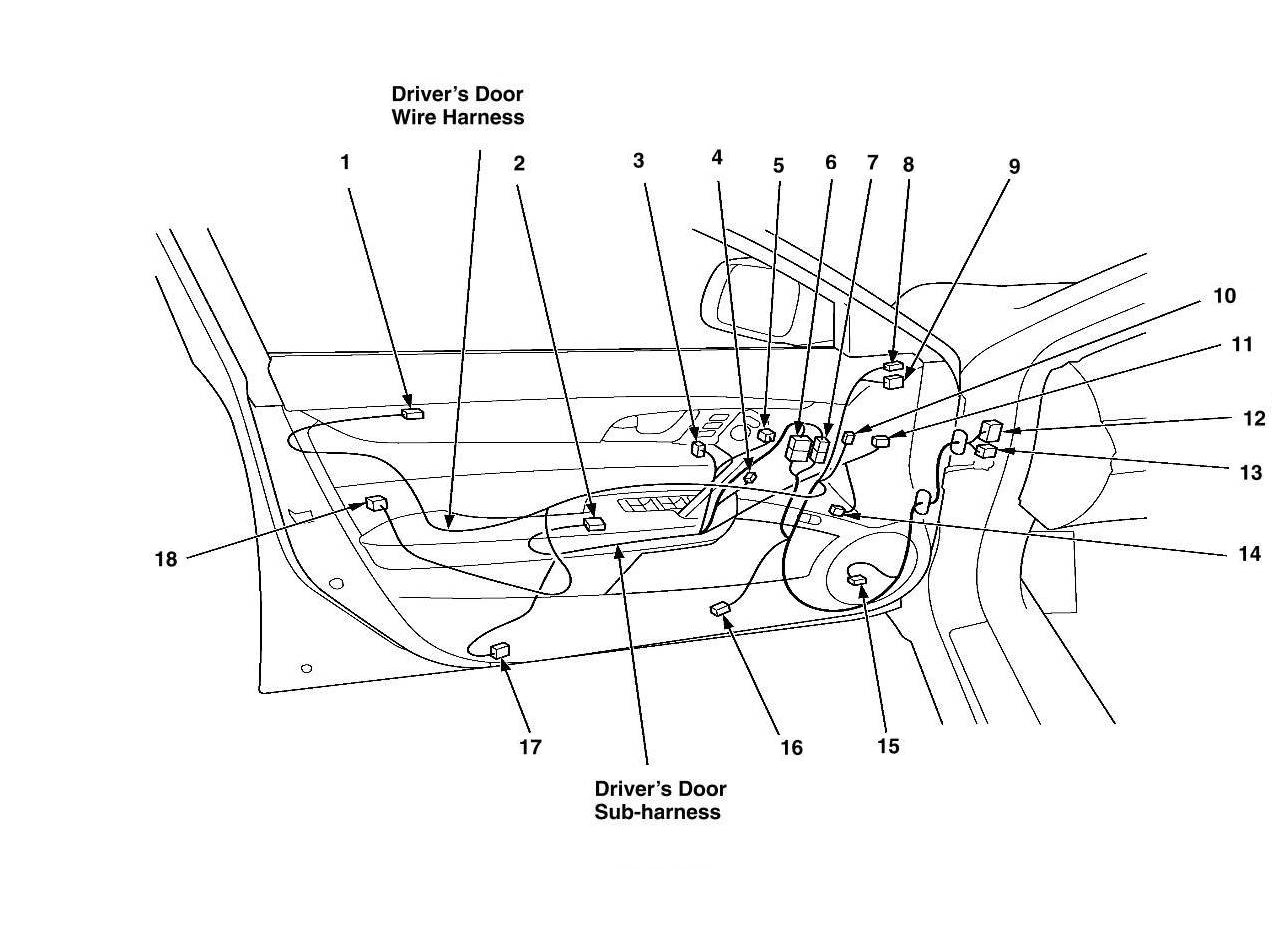

Driver's Door Wire Harness And Driver's Door Sub-harness Connector And Harness Locations
