Dashboard Wire Harness, Console Subharness




Connector and Harness Locations

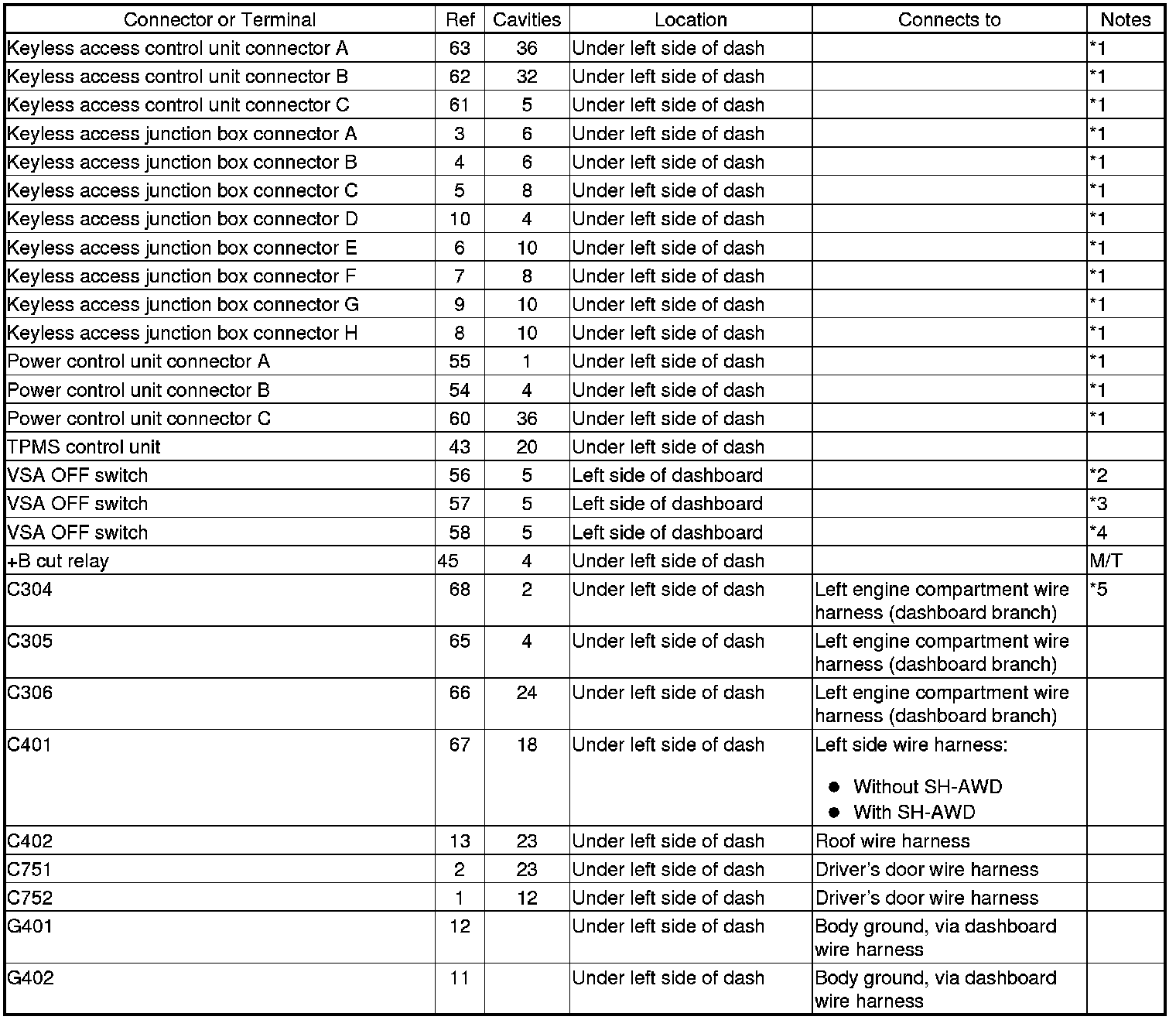

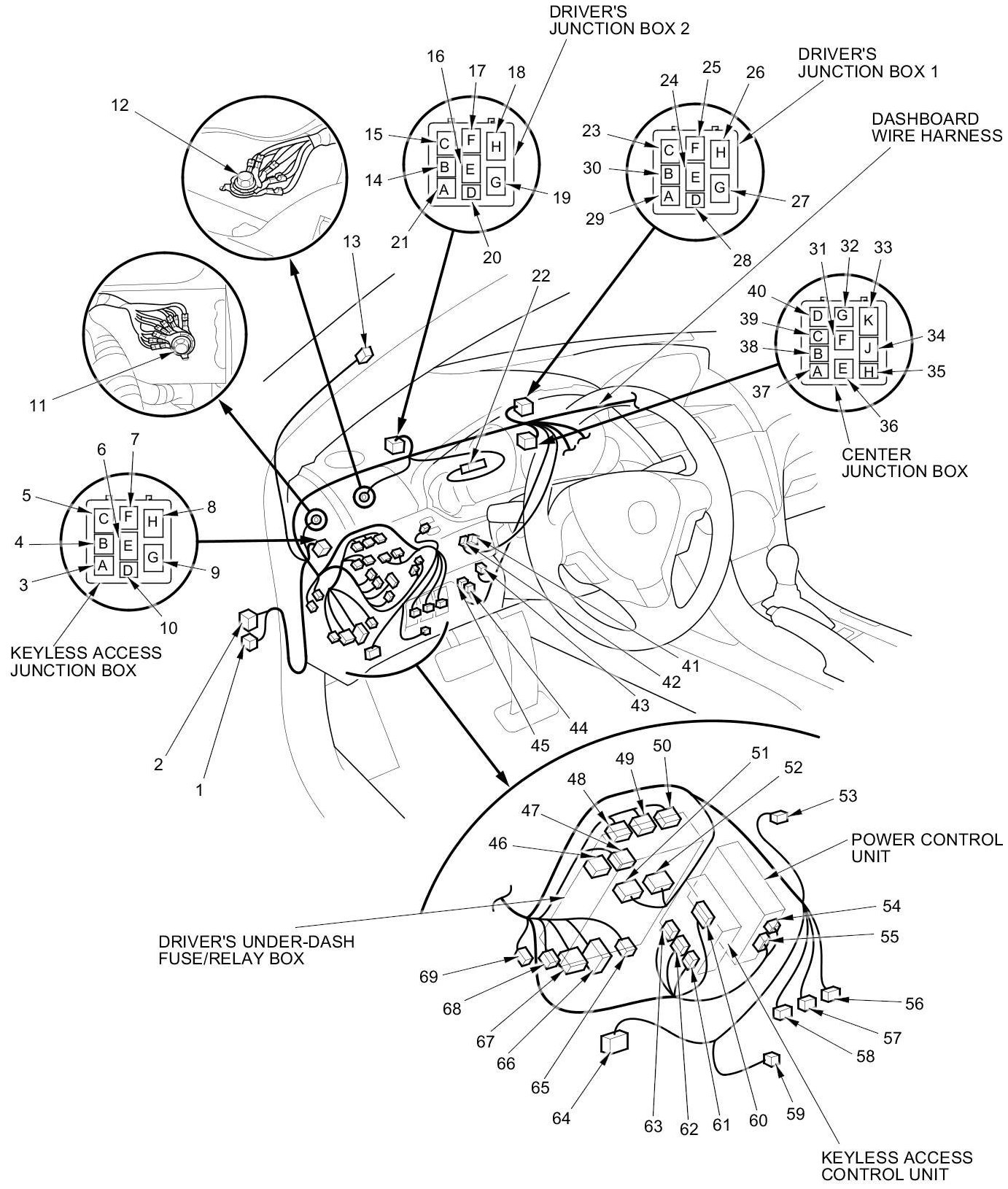

Dashboard Wire Harness (View of Driver's Side)

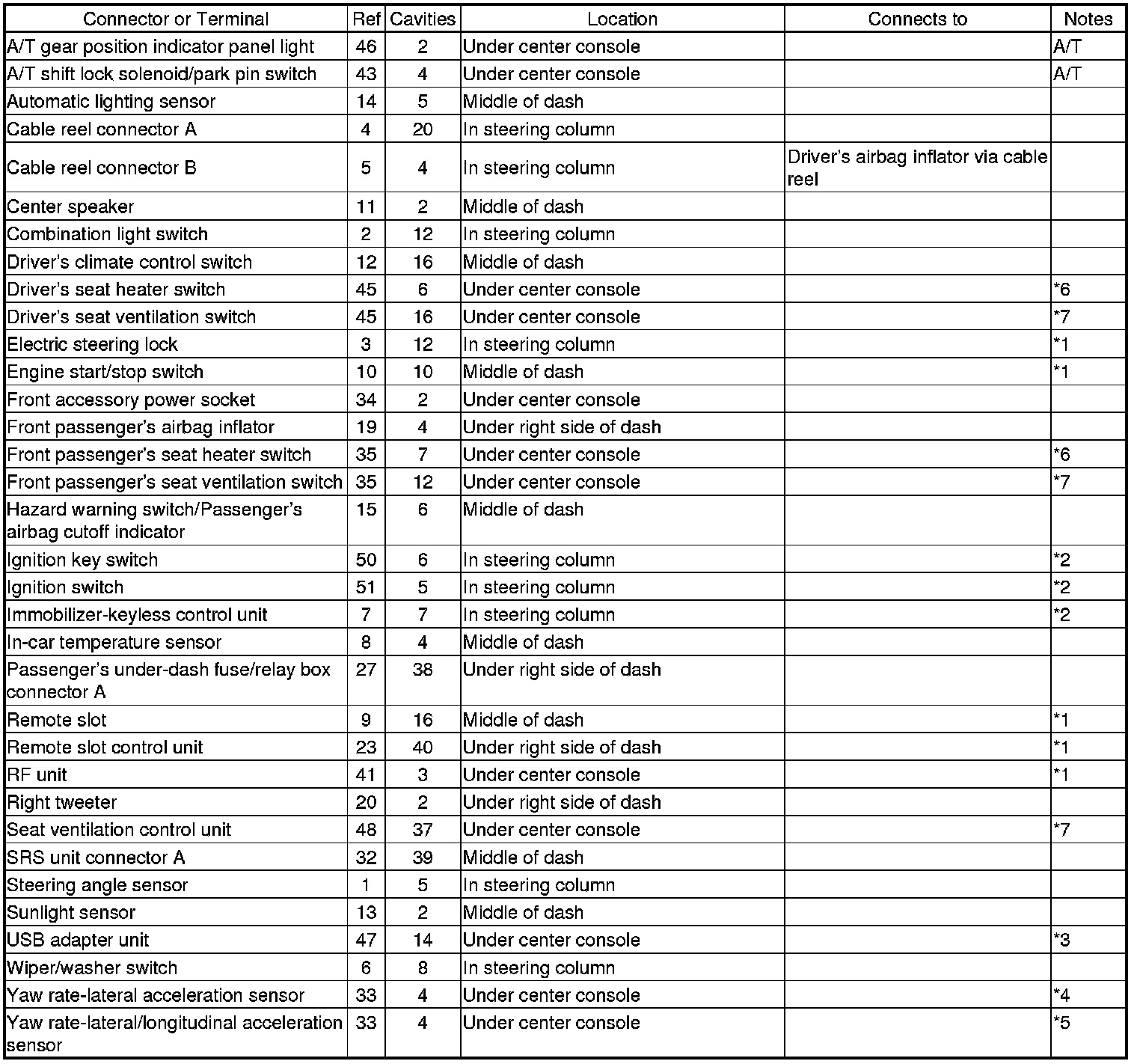

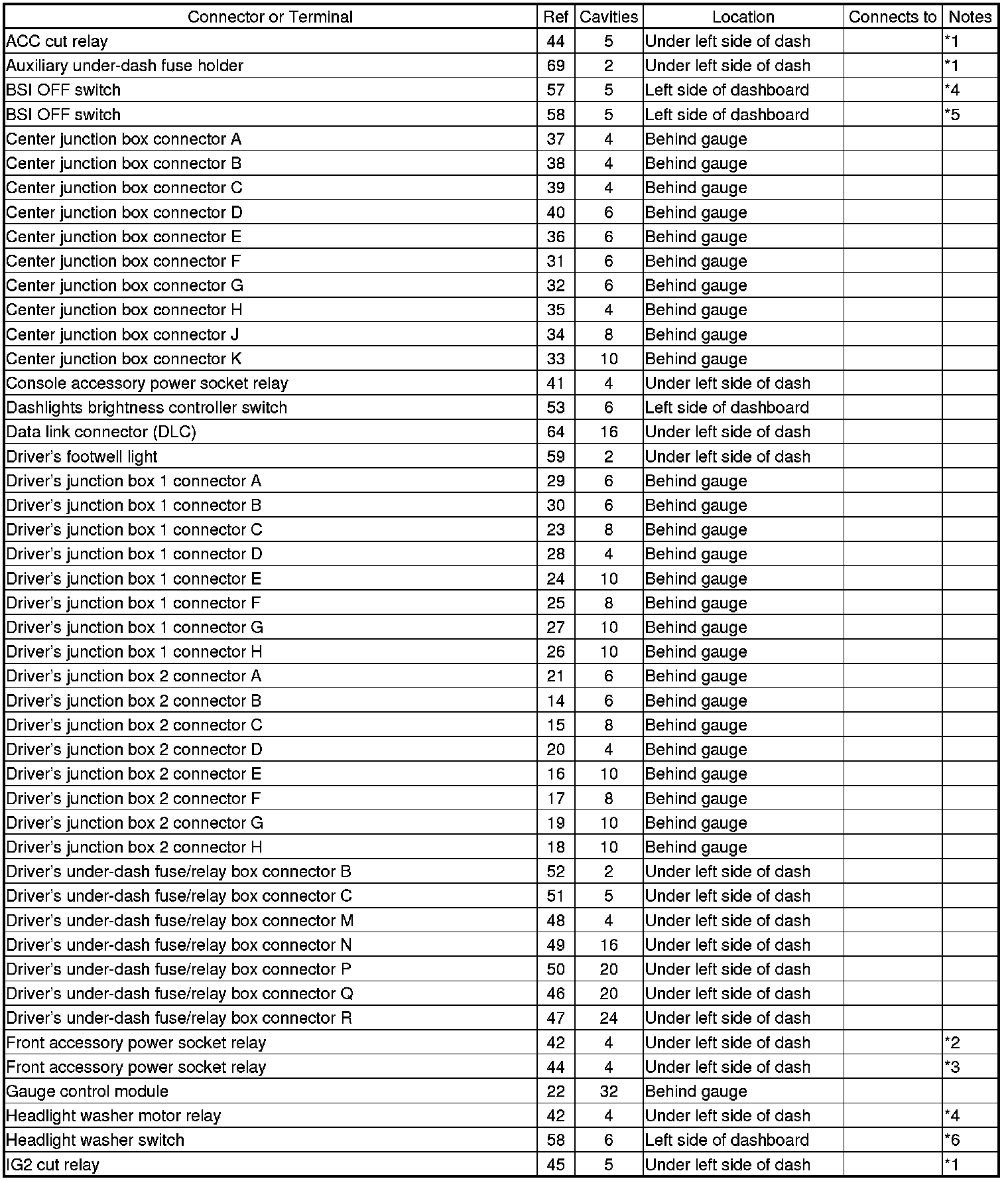

Dashboard Wire Harness (View of Driver's Side) (cont'd)

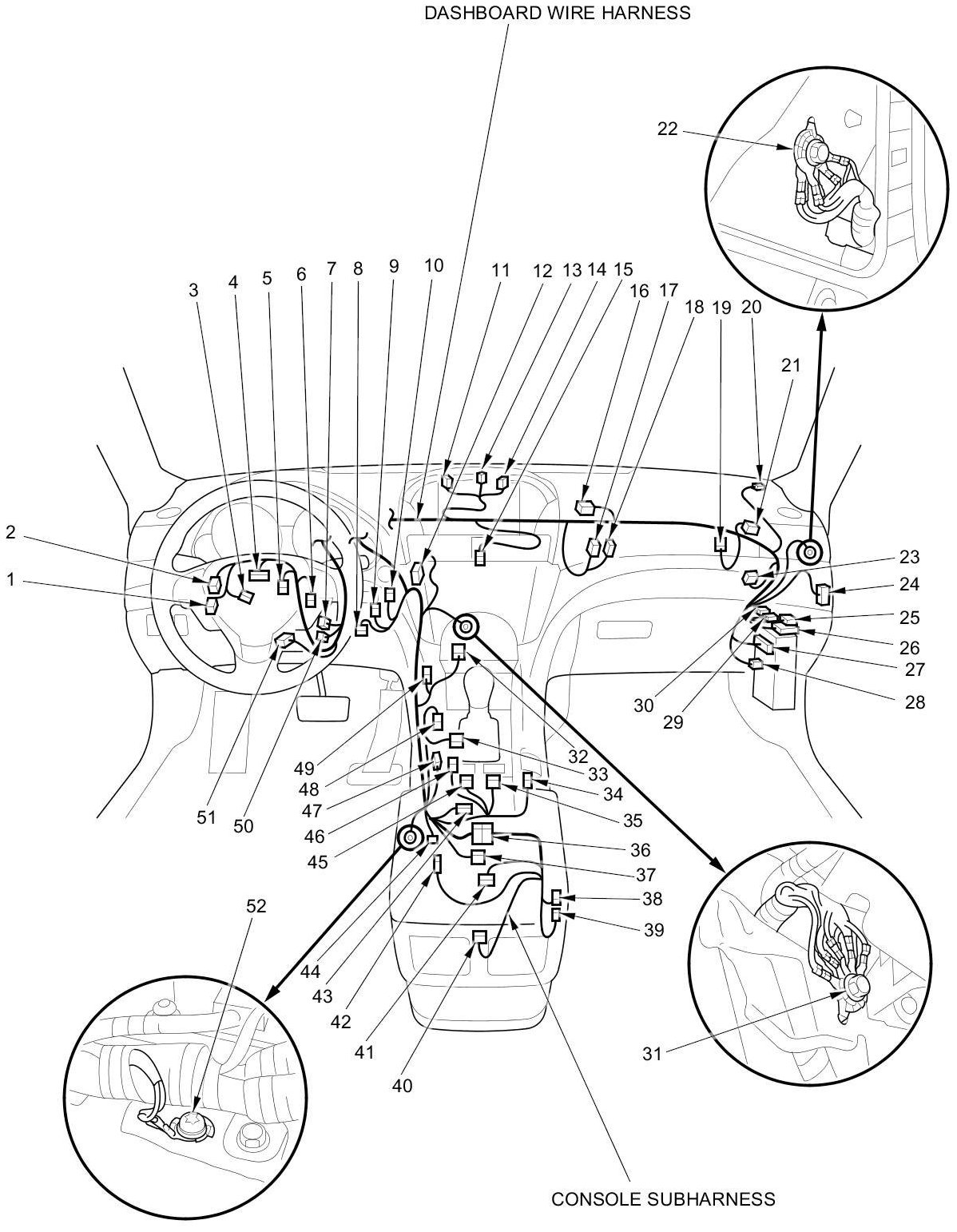

Dashboard Wire Harness (View of Middle to Passenger's Side)

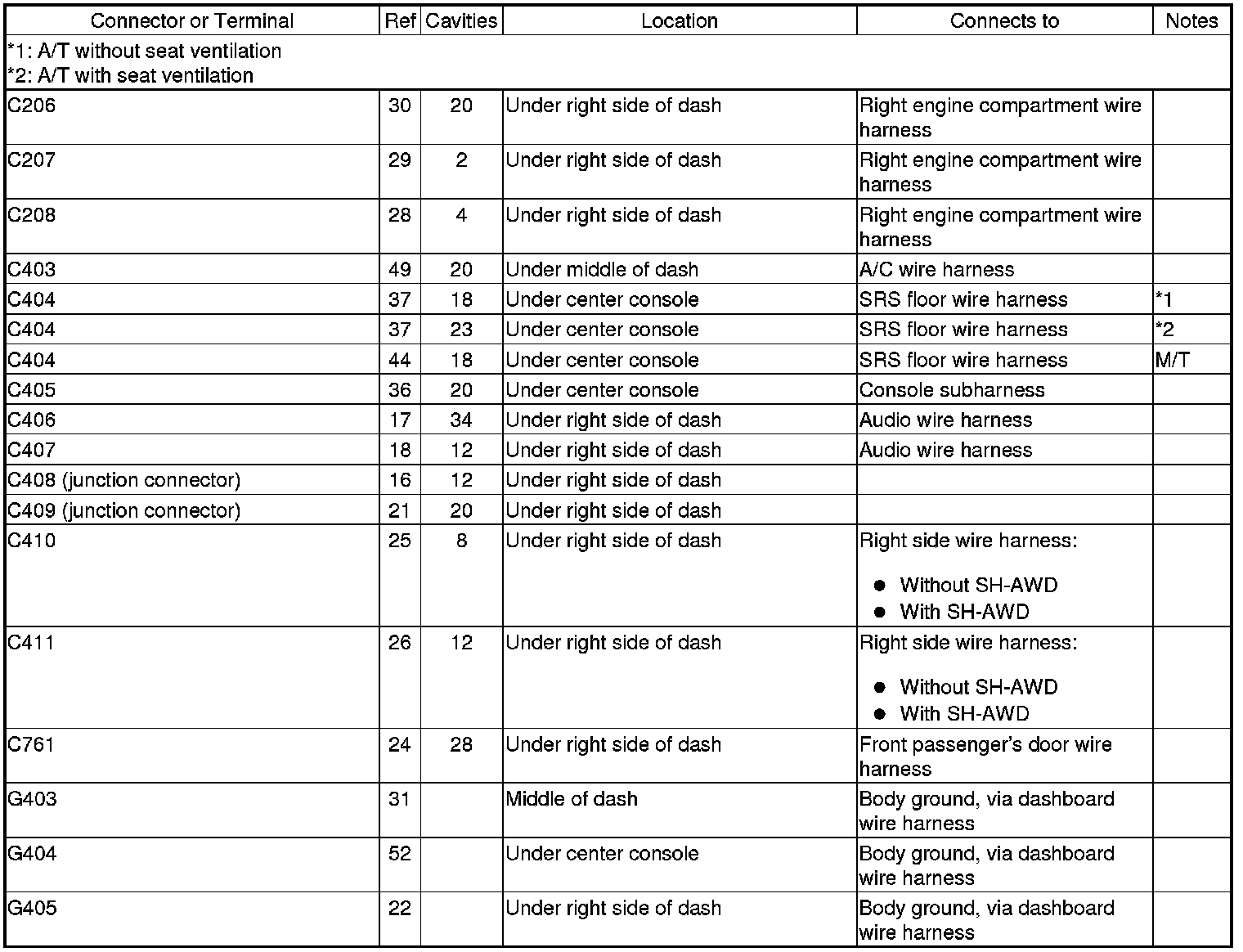

Dashboard Wire Harness (View of Middle to Passenger's Side) (cont'd)
