Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Dashboard Wire Harness (View of Middle to Passenger's Side) And Console Sub-Harness Connector And Harness Locations

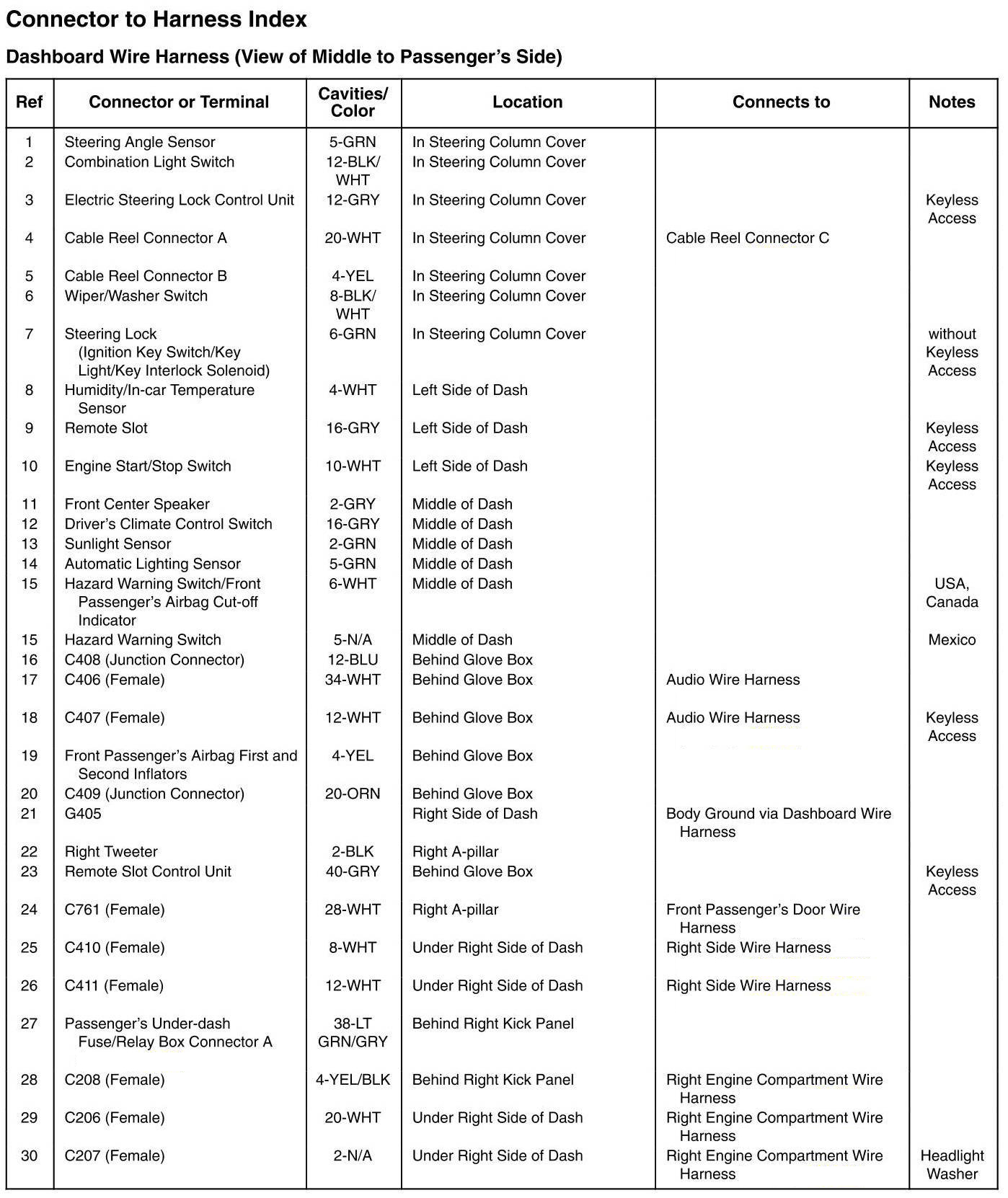

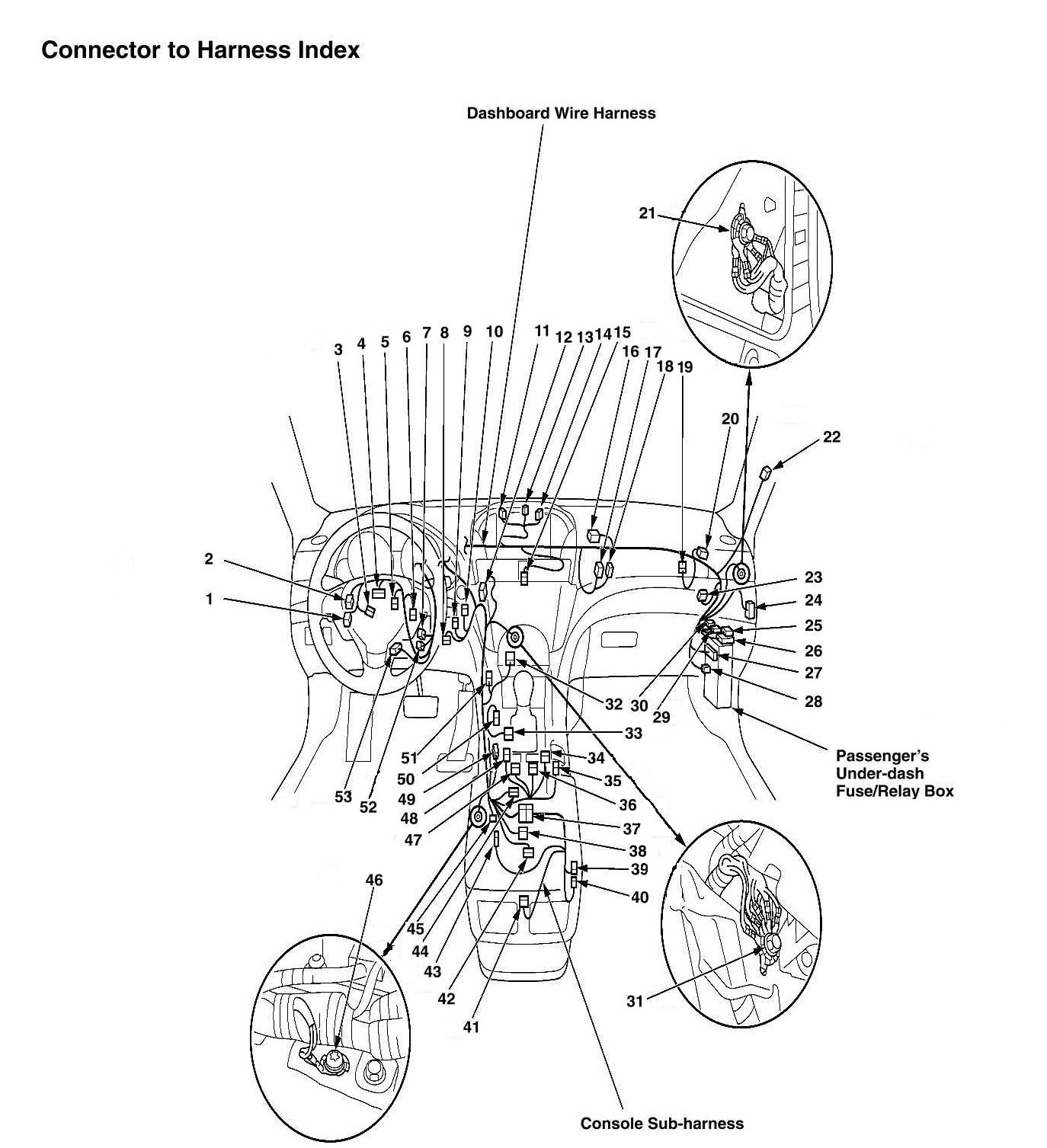

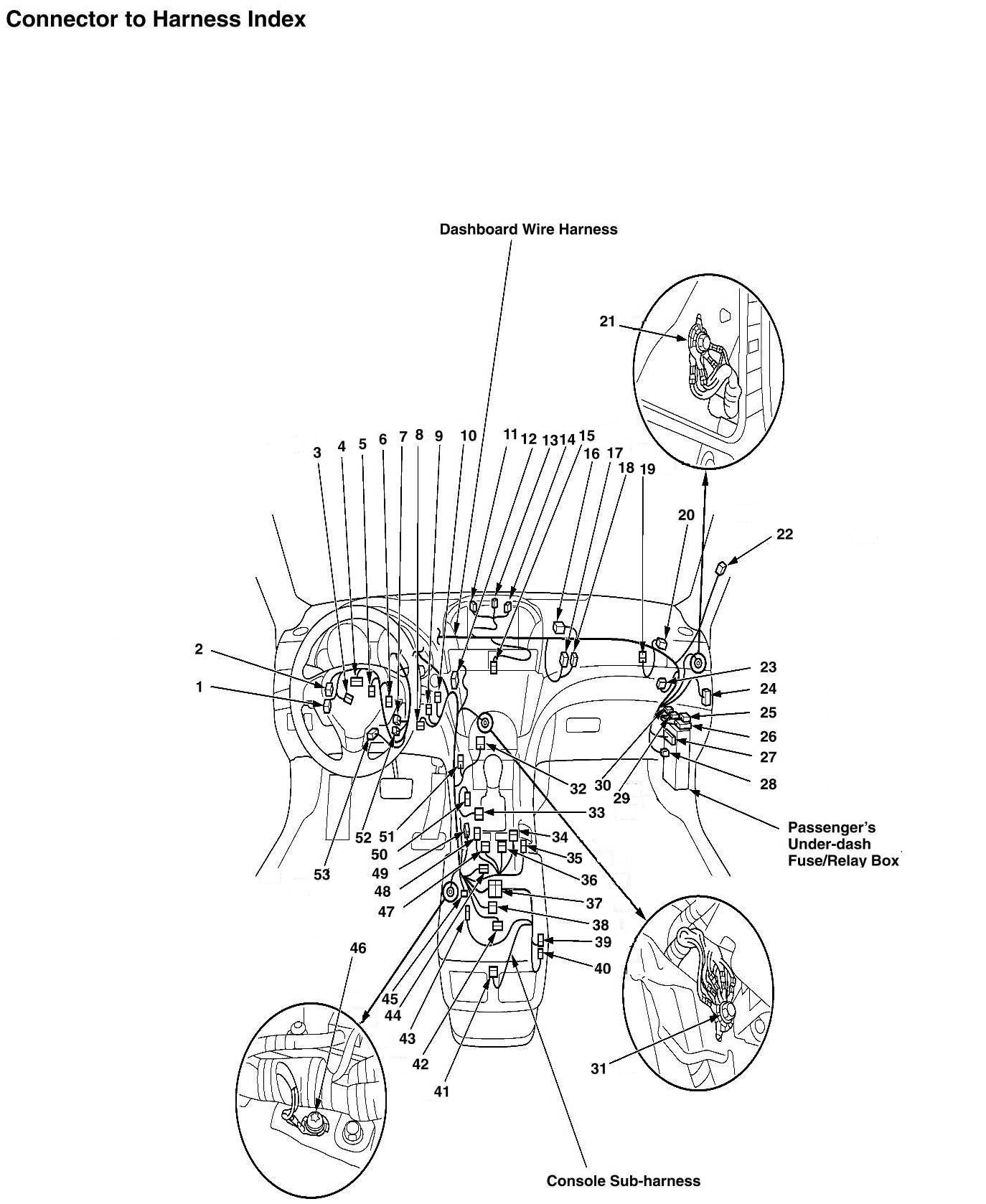

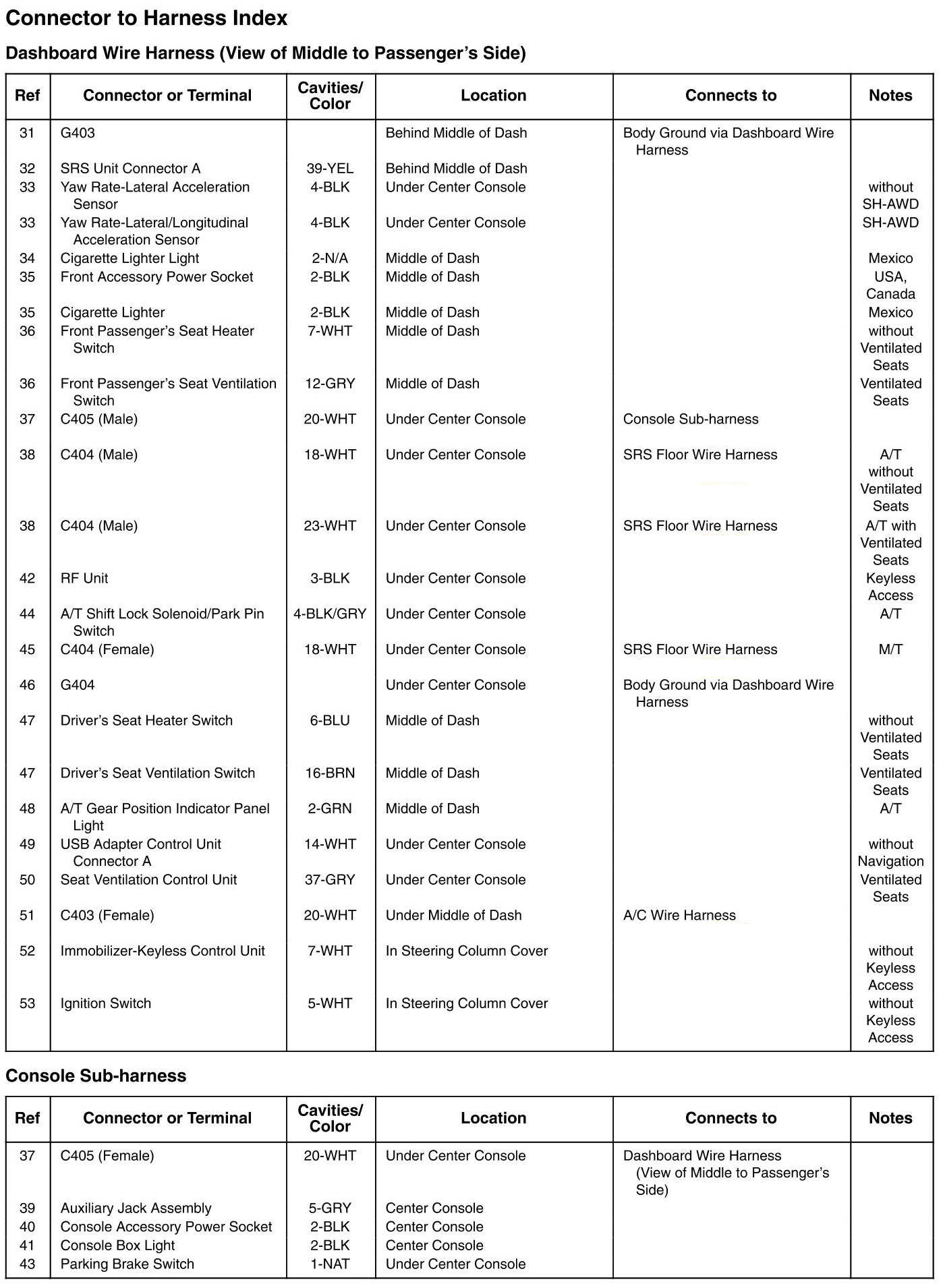

Dashboard Wire Harness (View of Middle to Passenger's Side) And Console Sub-Harness Connector And Harness Locations
