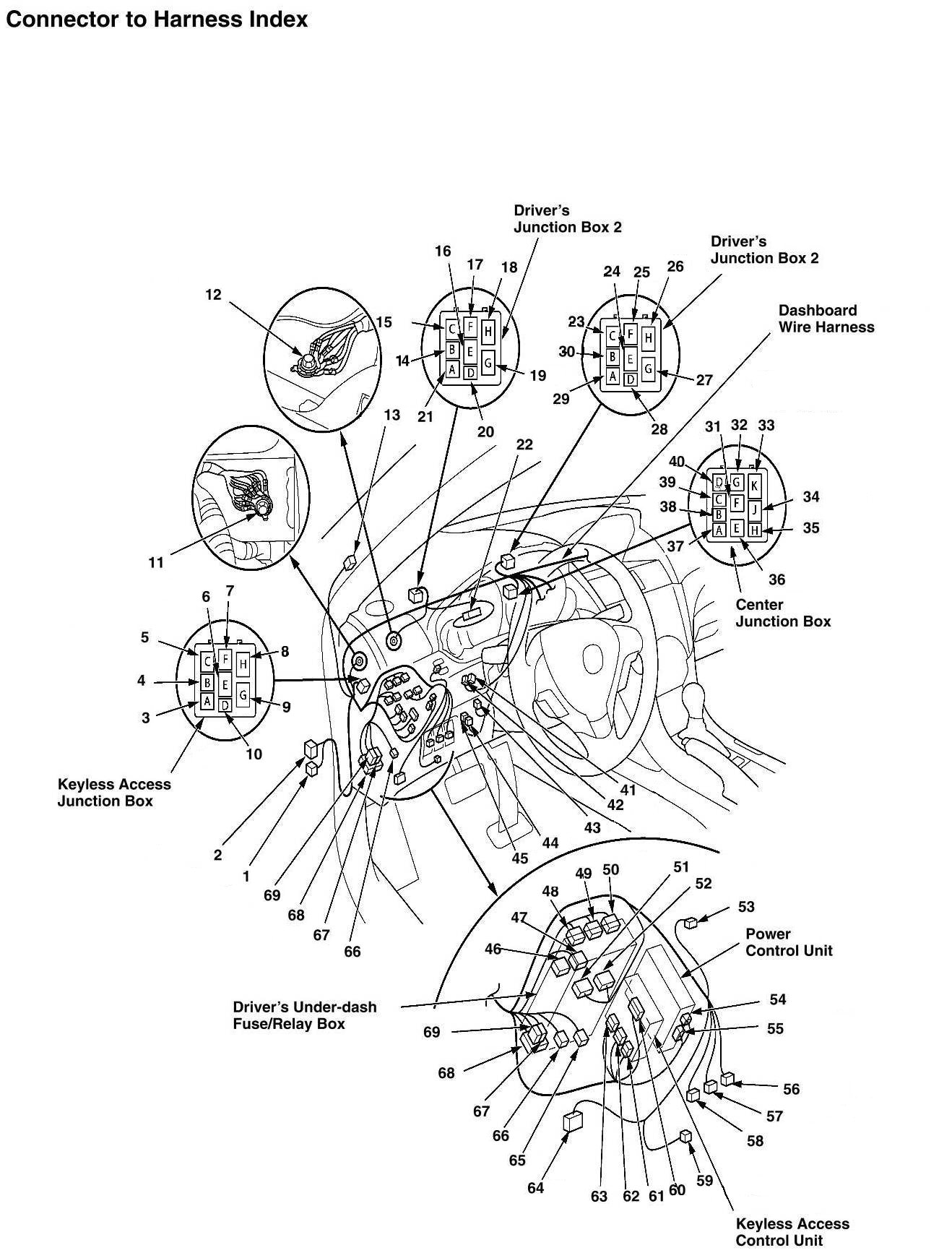

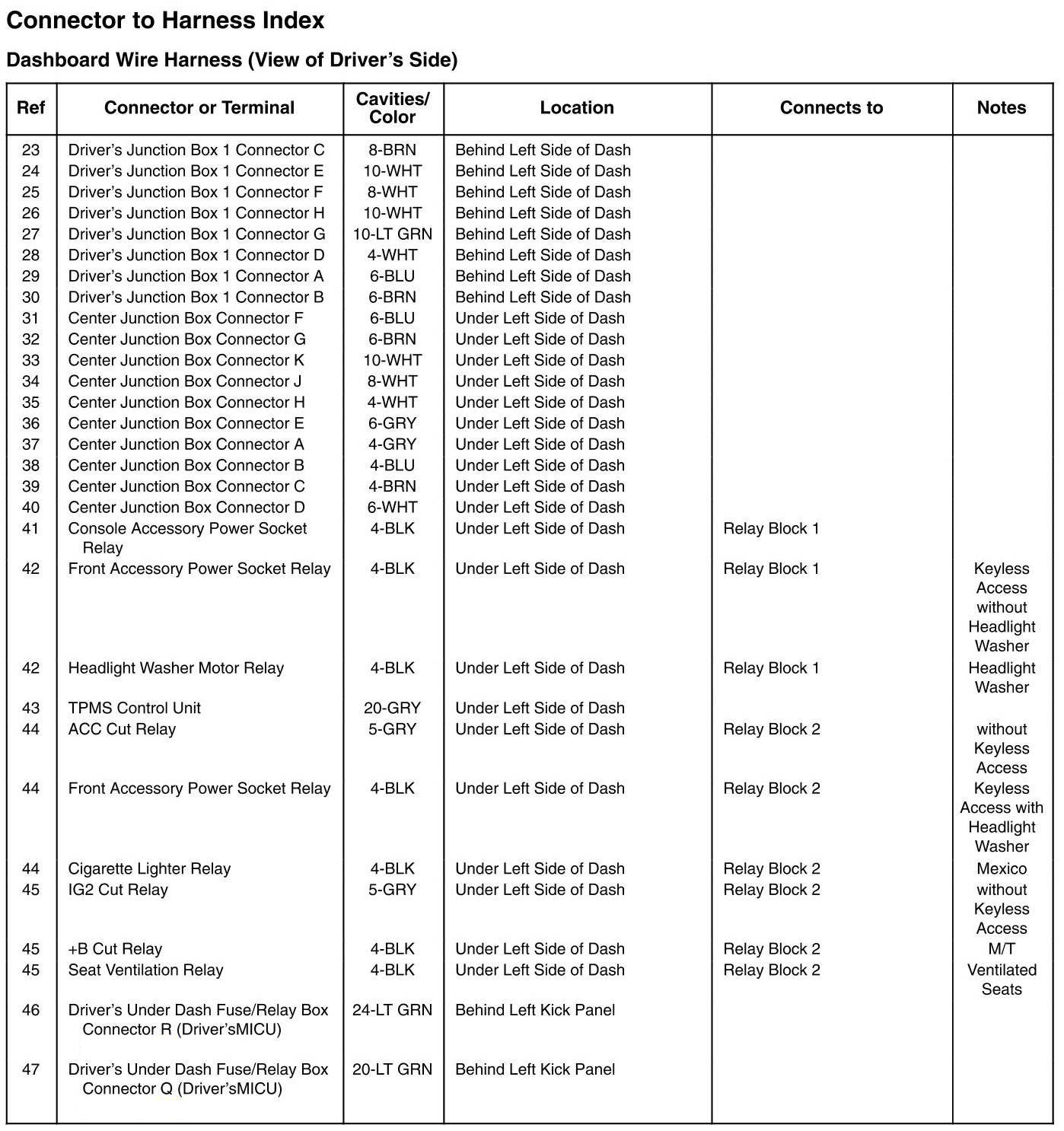

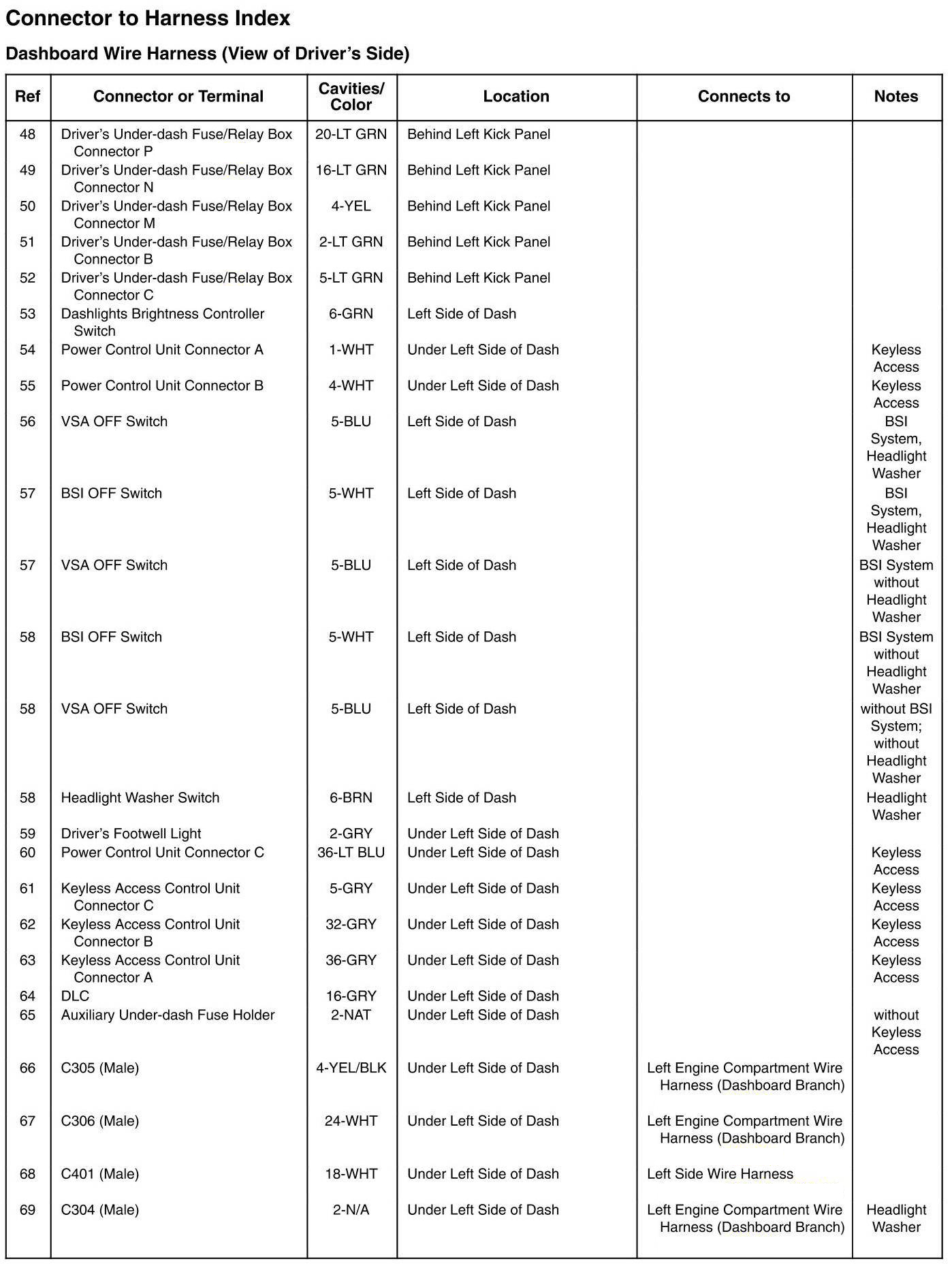

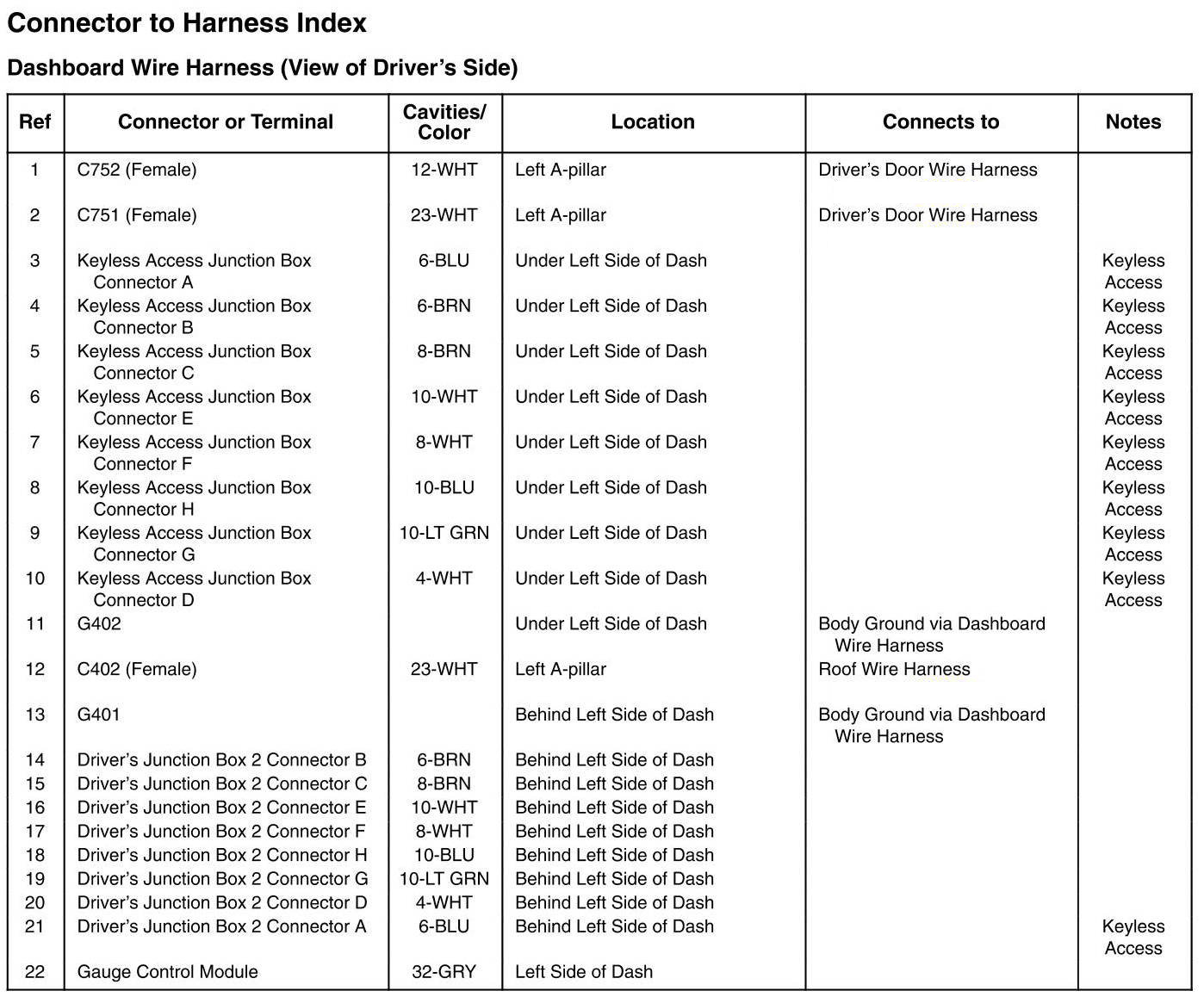

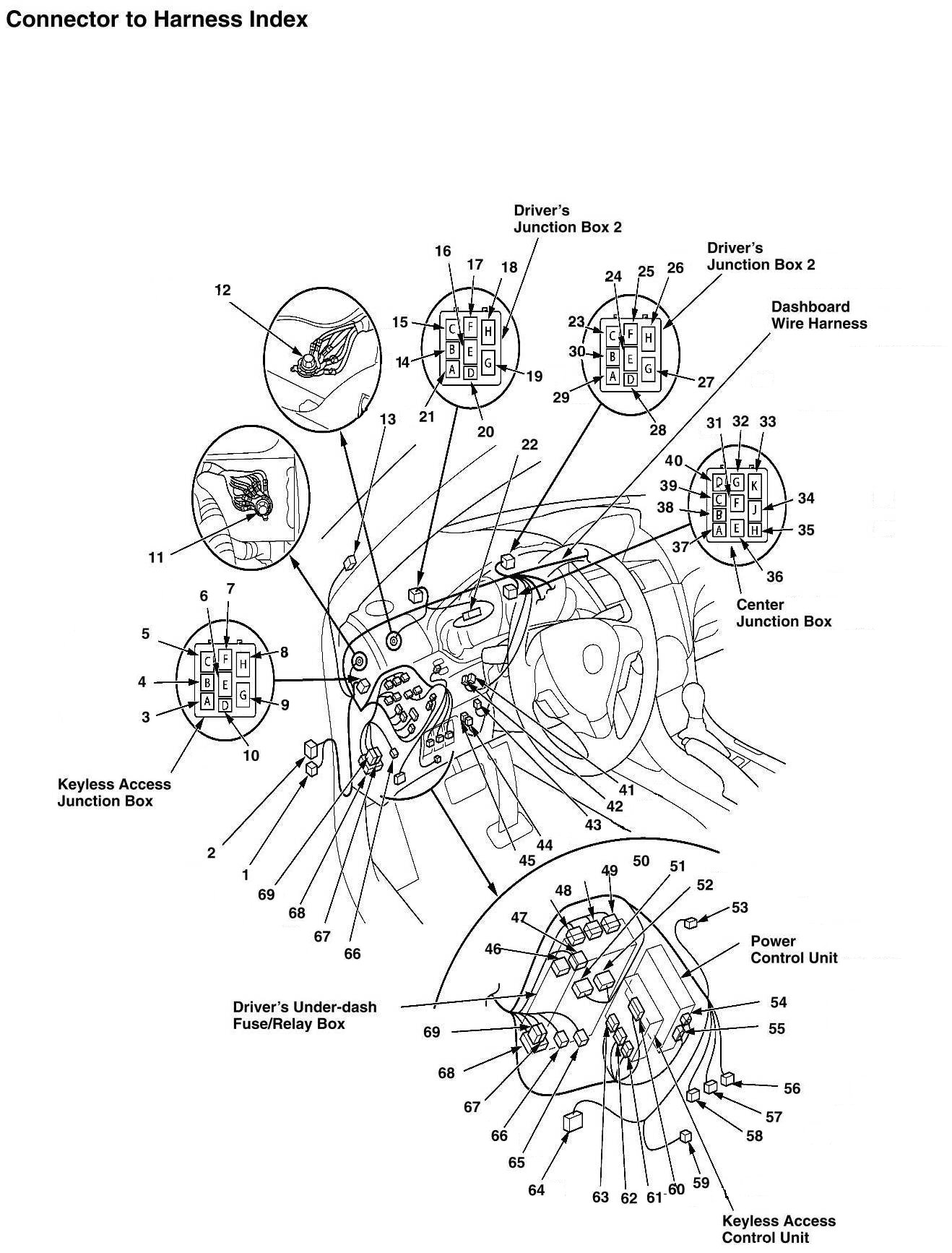

Dashboard Wire Harness (View of Driver's Side) Connector And Harness Locations
Dashboard Wire Harness (View of Driver's Side) Connector And Harness Locations
