Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Battery Ground Cable, Engine Ground Cable, Transmission Ground Cable, And Starter Cable Connector And Harness Locations (A/T)

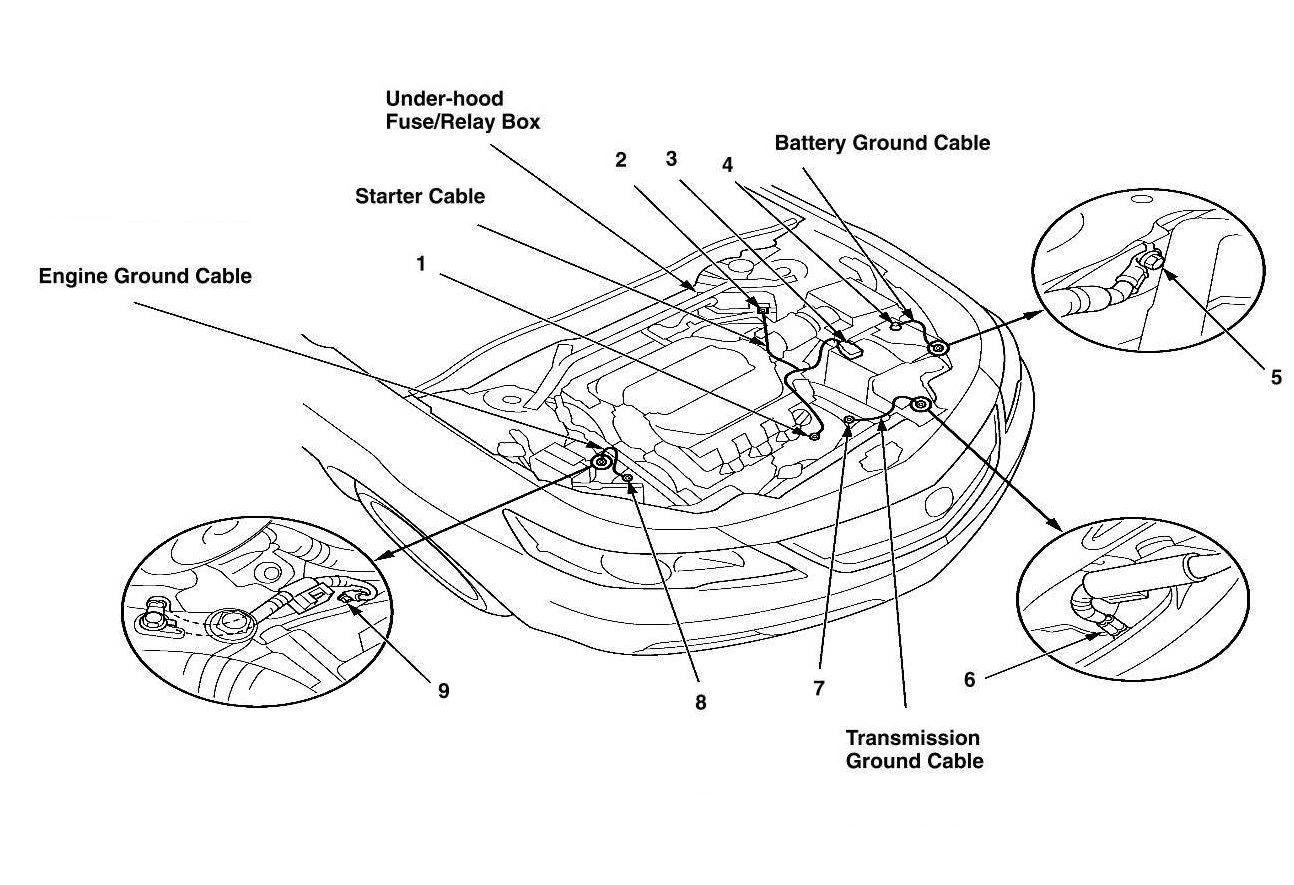

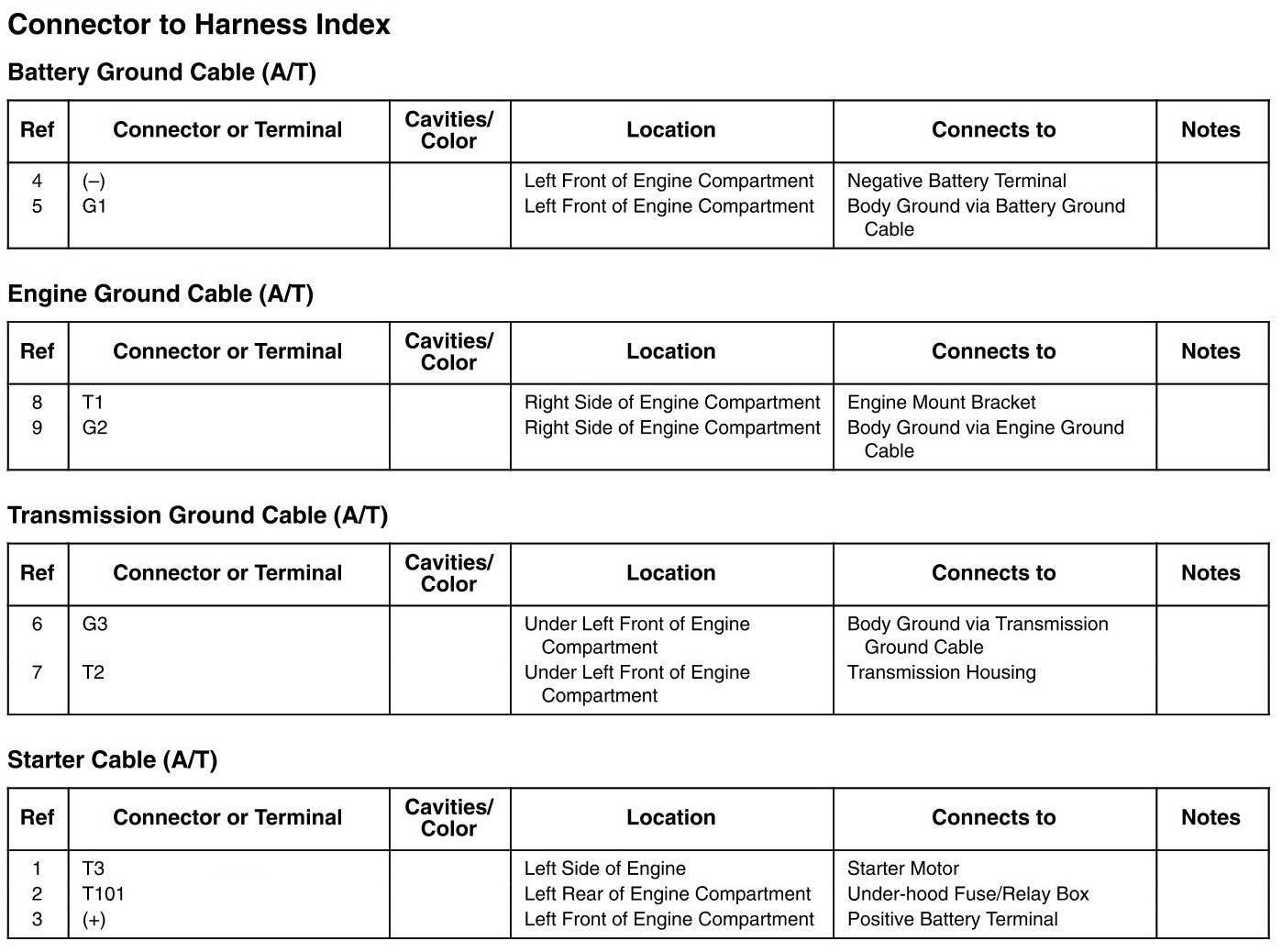

Battery Ground Cable, Engine Ground Cable, Transmission Ground Cable, And Starter Cable Connector And Harness Locations (A/T)
