LEMON Manuals
: Even more car manuals for everyone
Home
>>
Acura
>>
2012
>>
TL AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

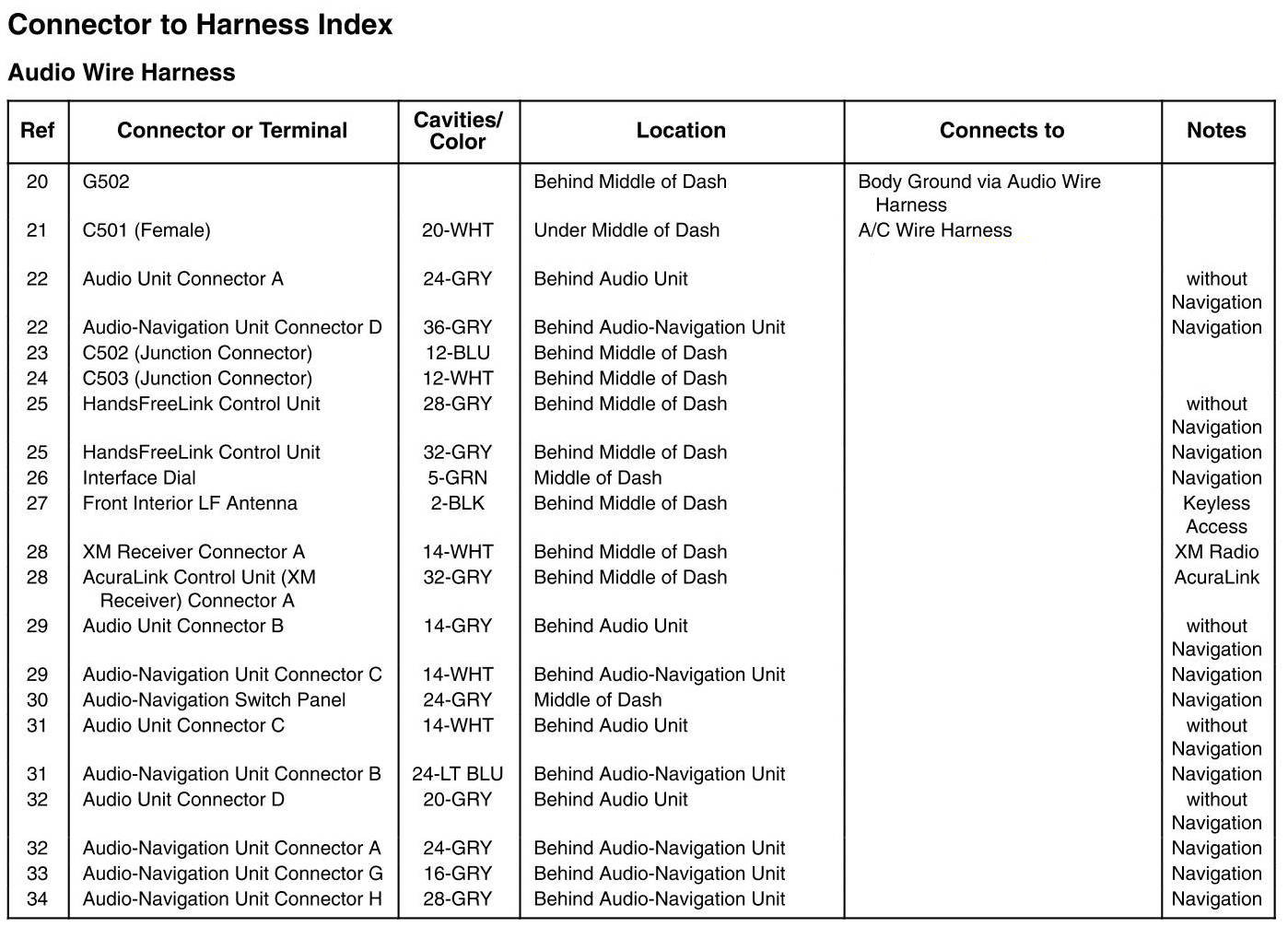

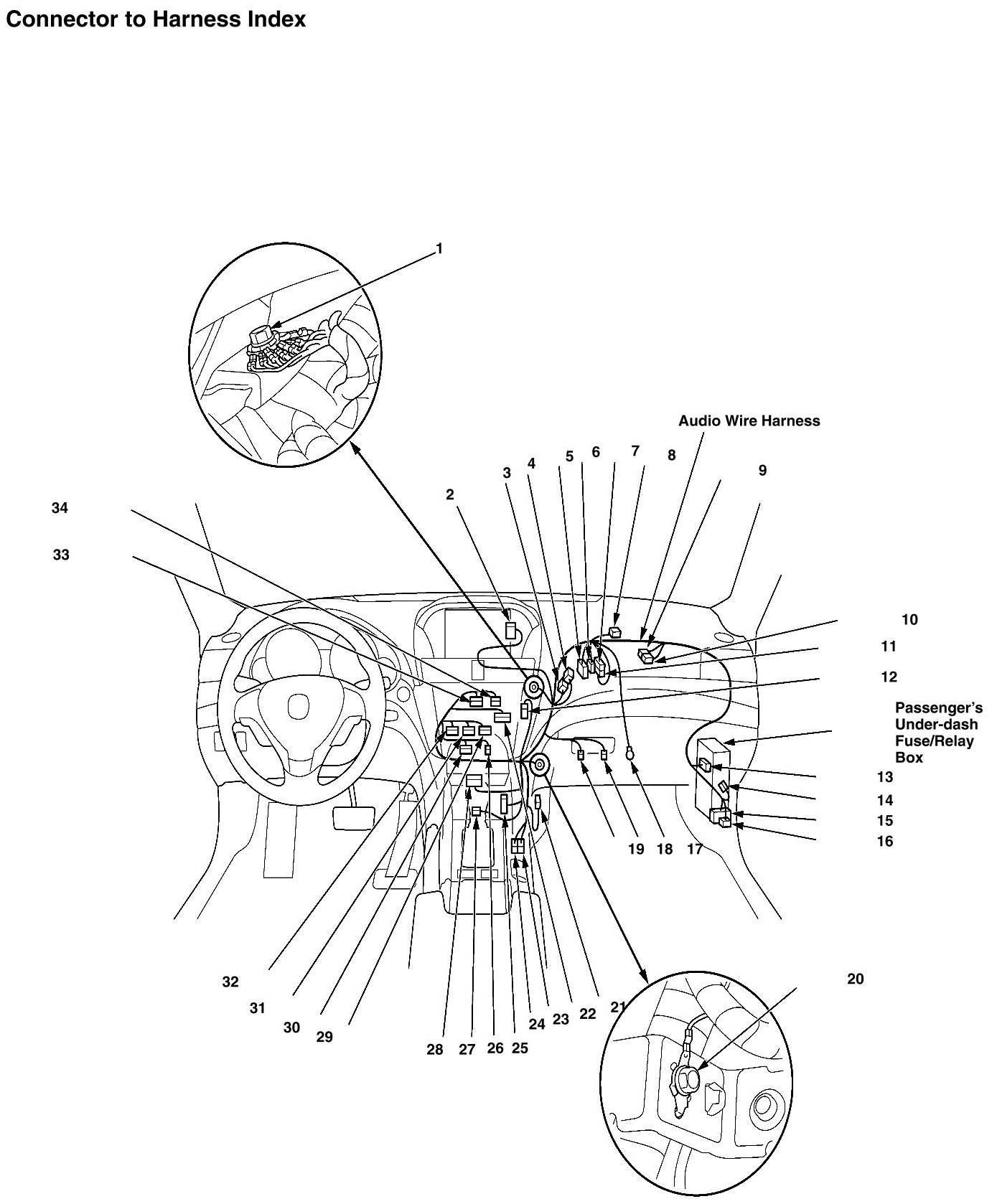

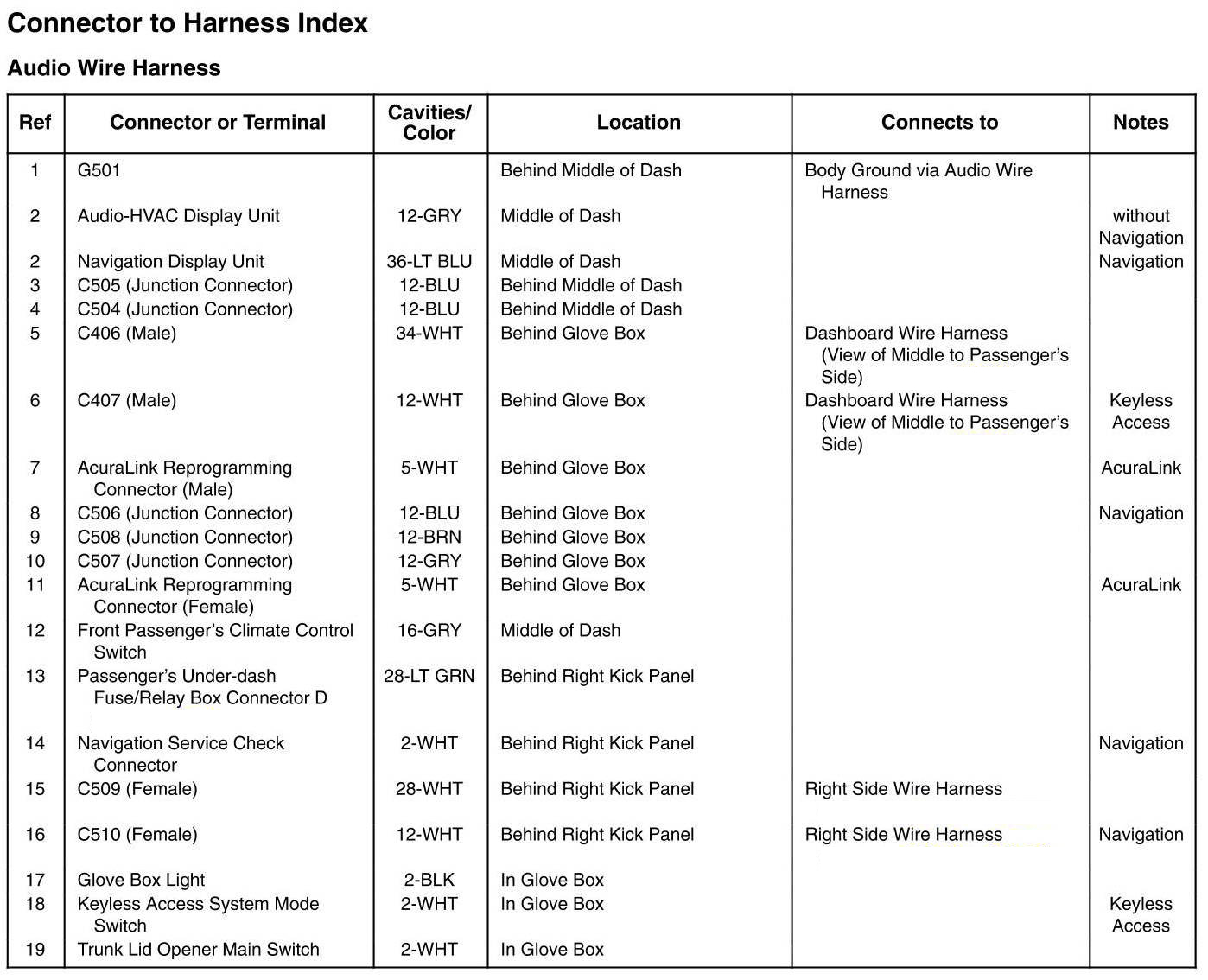

Audio Wire Harness Connector And Harness Locations
Audio Wire Harness Connector And Harness Locations
