Turn Signal Lamp
>>

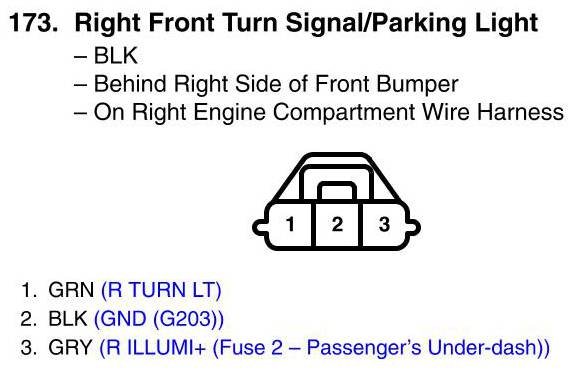

Right Front Turn Signal/Parking Light Connector View
Right Front Turn Signal/Parking Light Connector View
