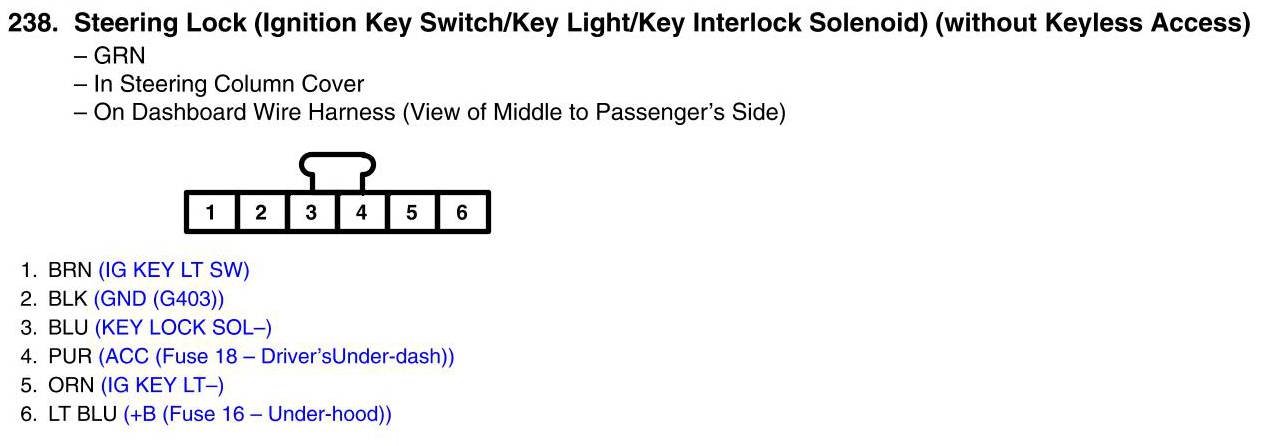

Steering Lock (Ignition Key Switch/Key Light/Key Interlock Solenoid) Connector View (Without Keyless Access)
