Steering Column Lock
>>

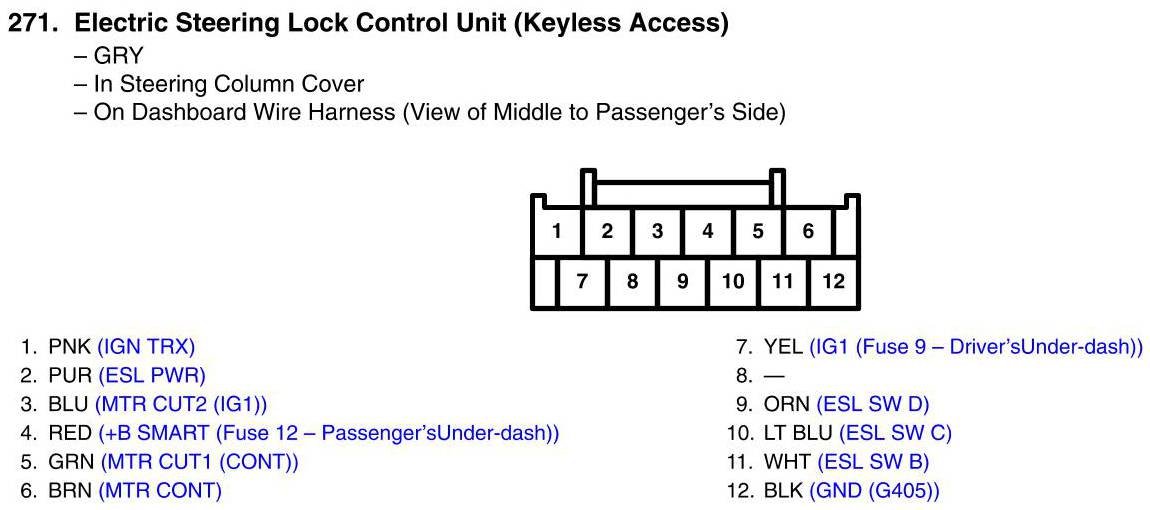

Electric Steering Lock Control Unit Connector View (Keyless Access)
Electric Steering Lock Control Unit Connector View (Keyless Access)
