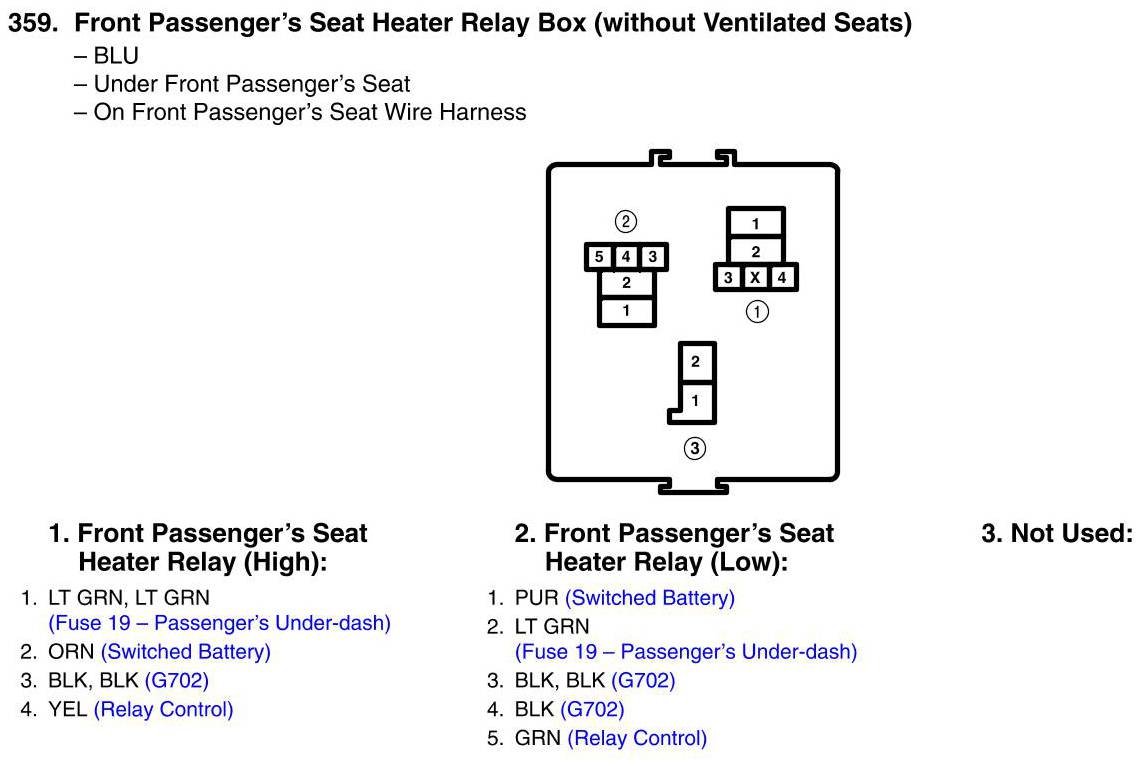

Front Passenger's Seat Heater Relay Box (Without Ventilated Seats) Connector View
Front Passenger's Seat Heater Relay Box (Without Ventilated Seats) Connector View
