Seat Temperature Element
>>

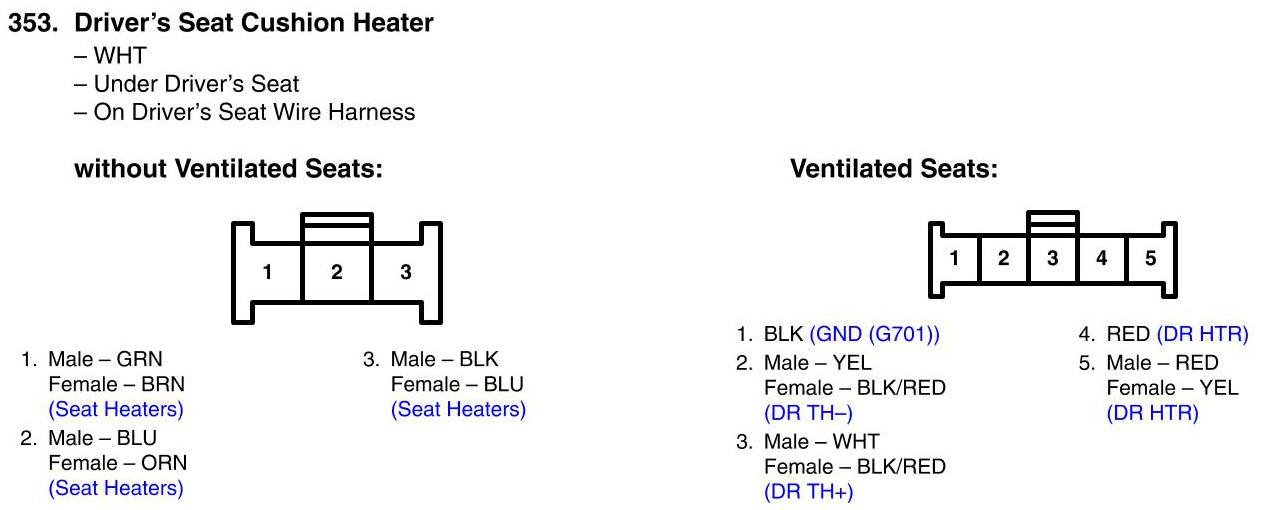

Driver's Seat Cushion Heater Connector View
Driver's Seat Cushion Heater Connector View
