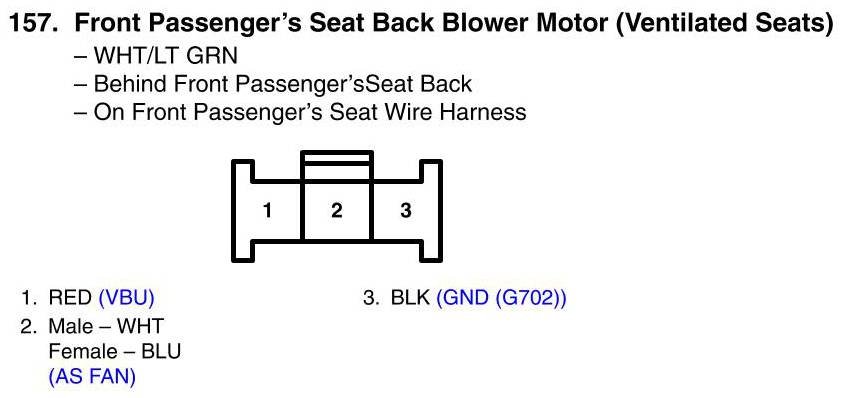

Front Passenger's Seat Back Blower Motor (Ventilated Seats) Connector View
Front Passenger's Seat Back Blower Motor (Ventilated Seats) Connector View
