Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Buckle Switch >> Driver's Seat Belt Buckle Switch Connector View

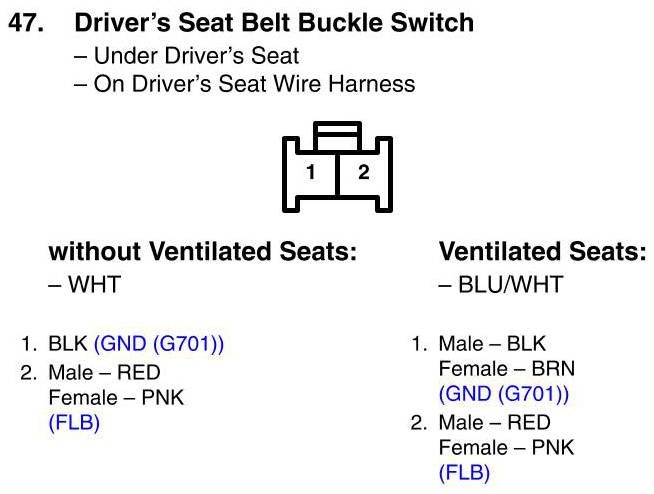

Driver's Seat Belt Buckle Switch Connector View
