Acura
>>
2012
>>
TL AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Remote Switch, Audio - Stereo
>>

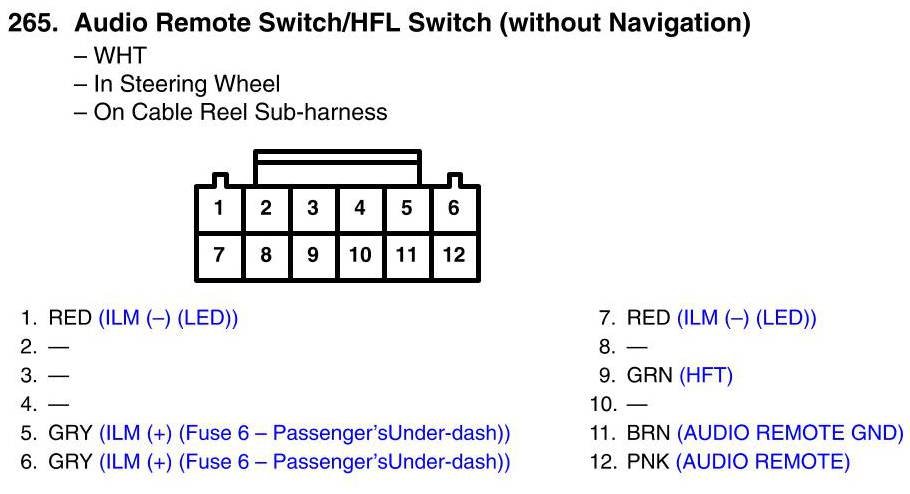

Audio Remote Switch/HFL Switch (Without Navigation) Connector View
Audio Remote Switch/HFL Switch (Without Navigation) Connector View
