Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Oxygen Sensor >> Rear Secondary HO2S (B1, S2) Connector View

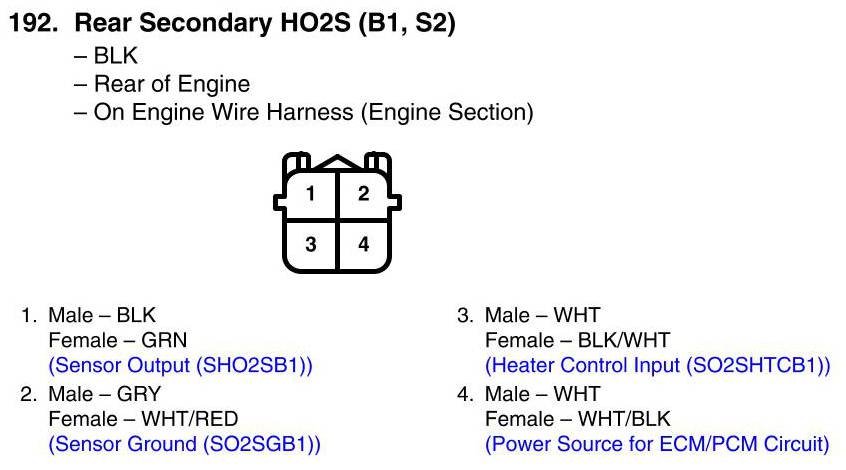

Rear Secondary HO2S (B1, S2) Connector View
