Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Oxygen Sensor >> Front Secondary HO2S (B2, S2) Connector View

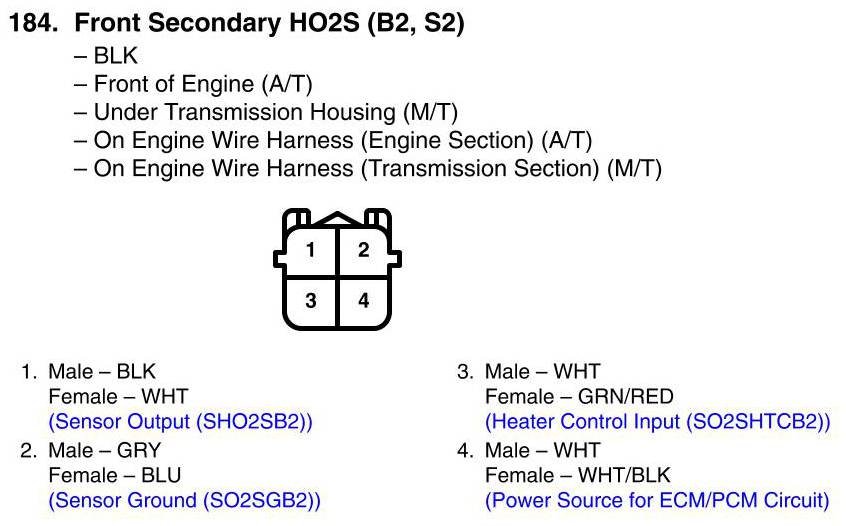

Front Secondary HO2S (B2, S2) Connector View
