Voice Control Switch Test




Voice Control Switch Test

1. Remove the audio remote, HFL-navigation voice control switch Overhaul.

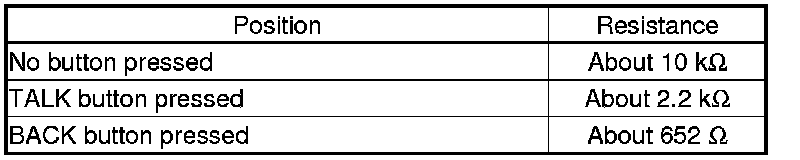

2. Measure the resistance between terminals No. 9 and No. 11 in each switch position according to the table.

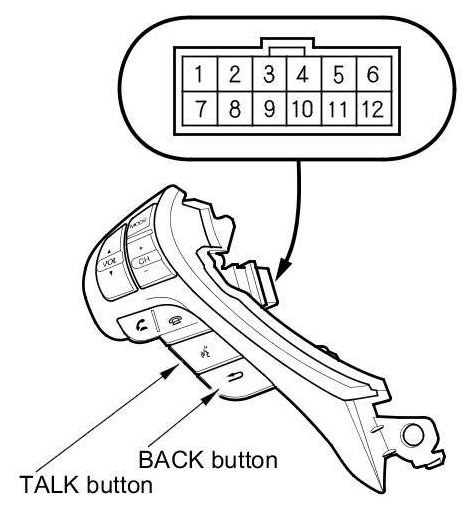

Voice Control Switch









3. In the resistance is not as specified, replace the switch Overhaul.
