Blind Spot Switch: Service and Repair

BSI OFF Switch Test/Removal/Installation

1. Remove the driver's switch panel Dashboard Driver's Switch Panel Removal / Installation.

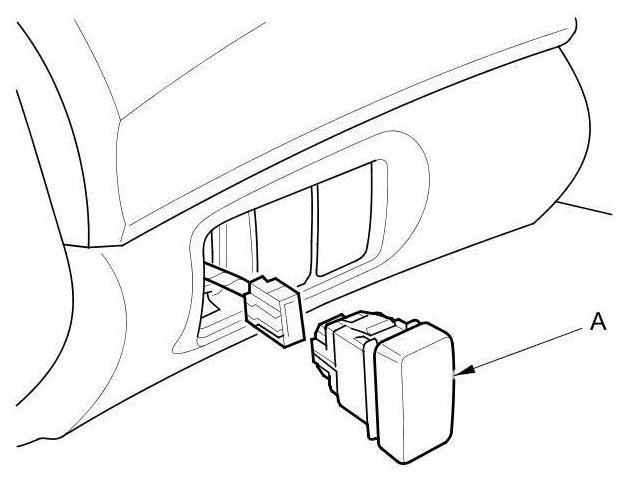

2. Remove the BSI OFF switch (A) from the driver's dashboard lower panel (B).

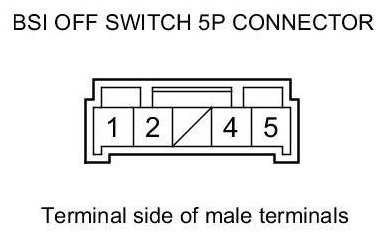

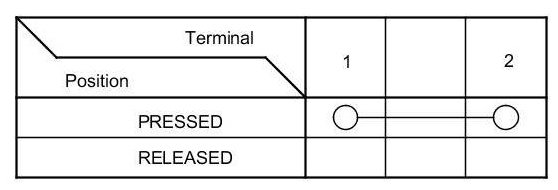

3. On the switch side, check for continuity between the BSI OFF switch 5P connector terminal in each switch position according to the table.










4. If the continuity is not as specified, remove the BSI OFF switch.
